Model NO.:D005004001D
Min. Order:1 Piece
Port:Ningbo, China
Production Capacity:5000sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material Quality:SS304, SS304L ,SS316, SS316L
Availabe Standard:SMS,DIN,AAA,ISO,Idf
Temperature Range:-20degree Celsius~135degree Celsius
Seal Material:Silicone, EPDM, Viton, NBR
Mesh Size&Microns:3-400mesh&6730-37microns
Pressure Range:1.5~3bar
HS Code:8481804090
Trademark:XUSHENG
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D005004001D
StructureStaringht Type,Angle Type,Y Type
Availabe ConnectionWelding Ends,Triclamp Ends,Union Ends,Male Ends
ApplicationMilk,Juice,Beer,Beverage,Pharmacy,Ect
HS Code8481804090
TrademarkXUSHENG
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China

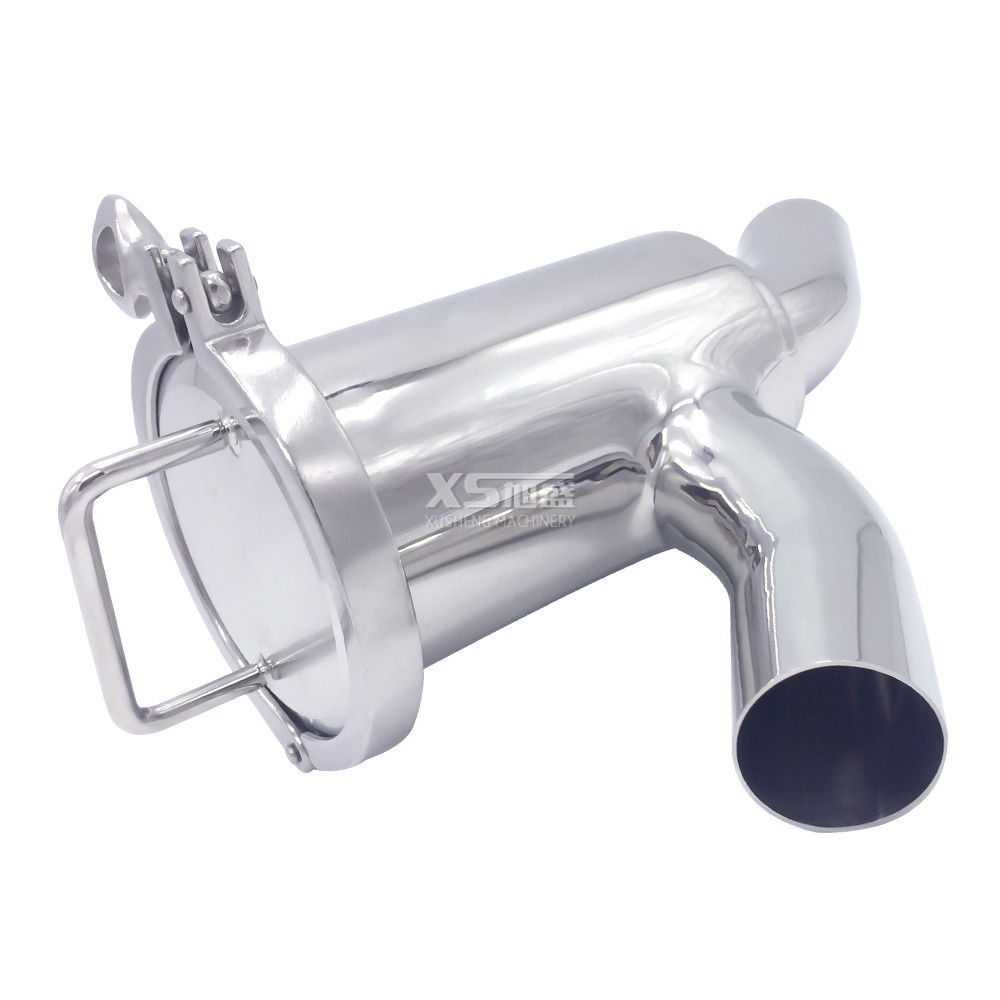

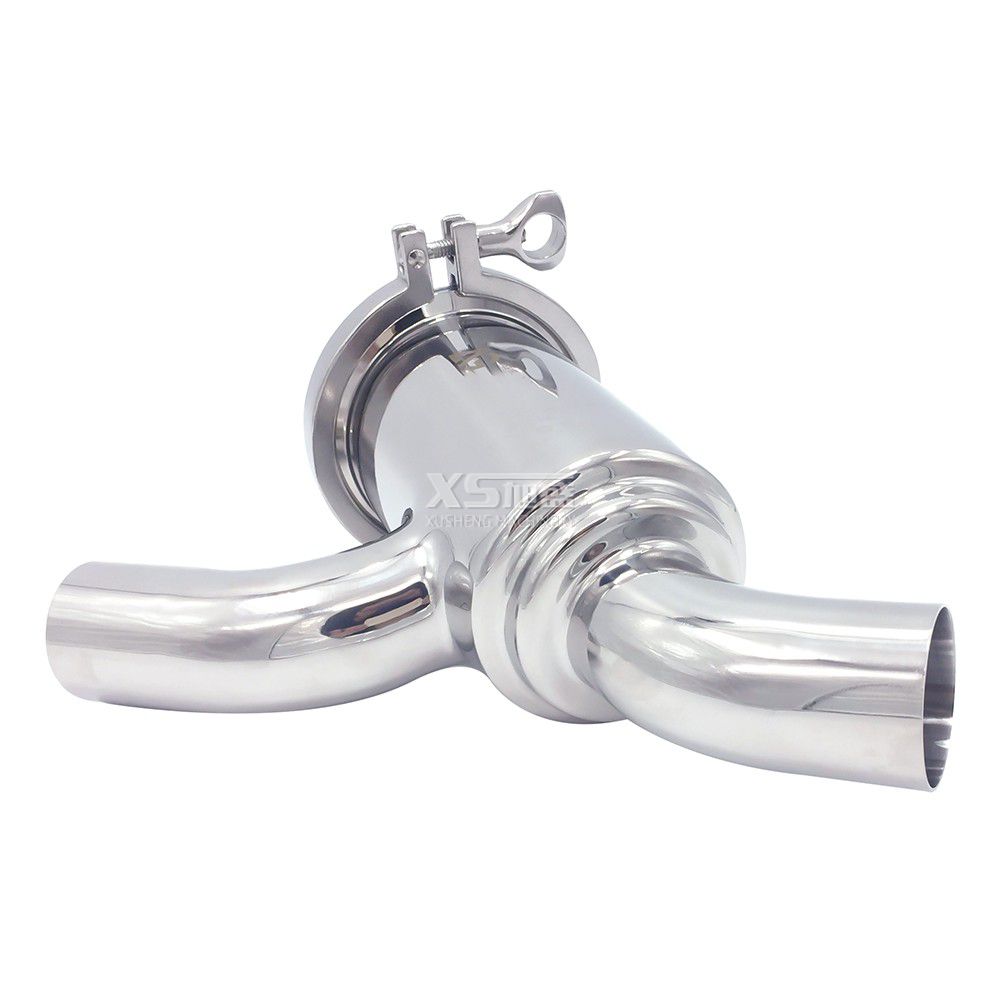

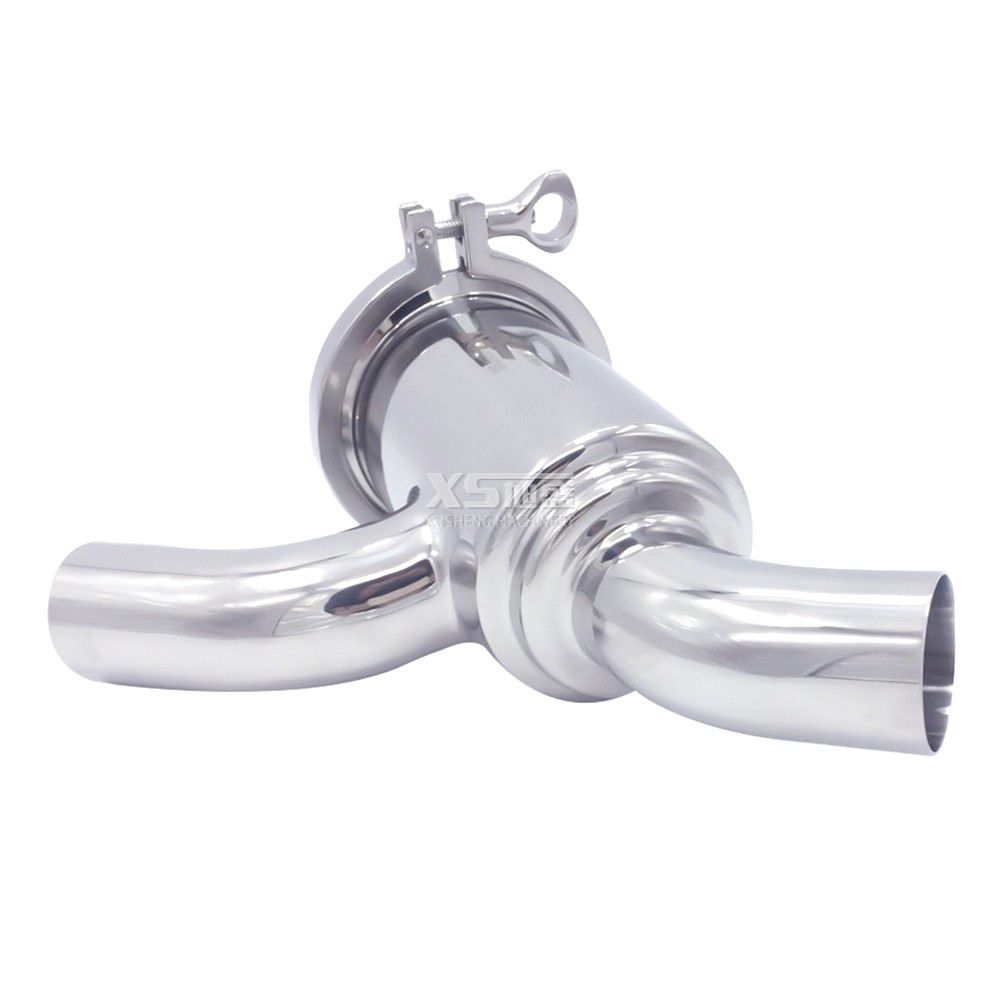

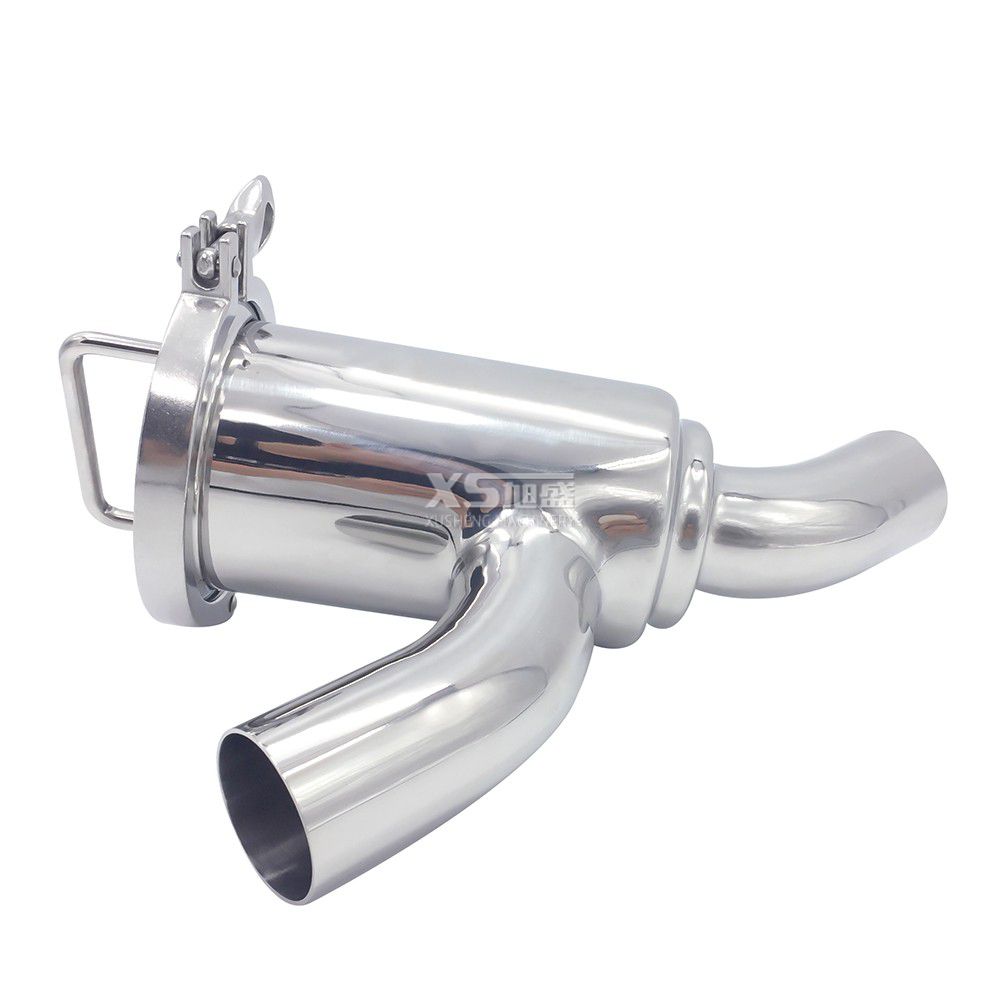

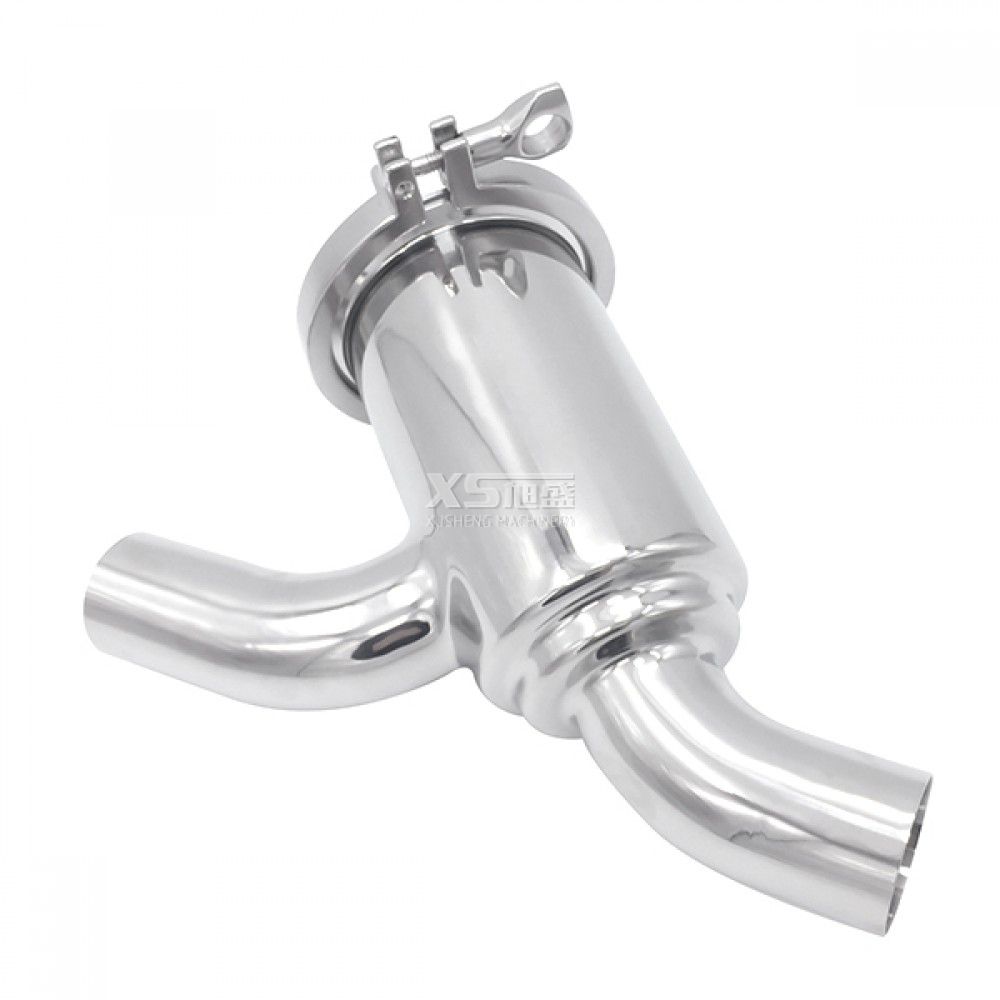

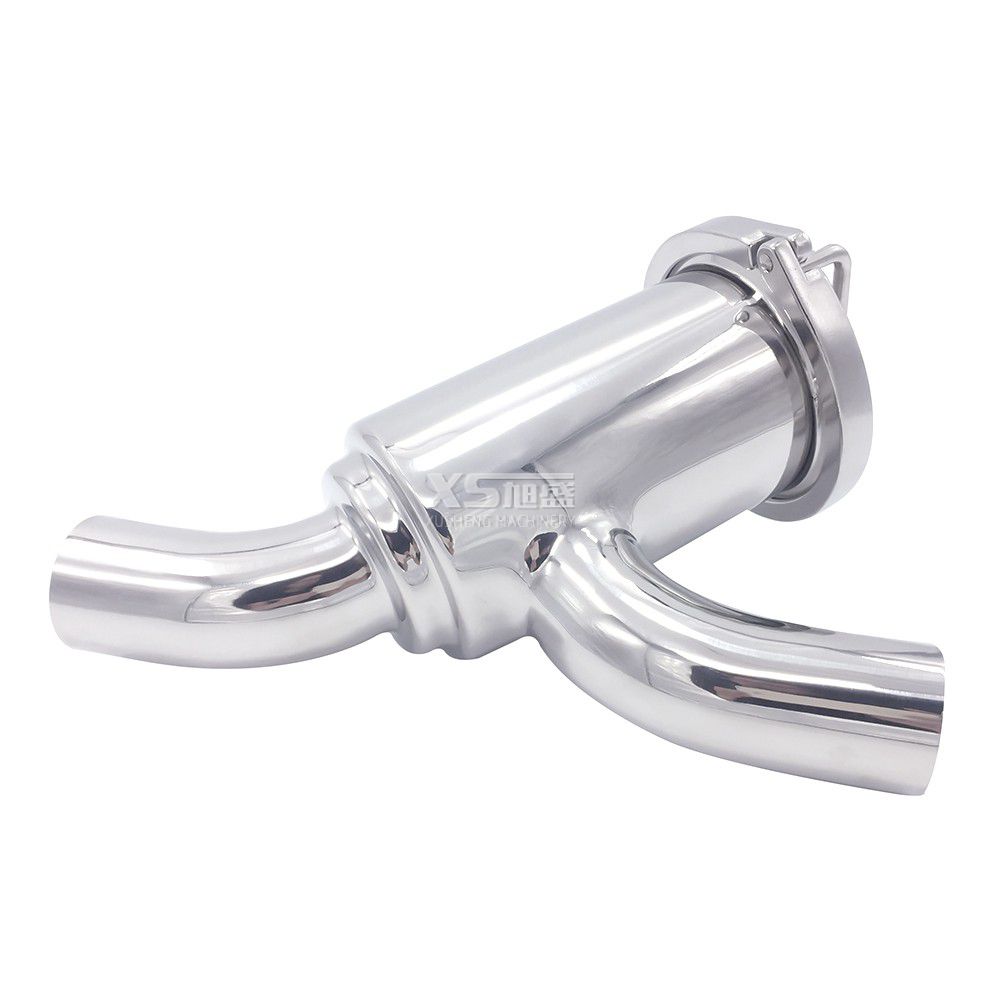

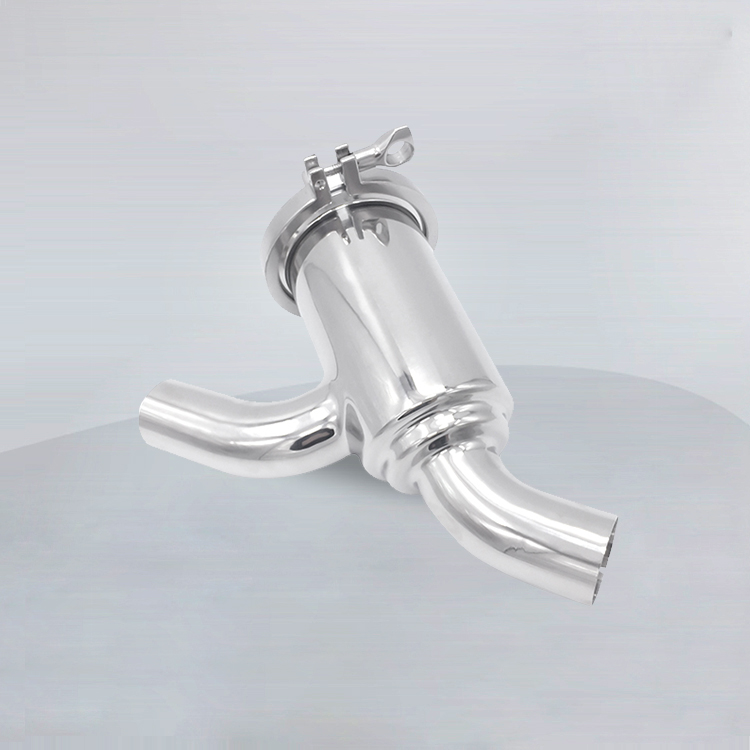

Product name:Stainless Steel Sanitary 90 Bend Type No Retention Filter
Hygienic Butt-Weld Y Filter Stainer
Stainless Steel Sanitary Butt-Weld Y Filter Stainer
Technical Parameter
| Availably standard | SMS,DIN,AAA,ISO,IDF |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Specification | 1"-4",DN25-DN100,25.4mm-101.6mm |
| Availabe Connection | Welding ends,triclamp ends,union ends,male ends |
| Seal Material | Silicone, EPDM, Viton, NBR |
| Mesh Size&Microns | 3-400mesh&6730-37microns |
| Structure | Staringht type,Angle type,Y type |
| Pressure range | 0bar~10bar |
| Machine Processing | The most advanced CNC machine from Japan for processing |
| Continuous working temperature | 20°C ~ +135°C (EPDM,Silicone) |
| Special Design | we can produce according to your drawings |
Applications
Sanitary filter is mainly appled to protect pumps,instruments,and other device to work regularly.It features compact structure,strong filtering ability,less pressure loss,conveninent maintenance,and is widely used in beverage,pharmacy,dairy and other fields.
MESH TO MICRON CONVERSION CHART
| U.S. MESH | INCHES | MICRONS | MILLIMETERS |
| 3 | 0.2650 | 6730 | 6.730 |
| 4 | 0.1870 | 4760 | 4.760 |
| 5 | 0.1570 | 4000 | 4.000 |
| 6 | 0.1320 | 3360 | 3.360 |
| 7 | 0.1110 | 2830 | 2.830 |
| 8 | 0.0937 | 2380 | 2.380 |
| 10 | 0.0787 | 2000 | 2.000 |
| 12 | 0.0661 | 1680 | 1.680 |
| 14 | 0.0555 | 1410 | 1.410 |
| 16 | 0.0469 | 1190 | 1.190 |
| 18 | 0.0394 | 1000 | 1.000 |
| 20 | 0.0331 | 841 | 0.841 |
| 25 | 0.0280 | 707 | 0.707 |
| 30 | 0.0232 | 595 | 0.595 |
| 35 | 0.0197 | 500 | 0.500 |
| 40 | 0.0165 | 400 | 0.400 |
| 45 | 0.0138 | 354 | 0.354 |
| 50 | 0.0117 | 297 | 0.297 |
| 60 | 0.0098 | 250 | 0.250 |
| 70 | 0.0083 | 210 | 0.210 |
| 80 | 0.0070 | 177 | 0.177 |
| 100 | 0.0059 | 149 | 0.149 |
| 120 | 0.0049 | 125 | 0.125 |
| 140 | 0.0041 | 105 | 0.105 |
| 170 | 0.0035 | 88 | 0.088 |
| 200 | 0.0029 | 74 | 0.074 |
| 230 | 0.0024 | 63 | 0.063 |
| 270 | 0.0021 | 53 | 0.053 |
| 325 | 0.0017 | 44 | 0.044 |
| 400 | 0.0015 | 37 | 0.037 |
Parts Name of Sanitary Filter
| 01 | Clamp,Union,Nut |
| 02 | Outlet Assembly |
| 03 | Gasket:Silicone, EPDM, Viton, NBR |
| 04 | Perforated Core |
| 05 | Distributor Core |
| 06 | Filter Body:Short One,Long One |
Advantage of products
| 1. | Each kind of products has strong corrosion resistance and over-long service liftime |
| 2. | Xusheng accessories are easy to be installed |
| 3. | Problem-free welding and assembly and highest possible strenghth |
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
