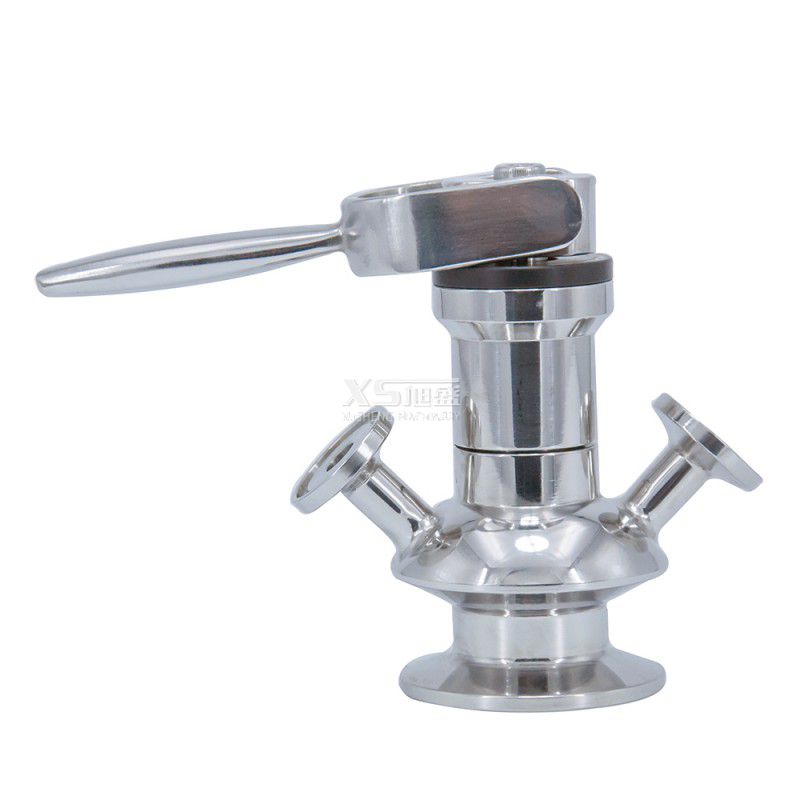

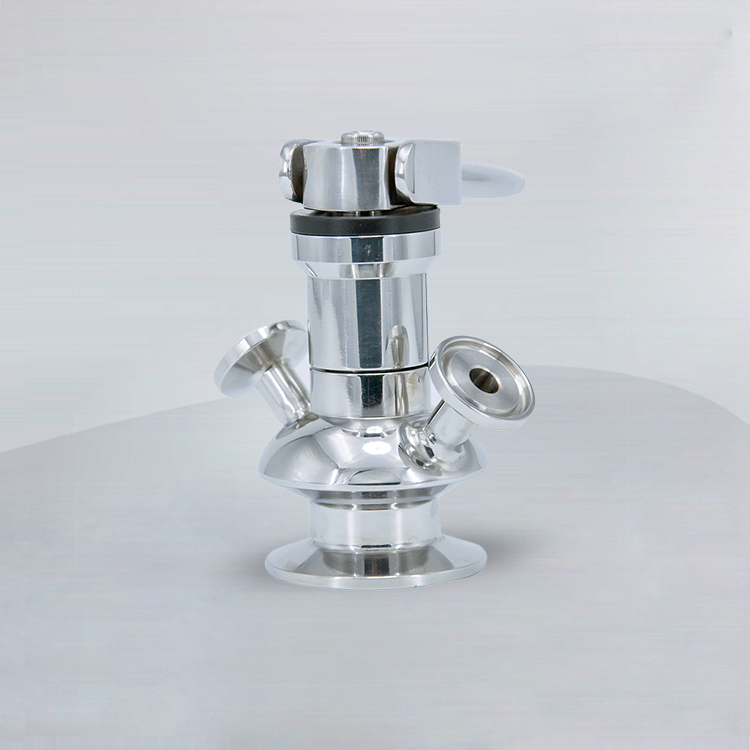

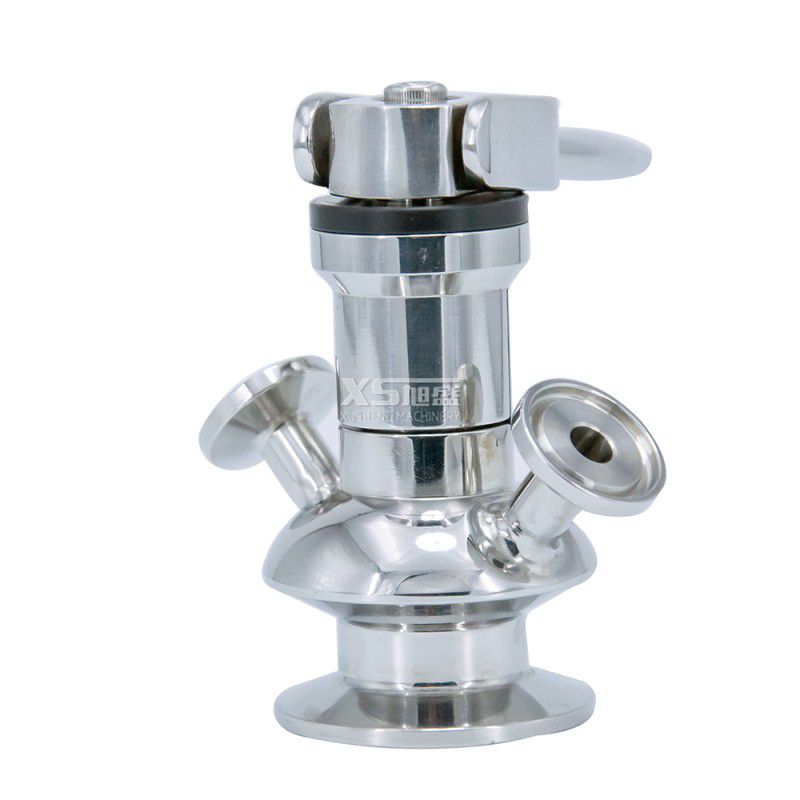

Stainless Steel SS316L Manual Aseptic Sampling Valve with PTFE Gaskets
Model NO. D001003007D
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 5000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material Quality 304, 304L, 316L (1.4301, 1.4307, 1.4404)
Connection Ends Threaded Triclamp, Welded
Size 1/2", 3/4"
Gasket EPDM, Silicone, PTFE in Accordance with FDA 17
Max. Pressure 10bar 145psi
Temperature 20degree Celsius~135degree Celsius
TAG Hygienic Stainless Steel Manual Sampling Valve Stainless Steel Sampling Cock Valve Stainless Steel Food Grade Sampling Valve Food Grade Aseptic Sampling Valve Hygienic Manual Sampling Valve Hygienic Stainless Steel Manual Aseptic Clamp Sampling Valve
Inquiry
Basic Info

    Model NO. : D001003007D

    Pressure : Medium Pressure

    Power : Pneumatic

    Temperature of Media : Nomal Temperature

    Media : Water, Juice, Milk, Beer, Pharmaceutical

    HS Code : 8481804090

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

Products Name:Stainless Steel SS316L Manual Aseptic Sampling Valve With PTFE Gaskets

Stainless Steel SS316L Manual Aseptic Sampling Valve
Sampling Valve wiith PTFE gaskets



Technical Parameter

Material of Product Wetted  316L (DIN-1.4404)
Material of Non-product Wetted  304 (DIN-1.4301)
Seal material PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2)
All seal materials comply with FDA 177.2600.
Continuous working temperature  -20oC +135oC (EPDM)
Sterilization temperature  150oC (Max 20min)
Working pressure  0~10bar
Internal surface  Ra0.8μm
External surface  Shot blasting
Size 1/2" 3/4"

Product application

Applications

Its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.

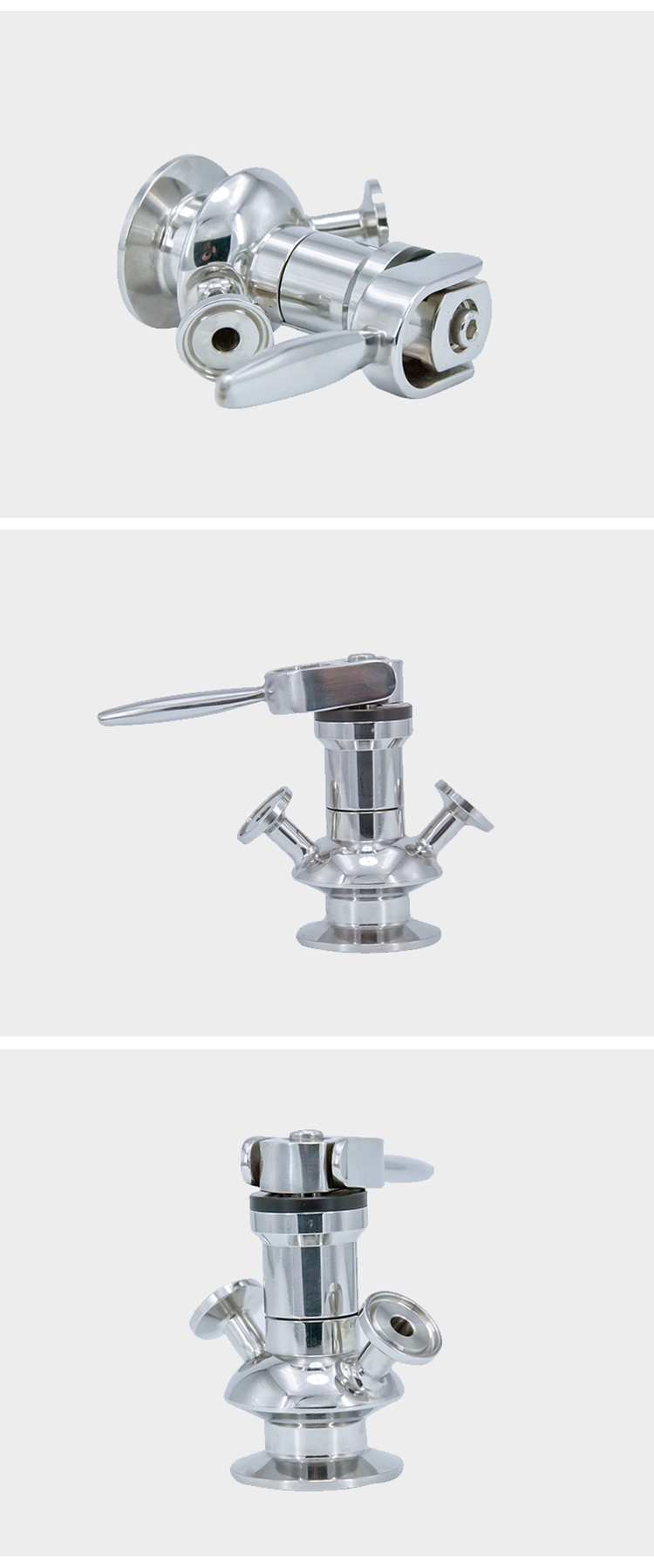

Aseptic sampling valve has two configurations

1. Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.
2. Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available.



Feature

1. 304 stainless steel,316L stainless steel
2. Silicone O-ring plus plunger to assure a leak proof connection
3. Surface finish polish to sanitary standards
4. Recommended usage in wineries
5. End connections available: clamp and NPT
6. Sizes available: 1" clamp and 3/8" NPT





Comyany information

Packaging Shipping

Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  to order our products

We specialize in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer, pharmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services. Welcome to visit our factory.
