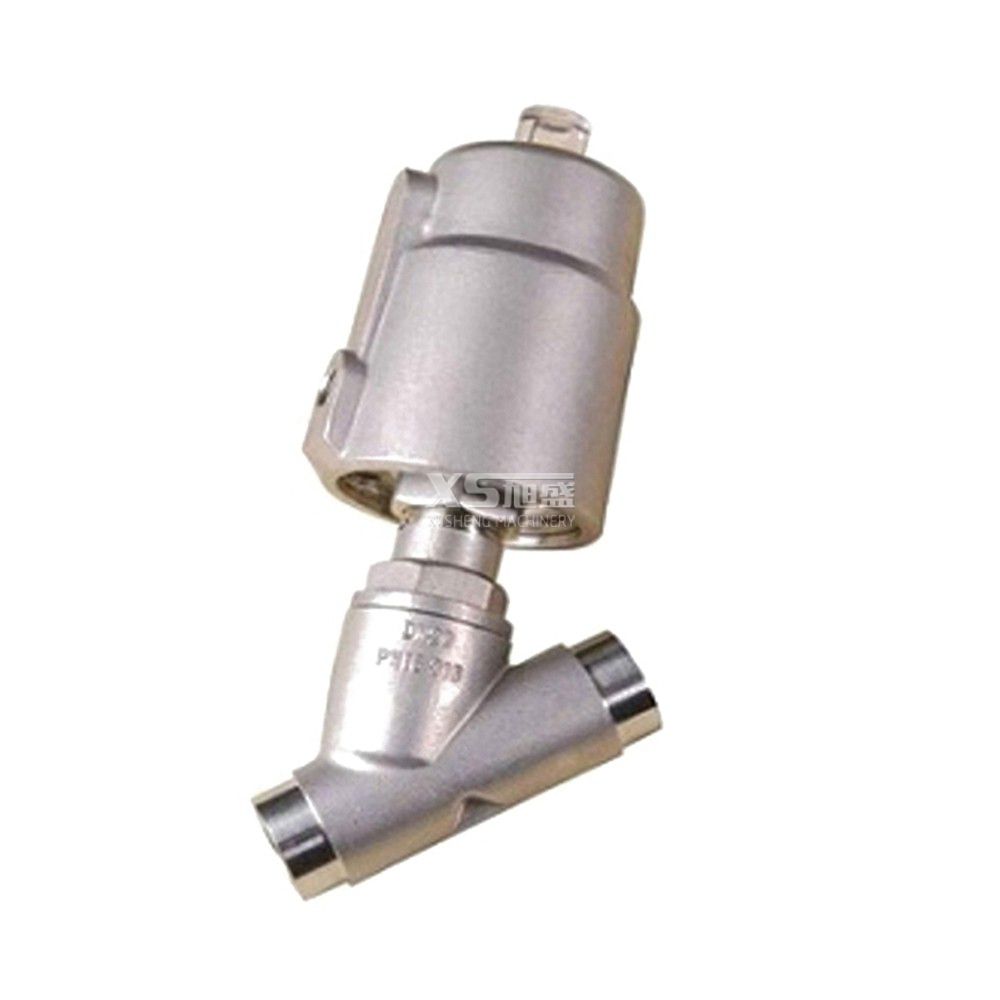

Pneumatical Welding Angle Seat Valve With Stainless Steel Actuator

Model NO.:D001012003D

Purchase Qty. / Reference FOB Price

1 PieceUS $21-69 / Piece

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:5000pieces/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material:Stainless Steel

Valve Plug:Stainless Steel

Connection Form:Clamped,Welding,Thread

Open Manner:Quick-Opening

Size:1/2"-2 1/2", Dn10-Dn65

Usage:Sanitary Ware, Heating Pipeline

HS Code:8481804090


Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001012003D


    Service Life:>3 Years

    Available ConnectionThread, Clamp, Flange, NPT, Bsp, etc.

    Body MaterialSs304, Ss316L

    Working Pressure0-8bar, 10bar (Optional)

    Working Temperature-20- 120centigrade, 180 Centigrade (Optional)


    Seal of Stem and BodyPTFE

    Driving ModePneumatic, Manual

    Enviroment Temperature-10 to 60 Degree Celsius

    Applicable MediumWater,Liquid ,Natural Gas ,Water Steam, etc.

    HS Code8481804090


    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

    Product name:Product name:Pneumatical Welding Angle Seat Valve With Stainless Steel Actuator

    Stainless Steel Welding Angle Seat Valve With Stainless Steel Actuator
    Hygienic Angle Seat Valve With Stainless Steel Actuator


    Technical Parameter

    Body Material 304, 316L
    Size 1/2"-2 1/2", DN10-DN65
    Way of Connection Thread, Clamp, Flange, etc.
    Applicable Medium Water,Liquid ,Natural Gas ,Water Steam, etc.
    Working Pressure 0-8bar, 10bar (optional)
    Working Temperature -20- 120centigrade, 180 centigrade (optional)
    Driving Mode  Pneumatic or Manual



    Angle seat valve keep the flow speed and can save the space, it adopt oriented angle seat valve which have spring safety protective single function pneumatic actuator for operated.
    When use, should choose normally open or close. The product is made of steel and PTFE, it can use to the majority gas, fluid, steam and causticity occasion. It have radiator to the actuator, ensure can use longer.



    1. It have valve open or close position display.
    2. Pneumatic guide outside, can prolong the service life, maintenance free.
    3. IT have self-regulation sealing gland between overfall and slider, can improve sealing property.
    4. The structure of angel seat valve body, can achievable mass flow(especially compare with normal stop valve), compact structure response is fast.

    Product application



    Control gas: Neutral gas, air control liquid, automation industry control fluid, foodstuff dairy industry, domestic water, common pipeline fluid medium and so on. The angle seat valve is extensively use to frequently start in short time, with feature of response delicacy and exact action.
