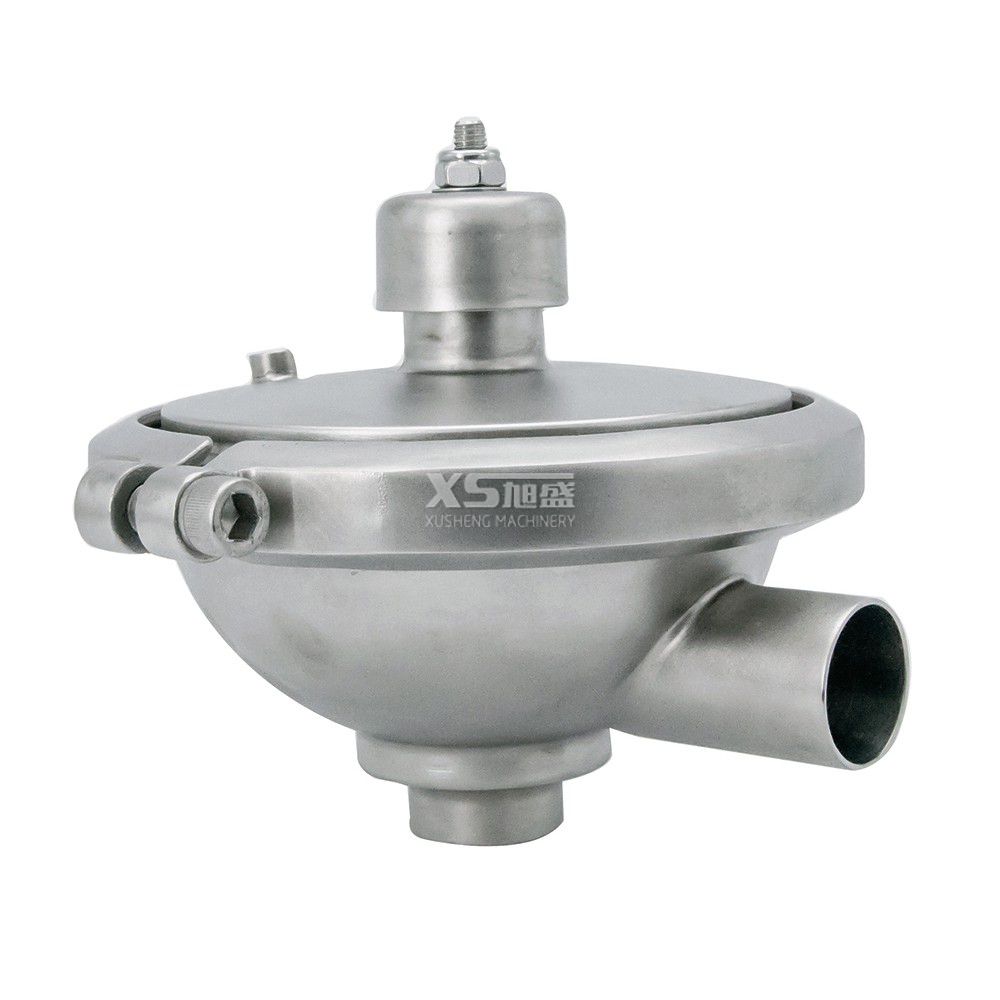

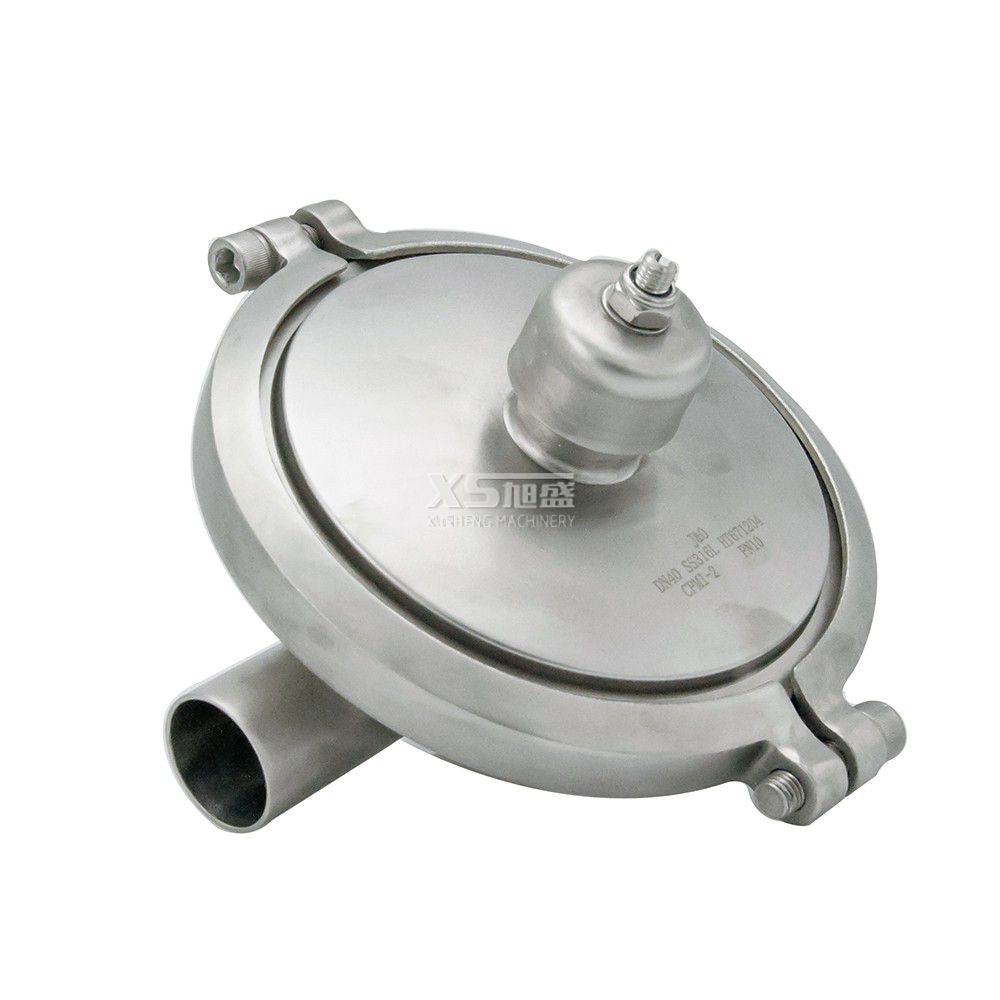

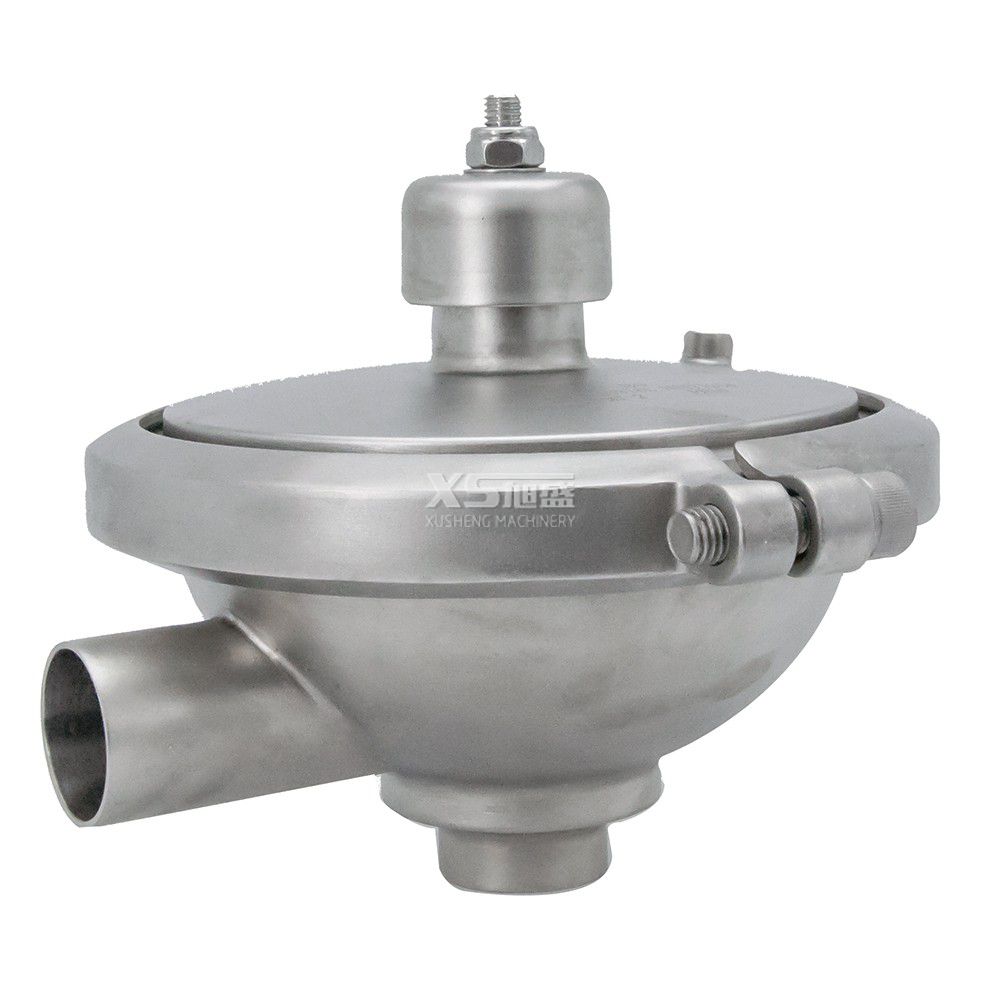

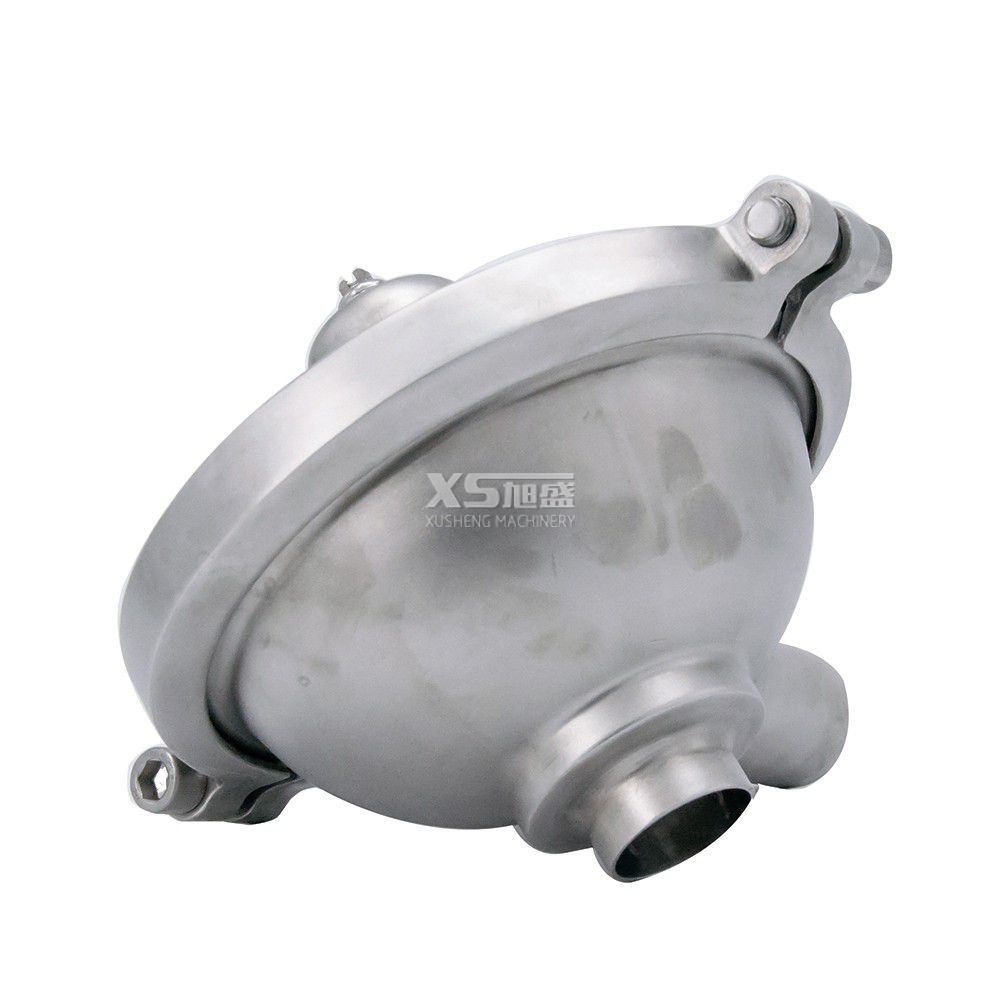

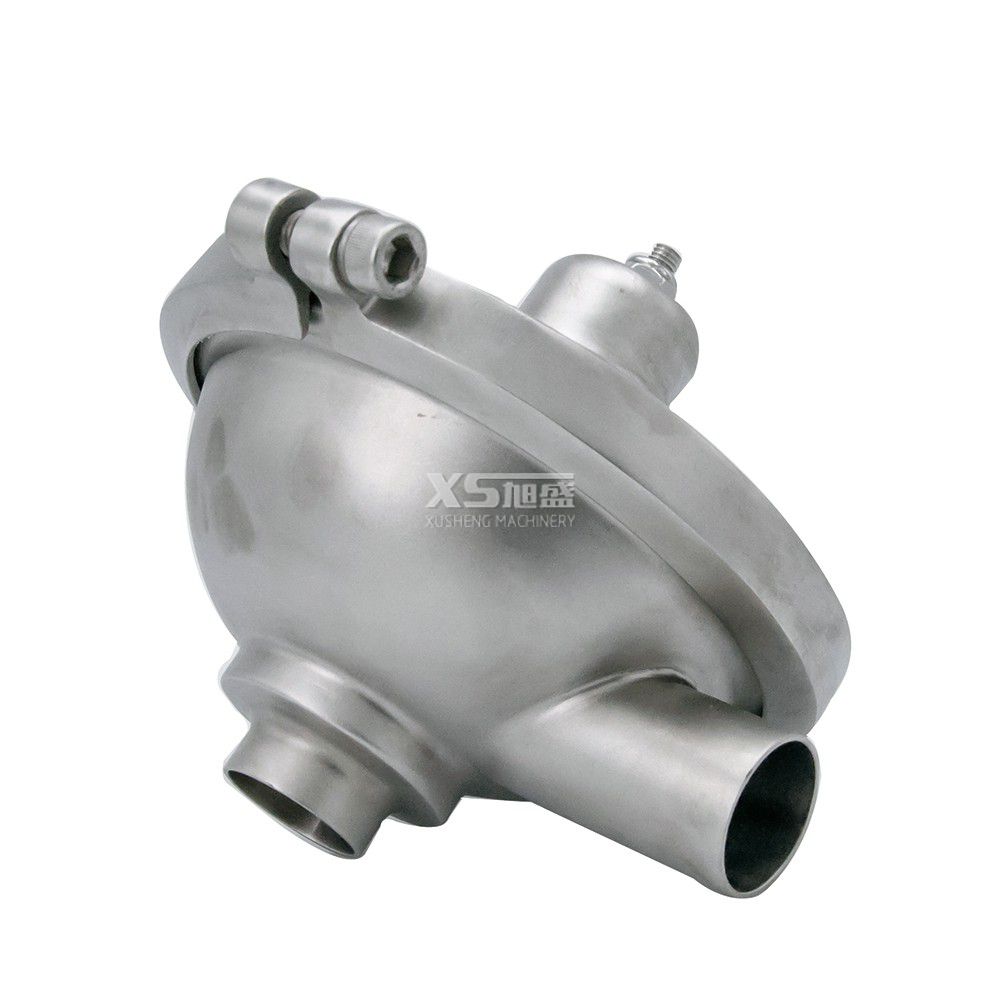

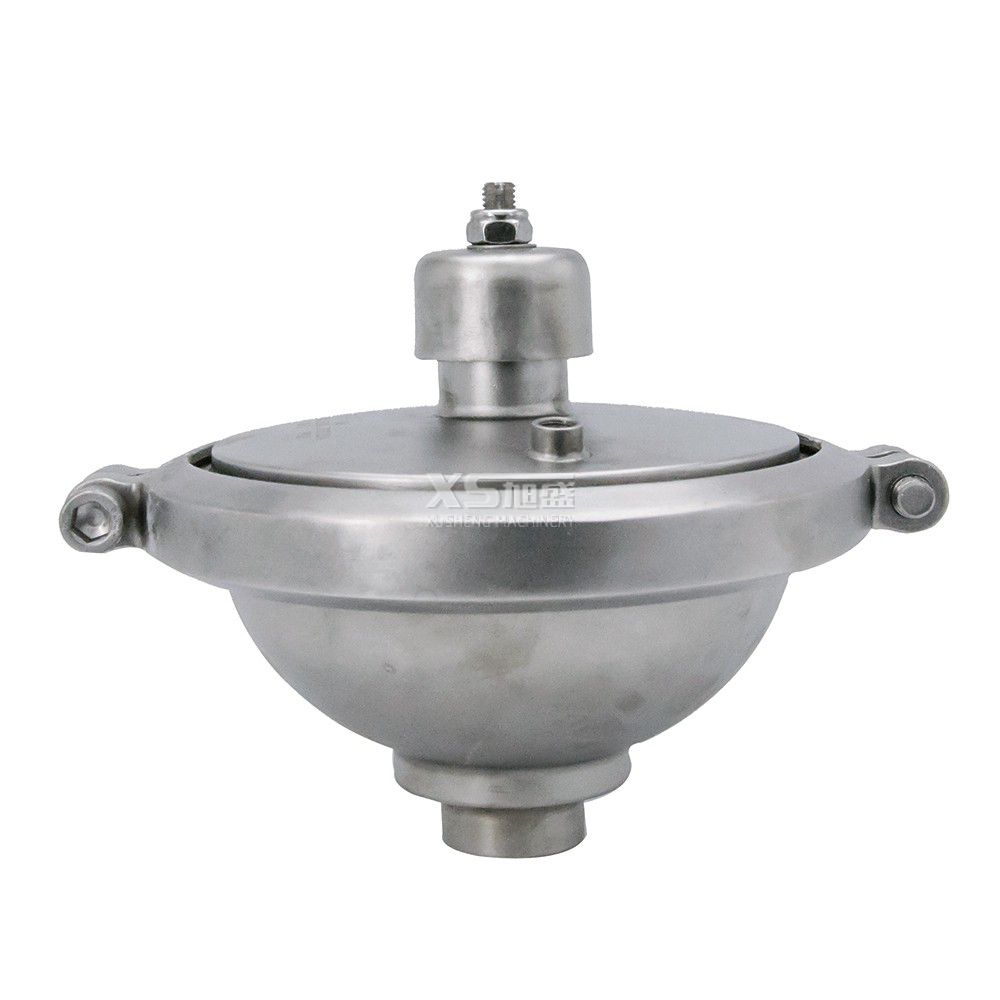

Stainless Steel Sanitary Constant Pressure Valves

Model NO.:D001009001D

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:1000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material Pressure:10bar

Temperature Range:-10 Celsius Degree-+150 Celsius Degree

Compressed Air Pressure:0~8bar

Max Particle Size:0.01mm

Max Oil Content:0.08ppm

Dew Point:Atmospheric Temperature 10 Celsius Degree or Low

HS Code:8481804090

Trademark:XUSHENG

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001009001D

    Max Water Content7.5g/Kg

    SizeDn32-Dn50,1 1/2"-2",38mm-51mm

    Standard AvailableDIN,3A,SMS,ISO

    Material QualitySs304, Ss304L ,Ss316, Ss316L

    HS Code8481804090

    TrademarkXUSHENG

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

    Products Name:Stainless Steel Sanitary Constant Pressure Valves

    Stainless Steel Sanitary Constant Pressure Valves
    Stainless Steel Sanitary Constant Pressure Valves

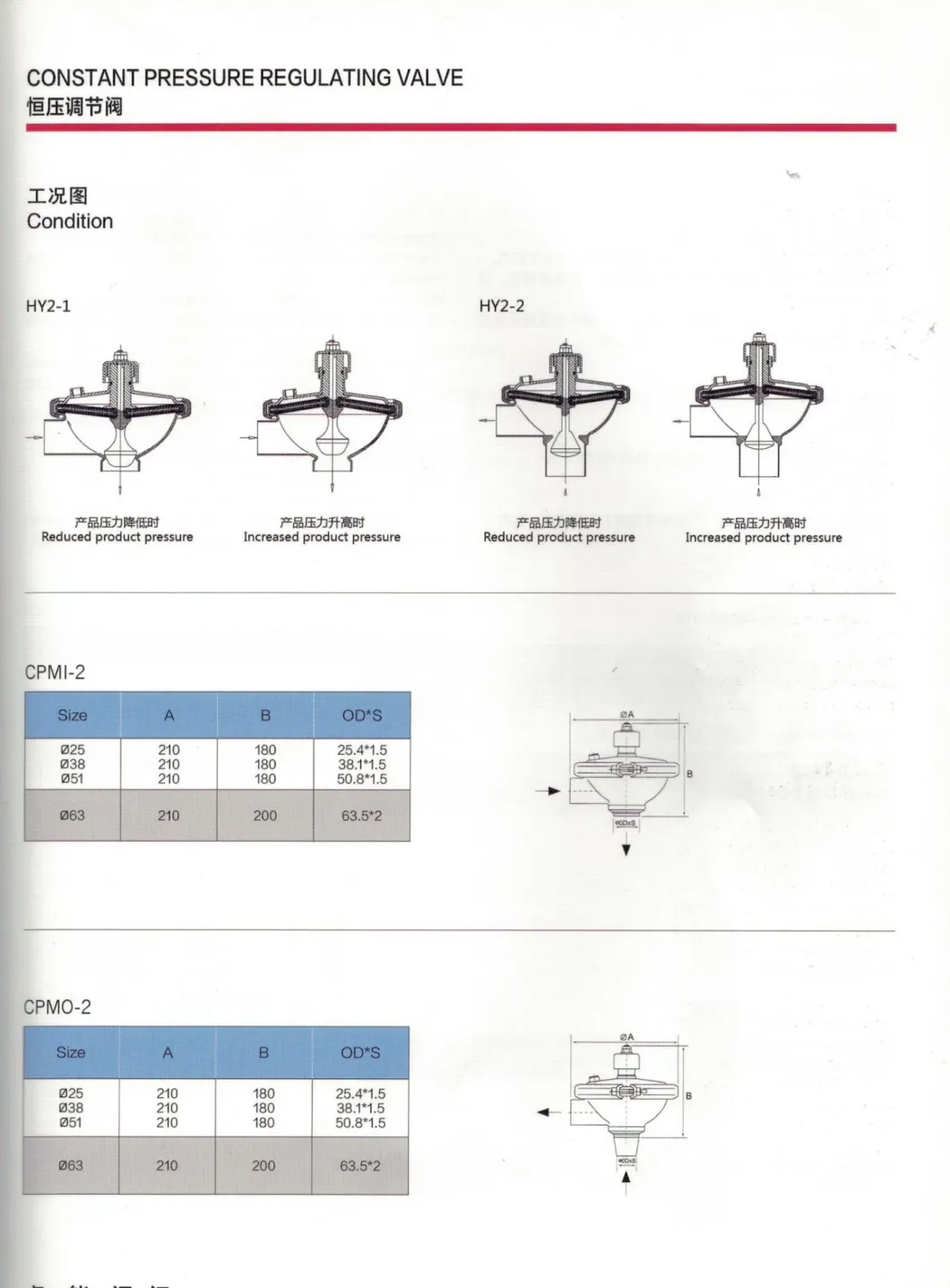

    Technical Parameter

    Material Pressure ≤10bar
    Temperature Range -10 celsius degree-+150 celsius degree
    Compressed Air Pressure 0~8bar
    Max Particle Size 0.01mm
    Max Oil Content 0.08ppm
    Dew Point Atmospheric Temperature 10 celsius degree or low
    Max Water Content 7.5g/kg
    Size DN32-DN50,1 1/2"-2",38MM-51MM
    Standard Available DIN,3A,SMS,ISO
    Material Quality Ss304, Ss304L ,Ss316, Ss316L



    Operatiing principles

    Constant pressure valve operated by compressed air, automatically run without sensor on piping system ot other auxiliary instruments, and only one compressed air pressure regulating valve that maintains perssure stability can be realized the normal work of the valve.
    Diaphragm slice and valve rod can be fit to transport product an pressure changes to make a quick response, and the corresponding change the valve stem position, in order to continue to keep the preset pressure vavle.
    Constant pressure valve - V: inlet pressure constant , in conveying medium pressure higher than the set pressure under the condition of the valve opens, the transmission medium pressure decreases flow has become, conveying medium pressure is insufficient valve closed.
    Constant pressure valve - A: outlet pressure constant, when transmitting medium pressure is higher than the set perssure under the condition of the valve will be closed, conveying medium pressure decreasees flow changes, conveying medium pressure is insufficient valve opens.



    Product application

    Applications

    The valve is a sanitary constant pressure valve which can be used in food-processing, beverage, biopharmaceutical.It has two kinds of keeping constant pressure:V type (inlet constant pressure); maintain constant pressure at the valve inlet. Such desifn is specially applied at the back of heat-exchanger. It is used as safety valve. A type (outlet constant pressure); maintain constant pressure at the outlet. Such design is used as the front of filling machine and bottle filling machine.
