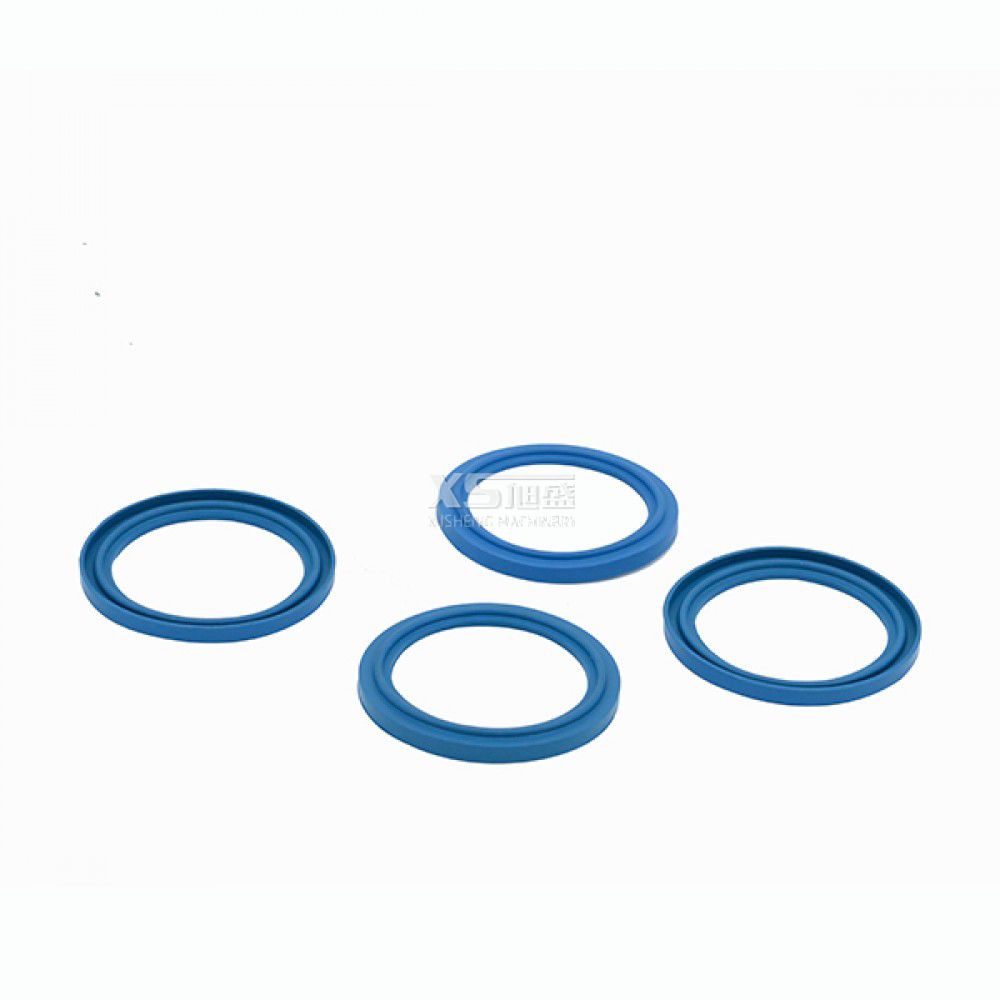

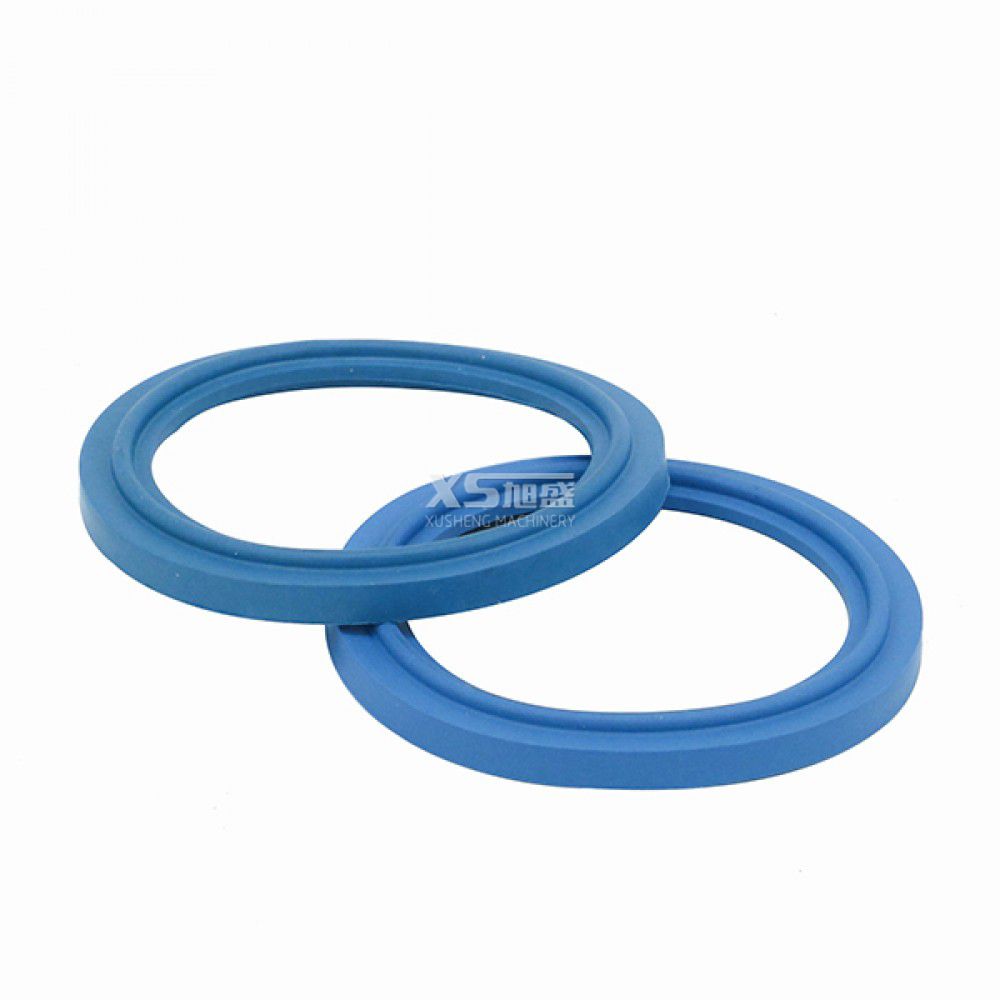

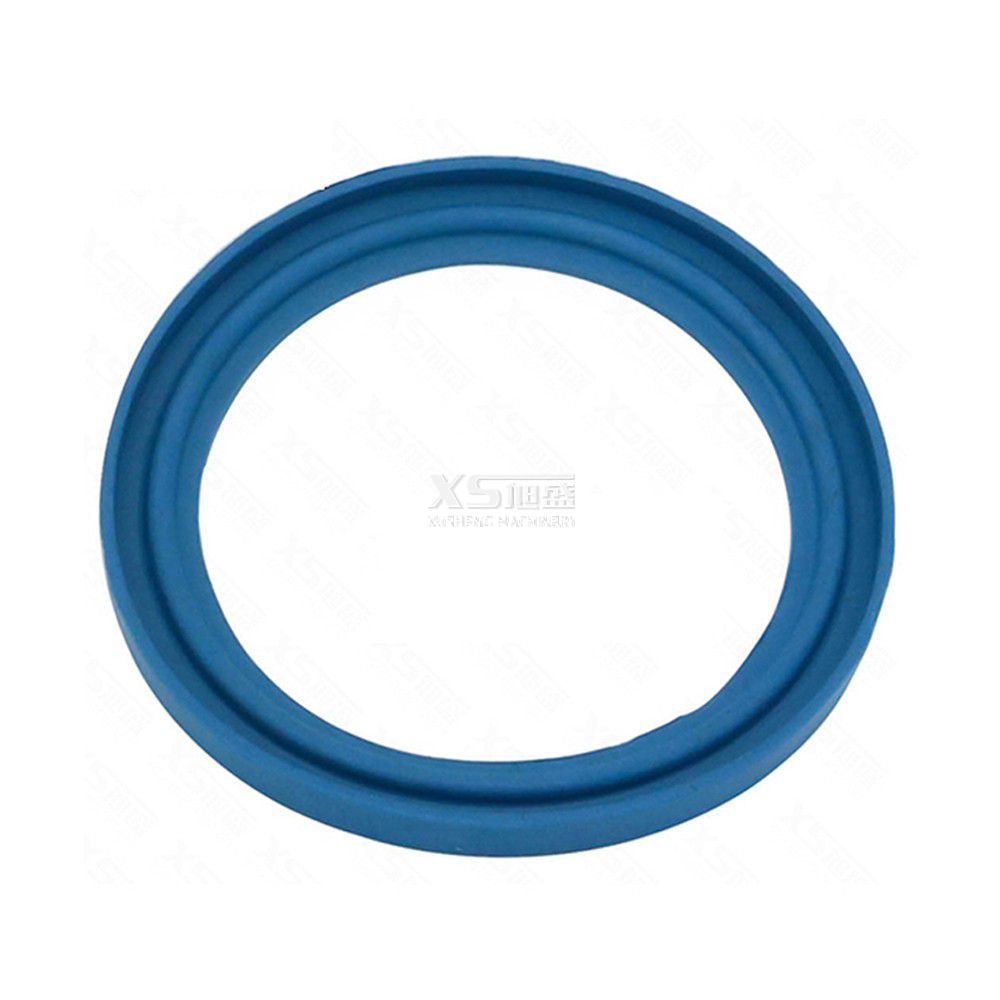

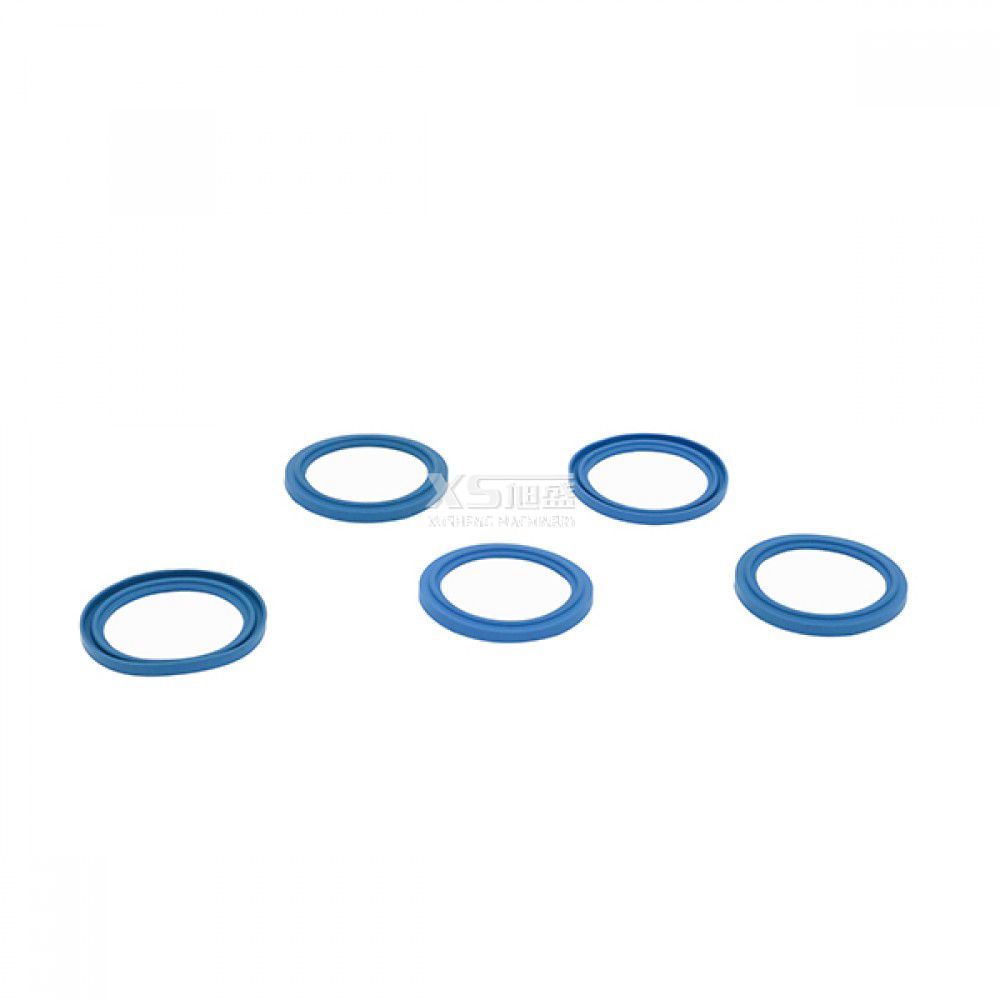

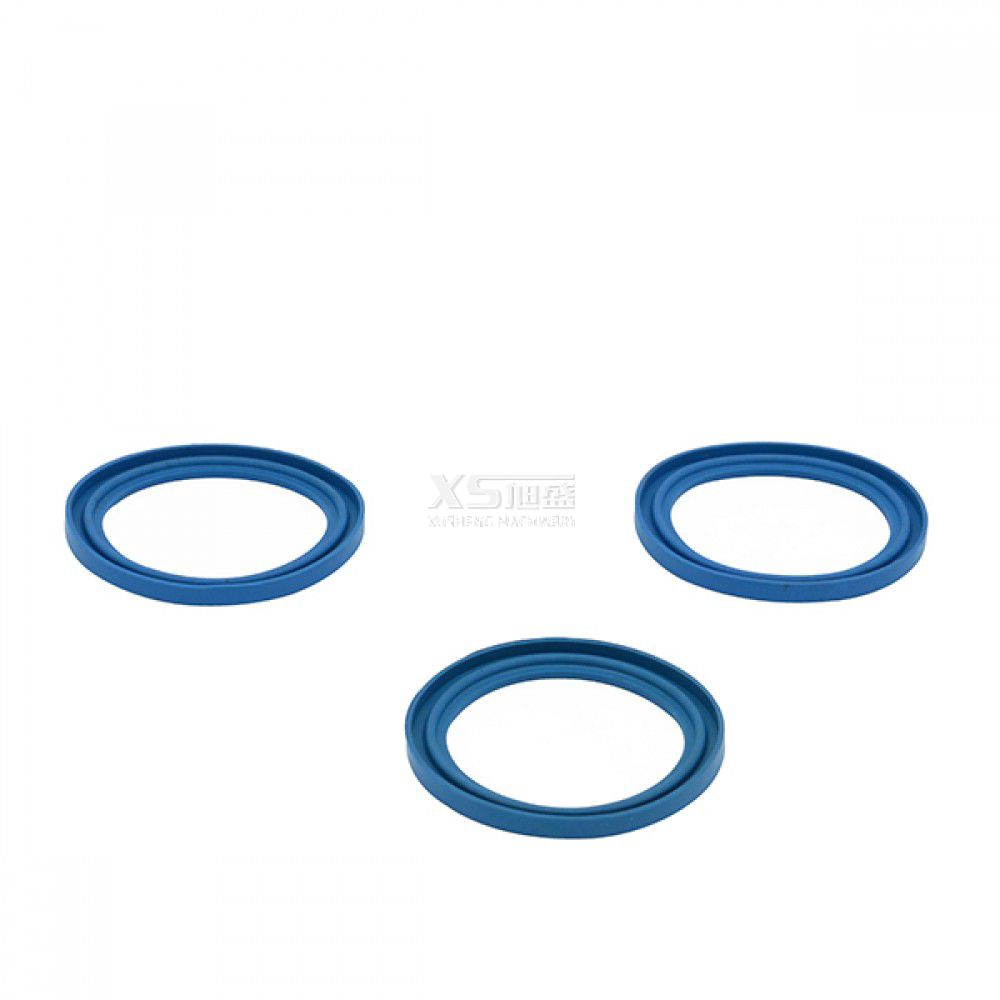

50.8mm Sanitary Detect Blue EPDM Flanged Type Gaskets

Model NO.:D011001002003D

Purchase Qty. / Reference FOB Price

1 PieceUS $0.06-0.1 / Piece

Min. Order:10 Pieces

Port:Ningbo, China

Production Capacity:10000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram


Application:Tri Clamp Ferrule

Type:Food Grade Seal

Performance:Withstand High Acid and Alkali


Standard:Standard, Nonstandard

HS Code:40169310


Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D011001002003D


    Temperature Range-55celsius Degree~250 Celsius Degree

    Availabe StandardSMS,DIN,3A,Idf,ISO

    EPDM GasketWithstand High Acid and Alkali

    Availabe ColorWhite,Black,Blue,Grey,Ect

    Application RangeMilk,Juice,Beer,Pharmacy,Dairy,Ect

    Pressure Range0-10bar,0MPa-1.0MPa

    Type of Sealing RingTri Clamp Ferrule,Butterfly Valve,Union

    Type of Mesh Stainless Steel30mesh,40mesh,50mesh,60mesh,80mesh,100mesh,120mesh

    HS Code40169310


    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

    Product name:50.8mm Sanitary Detect Blue EPDM Flanged Type Gaskets

    Stainless Steel Detect Blue EPDM Flanged Type Gaskets
    Hygienic Detect Blue EPDM Flanged Type Gaskets


    Technical Parameter

    · Material   Viton
    · Screen mesh:  10, 20, 40, 60, 80, 100, 120, 150, 200, 300, 400 mesh and so on
    · Size:   1/2"-12" /DN15-DN300
    · Gasket: SMS,DIN,3A,IDF,ISO,RJT
    · MOQ:

    50pcs each size


    Product application

    The Funtions for Sanitary Silicone Gasket

    1. Has excellent heat resistance,cold resistance,ozone resistance,aging resistance
    2. Has very good insulation performance
    3. The tensile strength is poor and it is not resistant to oil.
    4. -55Celsius Degree~250 Celsius Degree

    The Function for Sanitary EPDM Gasket

    1. Has good weather resistance, ozone resistance,water resistance and chemical resistance
    2. Used for high temperature water vapor seal
    3. -55Celsius Degree~150Celsius Degree

    The Function for Sanitary VITON Gasket

    1. High temperature resistance than silicone rubber, has excellent weather resistance, ozone resistance and chemical resistance
    2. For most oil and solvent resistance
    3. -20Celsius Degree~250Celsius Degree

    The Function for Sanitary NBR Gasket

    1. Suitable for oil system hydraulic oil, glycol system of hydraulic oil, two ester series lubricating oil, gasoline, water, silicone grease, silicone oil and other media use
    2. The most widely used, the lowest cost of rubber seals
    3. -40Celsius Degree~120Celsius Degree

    Sealing ring also pays attention to the following conditions

    1. Flexibility and elasticity
    2. Appropriate mechanical strength, including tensile strength, elongation and tensile strength etc.
    3. Stable performance, easy to swelling in the medium, heat shrinkage (Joule effect) small
    4. Easy processing, and can keep the precision dimension
    5. No corrosion no pollution to medium contact surface, etc.

    Advantage of Sanitary Gasket

    1. The sealing ring in the work pressure and temperature range, good sealing performance, and with the increase of pressure can improve the sealing performance
    2. The friction between the sealing ring and the moving parts of the device must be small, stable friction coefficient
    3. The corrosion resistance of the sealing ring is strong, not easy to aging, long service life, good resistance to abrasion, wear can automatically compensate to some extent
    4. Has the advantages of simple structure, convenient use and maintenance, the sealing ring has a longer life


    It is used for food,beverage,pharmacy,chemical,dairy,cosmetics etc industries.
