Sanitary Stainless Steel Food Grade Liquid Level Gauges

Model NO.:D001011001D

Purchase Qty. / Reference FOB Price

1 PieceUS $8-10 / Piece

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:5000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material Quality:Ss304, Ss304L ,Ss316, Ss316L

Connection Ends:Clamping,Threading,Welding,Union,Flange

Diameter:Dn15,20mm,19mm,25mm,32mm

Working Pressure:0.6(MPa)

Working Temperature:-20~180celsius Degree

Total Length:200-6000(mm)

HS Code:8481804090

Trademark:XUSHENG

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001011001D

    GasketSilicone, EPDM, Viton, NBR, PTFE

    Scope of ApplicationFood Machinery, Pharmaceutical Machinery, Stainles

    FunctionArranged in The Tank Body to Observe The Liquid

    HS Code8481804090

    TrademarkXUSHENG

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

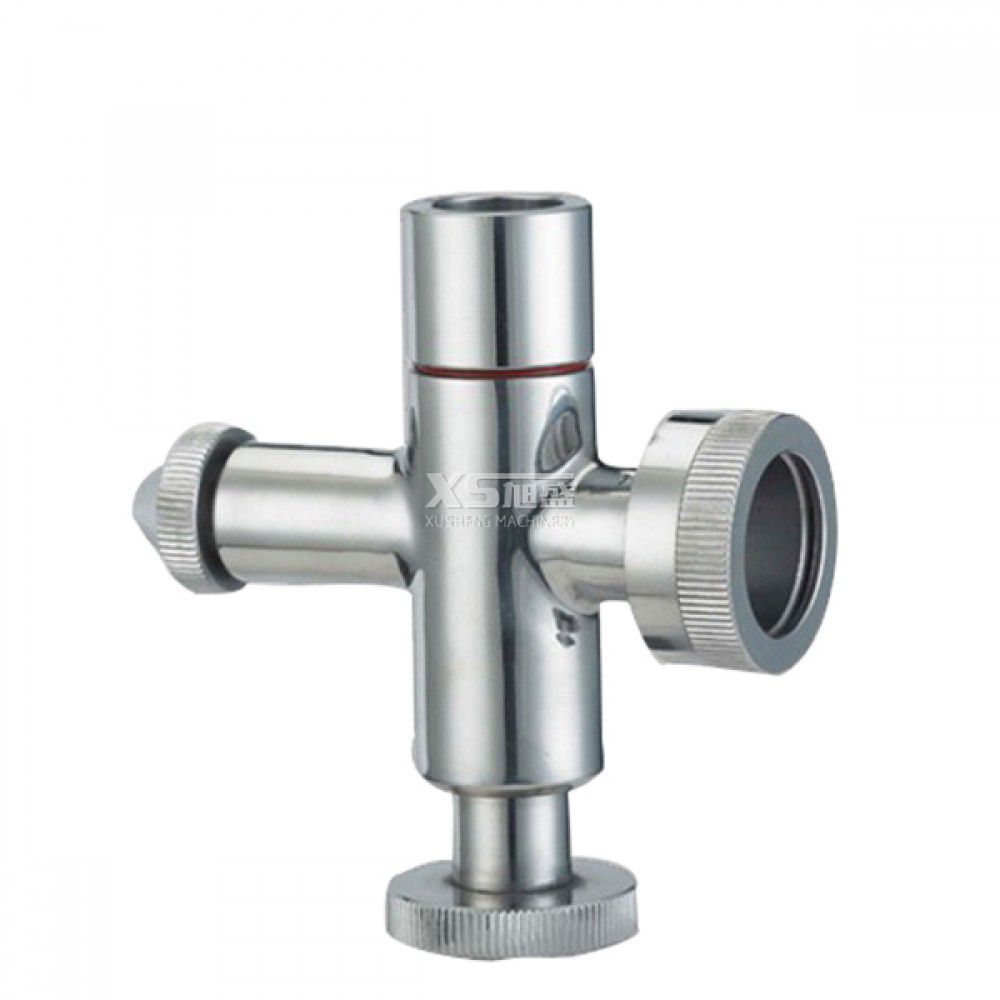

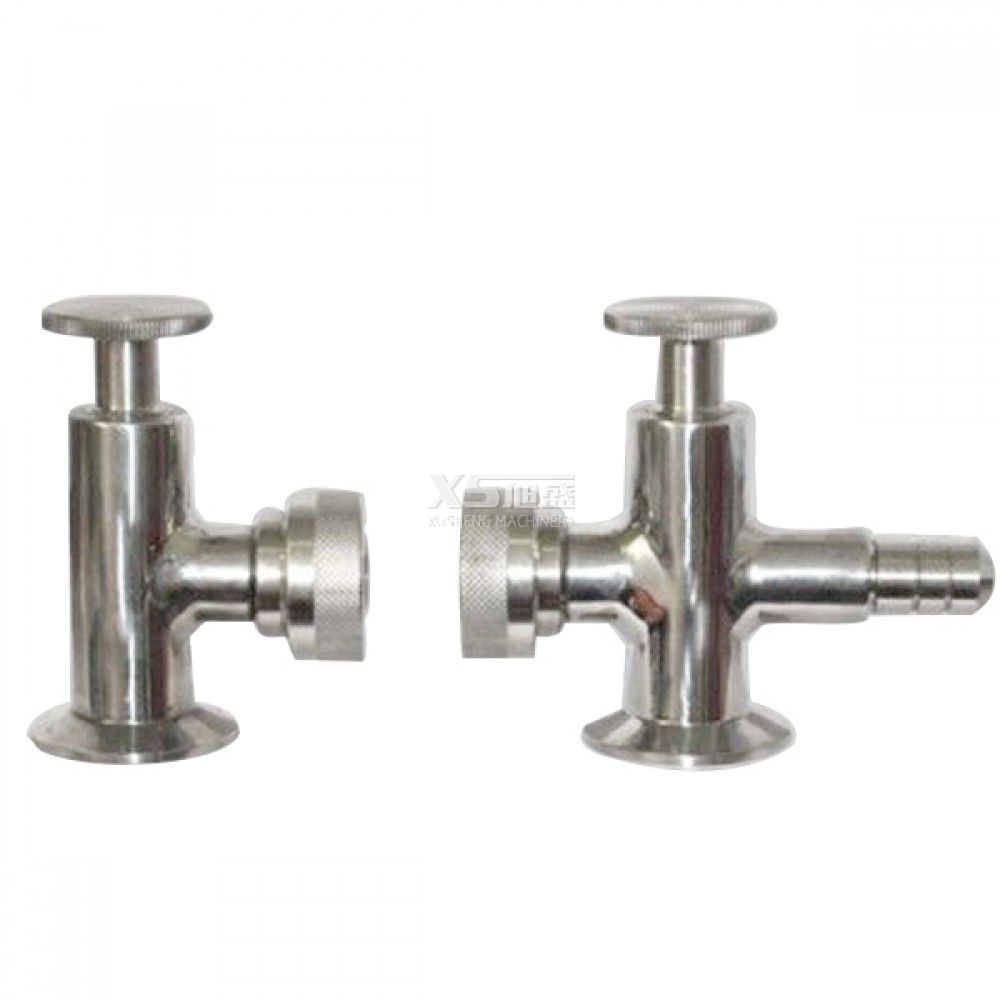

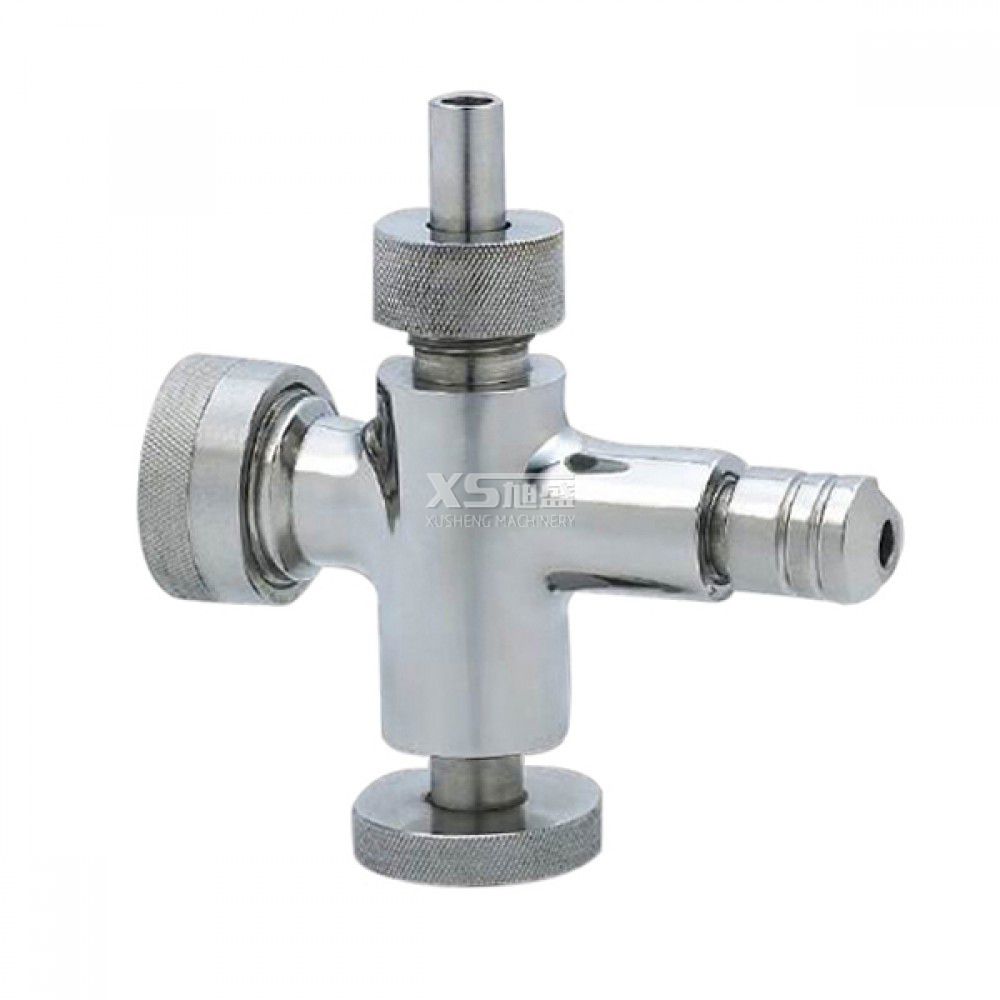

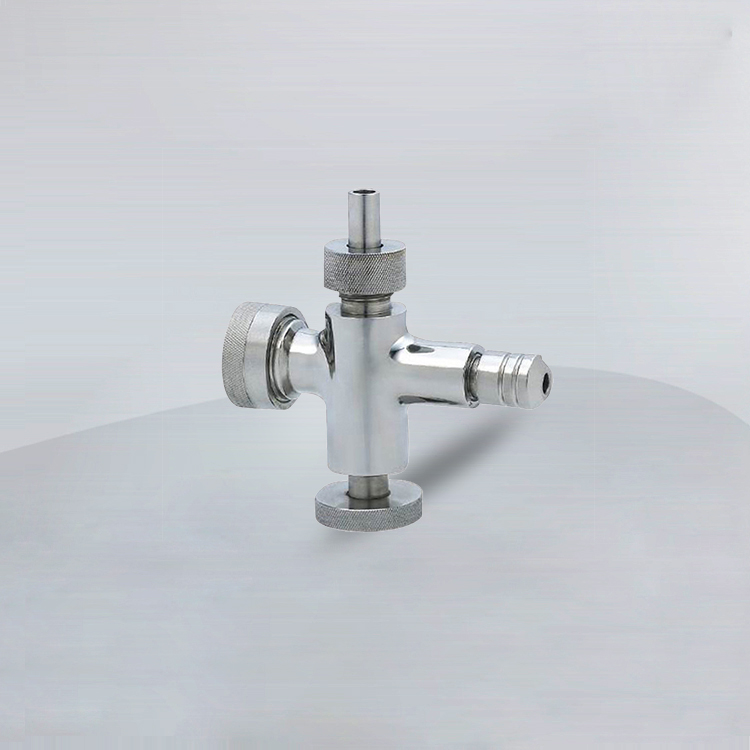

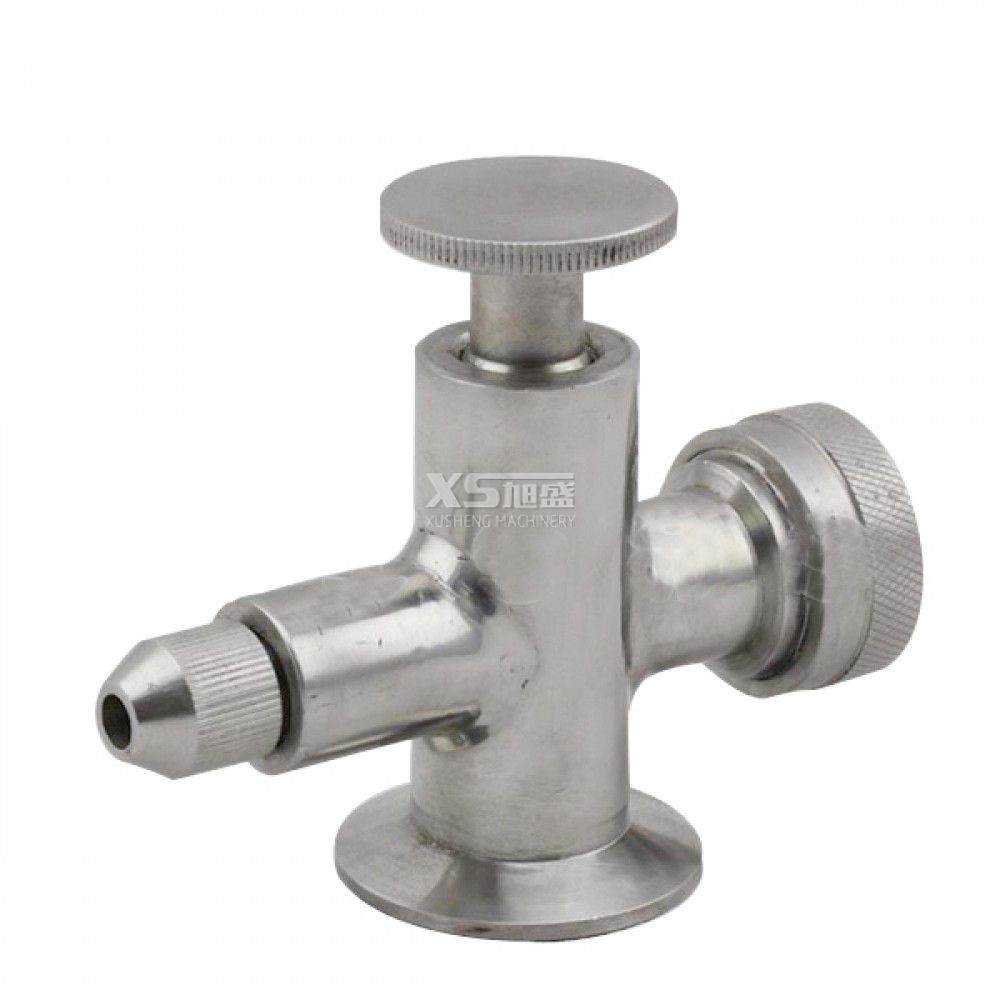

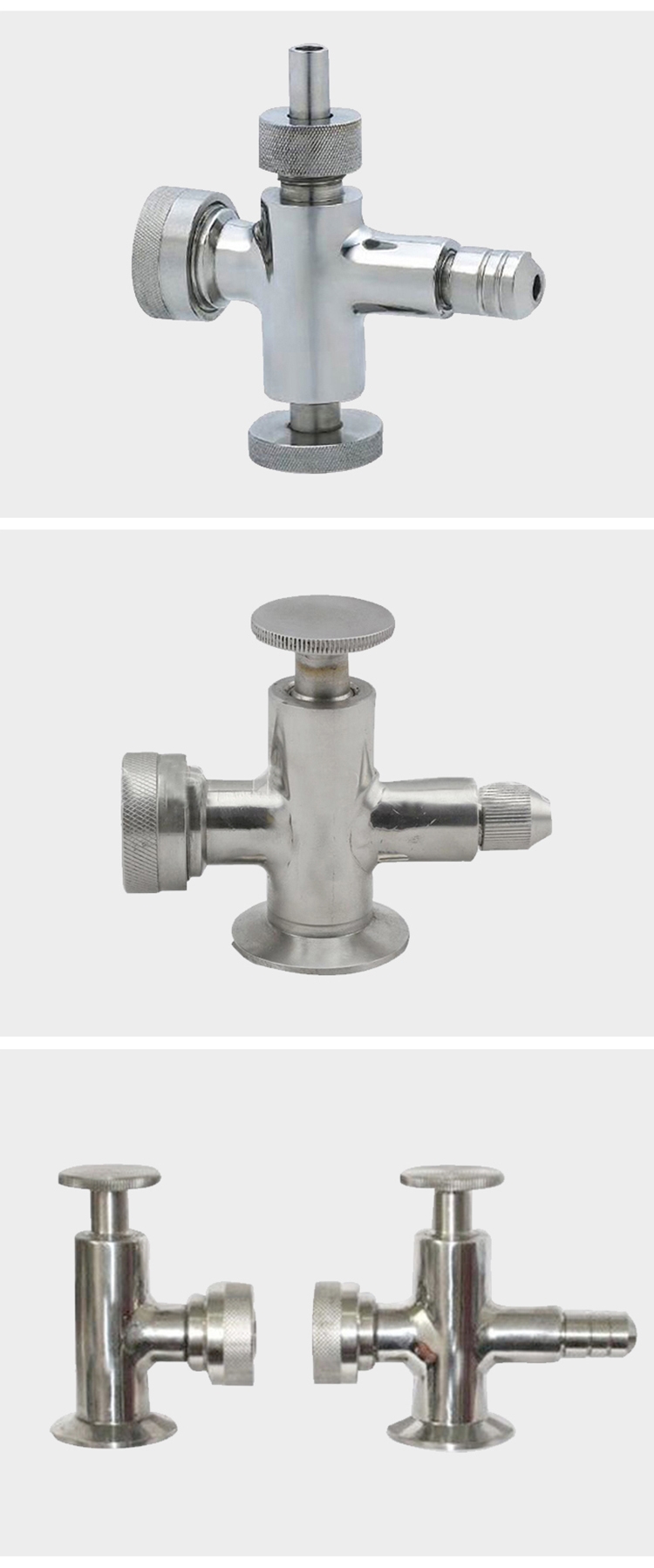

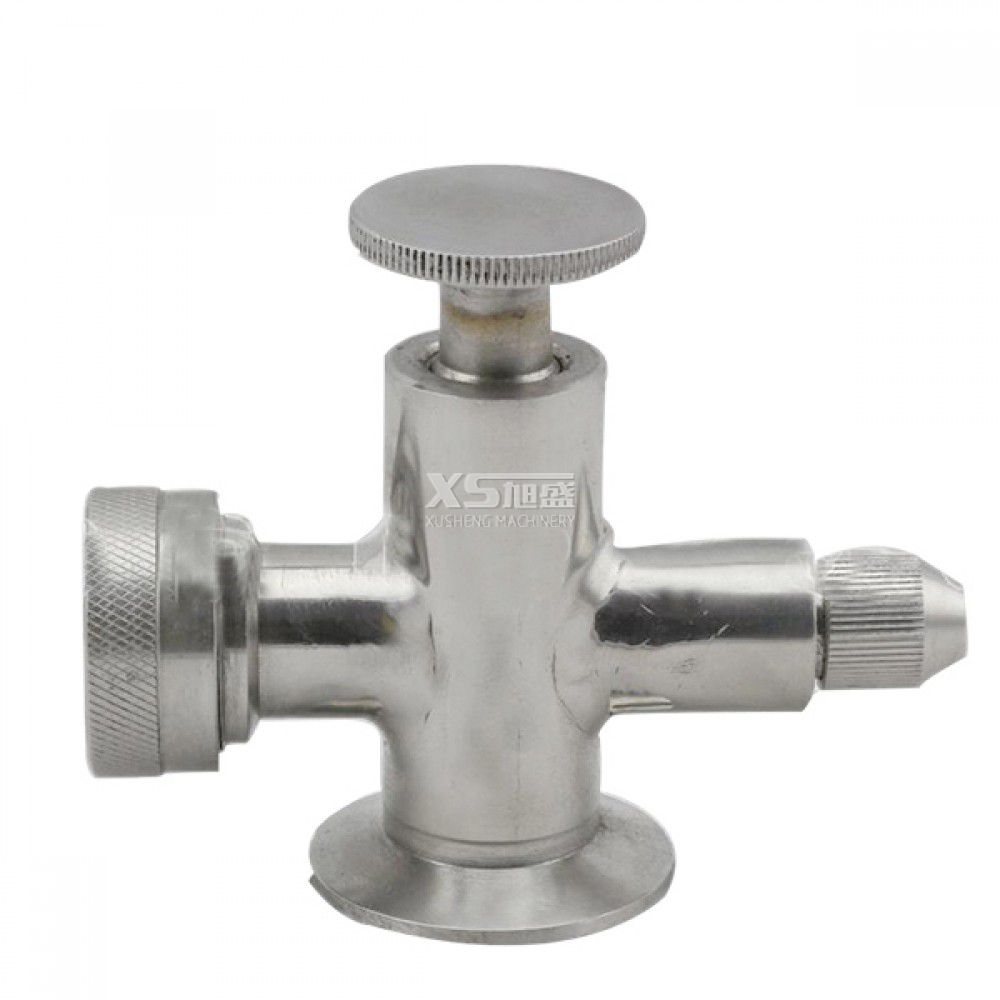

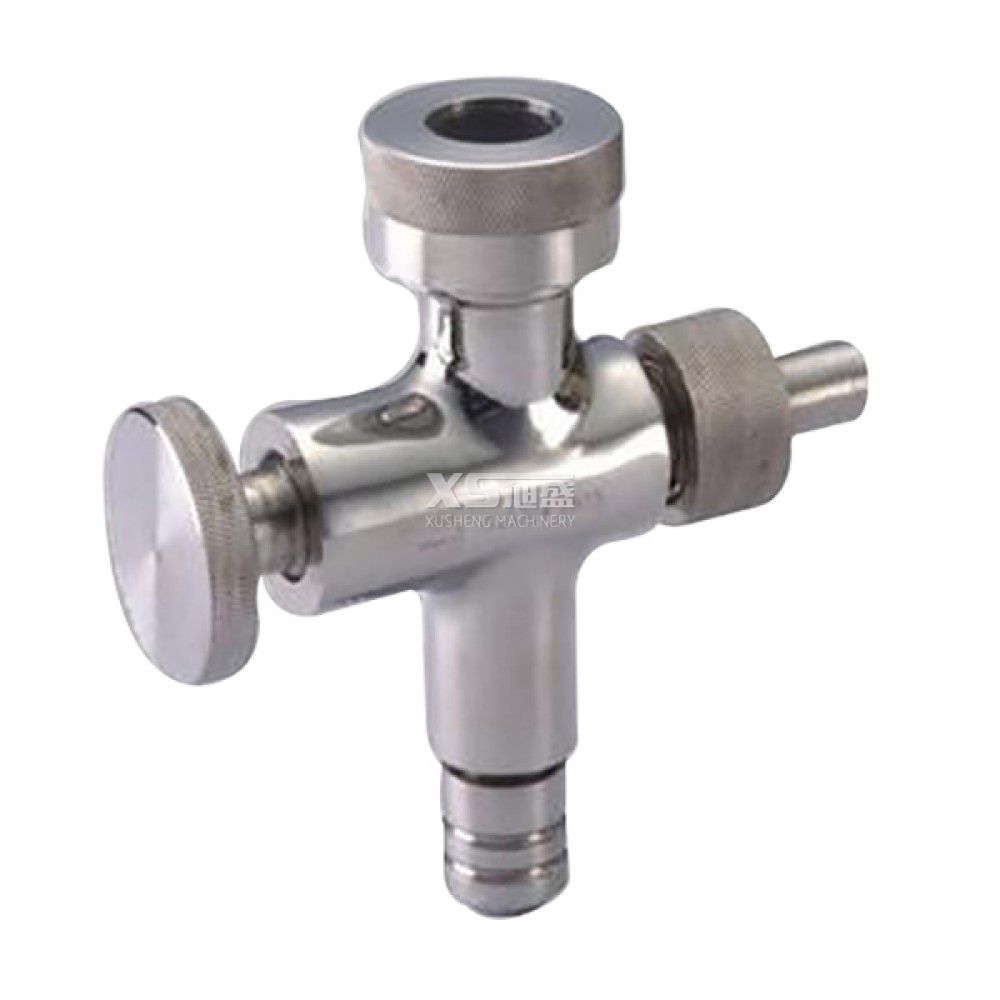

    Products Name:Stainless Steel Sanitary Level Gauge Cock Valves

    Sanitary Food Grade Liquid Level Gauges
    Stainless Steel Food Grade Liquid Level Gauges

    Glass tube liquid level gauge and is called liquid level valve, is a kind of liquid level measuring instrument, which is mainly installed in the tank, so as to observe the flow of liquid in the tank. It is suitable for the industrial production process of the liquid position of the general storage equipment in the field test, the structure is simple, accurate measurement, is a traditional measurement tools. By welding the quick assembly of the container, and the container, through the glass tube, the liquid level height of the container is directly displayed.



    Technical Parameter

    Material Quality Ss304, Ss304L ,Ss316, Ss316L
    Connection Ends Clamping,Threading,Welding,Union,Flange
    Diameter DN15,20MM,19MM,25MM,32MM
    Working Pressure 0.6(Mpa)
    Working Temperature -20~180Celsius Degree
    Scope of application food machinery, pharmaceutical machinery, stainless steel tank;
    Total Length 200-6000(MM)
    Gasket Silicone, EPDM, Viton, NBR, PTFE
    Valve thread size 1/4", 3/8", 1/2", 3/4"
    Medium Water, oil, gas, and other corrosive media
    Max.Pressure 10Bar
    Packaging Carton Case or Plywooden Cases
    Function arranged in the tank body to observe the liquid the flow of liquid in the tank



    Component of Stainless Steel Sanitary Level Gauge Cock Valves:

    1. glass tube
    2. the scale
    3. the protective sleeve
    4. the upper and lower valve
    5. the connection quick installation

    Product application



    Applications

    This valve has two styles:eletric-pneumatic control valve and manual control valve,used in automatic control system to control pressure,capacity,temperaure and tank level.



    Comyany information

    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products
