Stainless Steel Sanitary Manual Diaphragm Membrane Valve

Model NO.:D001004001001D

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:3000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram


Connection:Threaded Triclamp, Welded

Material:Stainless Steel

Structure:Through Way Diaphragm Valve

Pressure:Ordinary Pressure

Flow Direction:Unidirection

HS Code:8481804090


Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D001004001001D

    FunctionSolenoid Valve, Electronic Type, Intelligent Type, Field Bus, Manual Type

    UsageFlow Control

    StandardDIN, GB, ANSI, BSW, JIS

    Valve Body MaterialSs316L

    Availably Standard3A/Bpe/DIN/ISO/Idf/SMS

    Seal MaterialPTFE + EPDM (Double Layer) / EPDM / Silicon / FPM

    Availably Size1"-3", Dn20-Dn65

    Availably ConnectionClamp/Weld/Thread/Special Connection

    OperatedManual, Pneumatic for Pulse Jet Diaphragm Valve

    Availably StructureStraight, Tee, U-Type, Tank Bottom

    Max. Working Pressure10bar

    Max. Working Temperature120 Degree C

    Application ScopeDairy, Food, Beverage, Pharmacy, Cosmetic, etc

    HS Code8481804090


    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

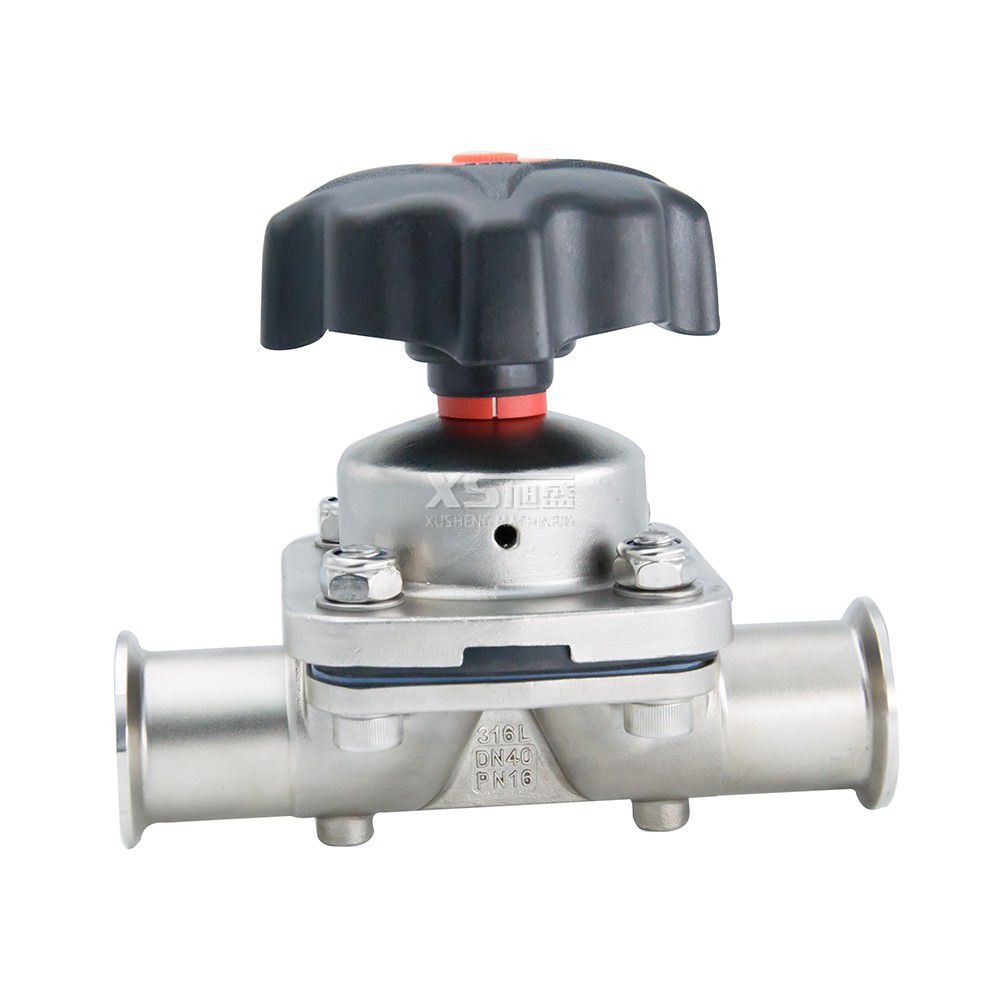

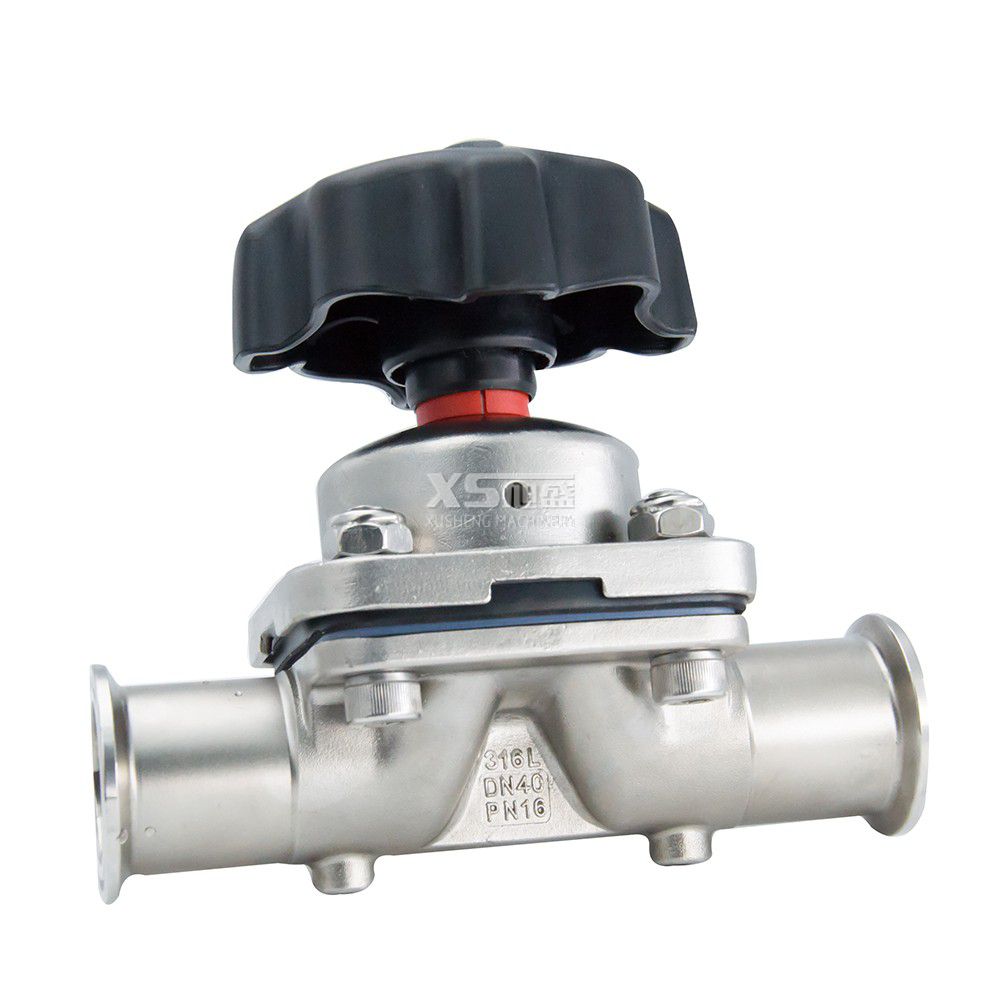

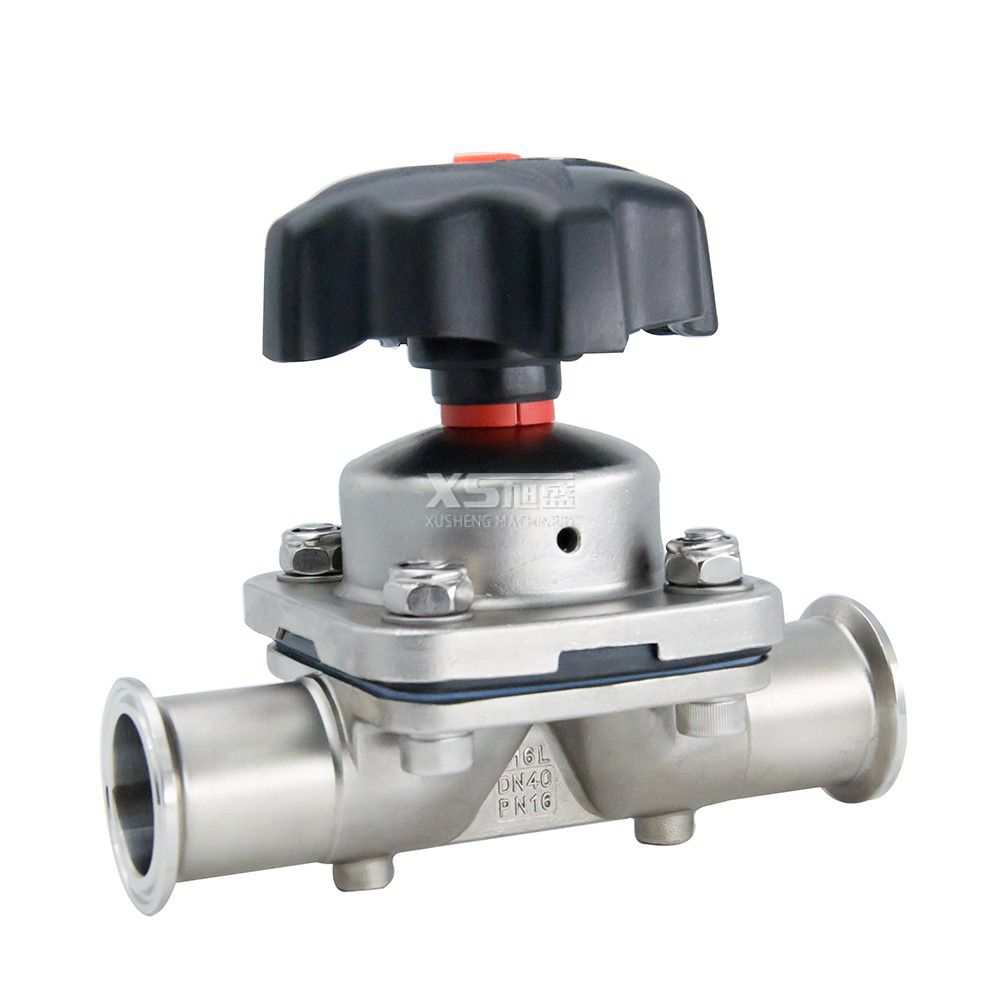

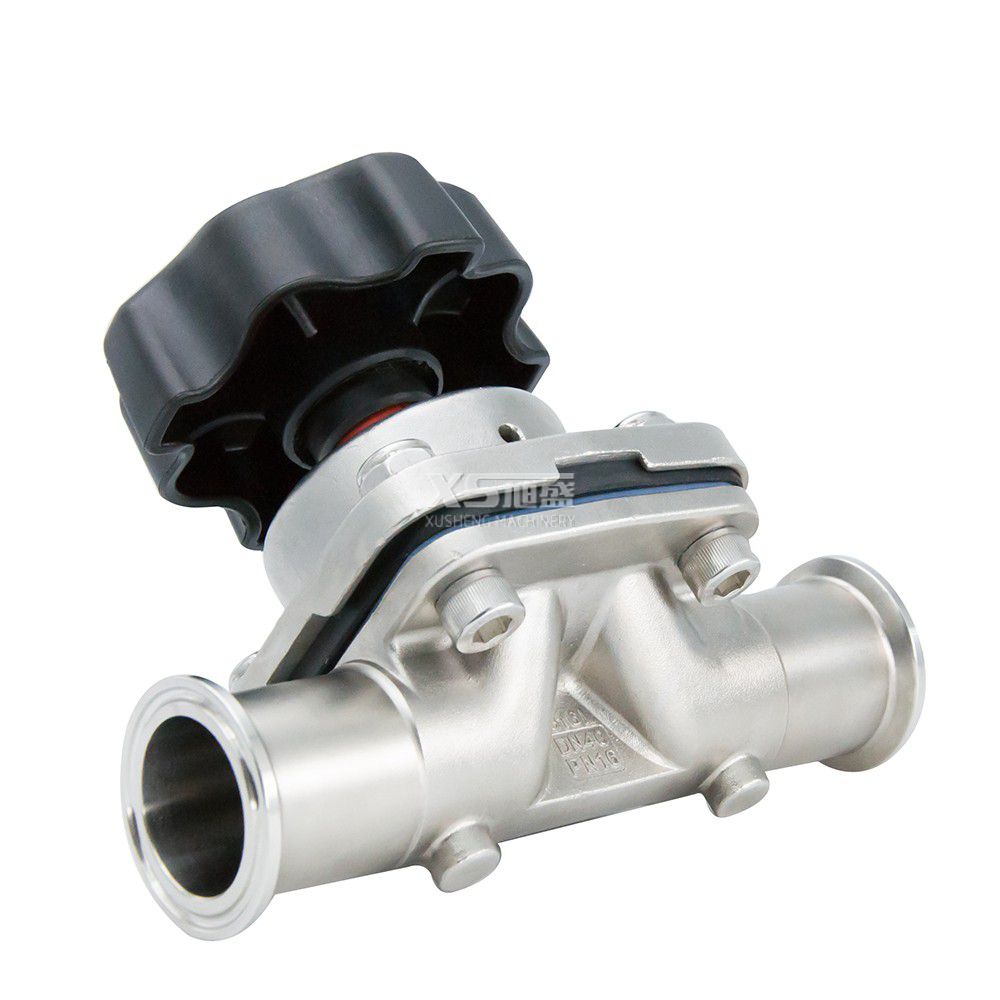

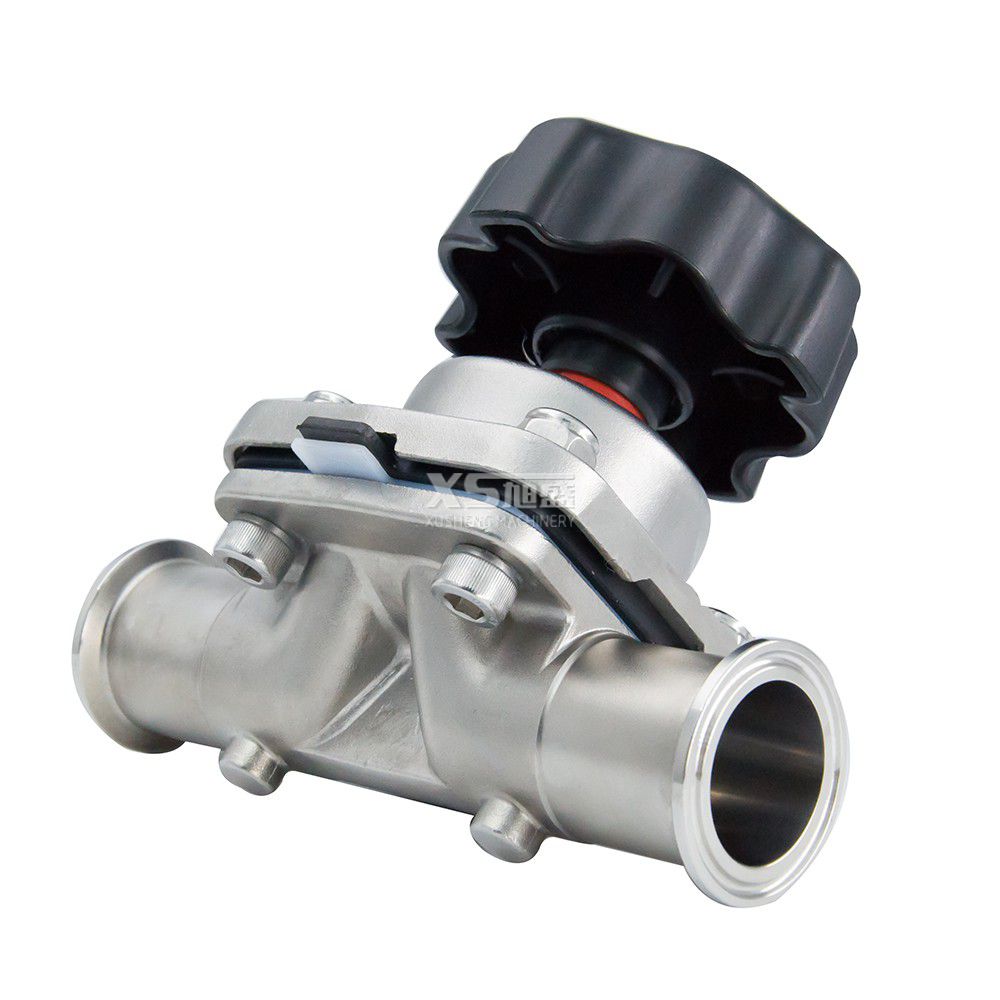

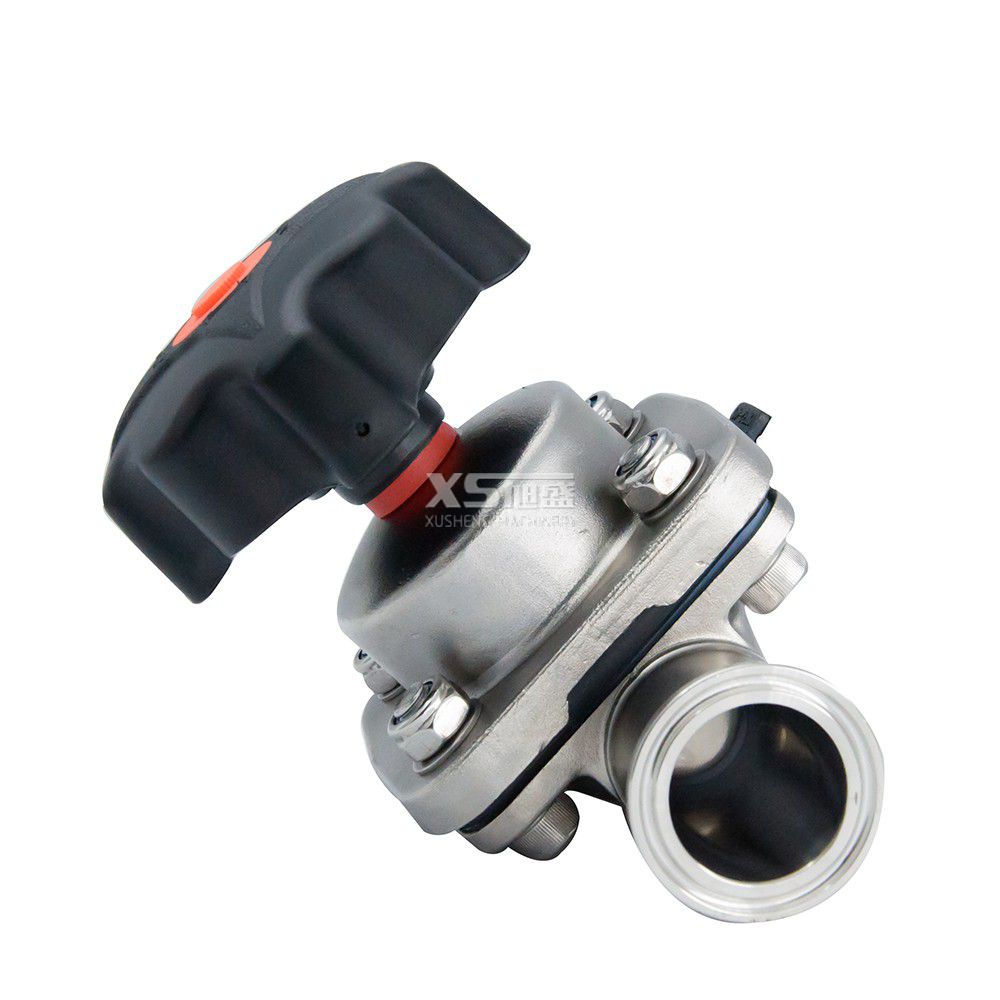

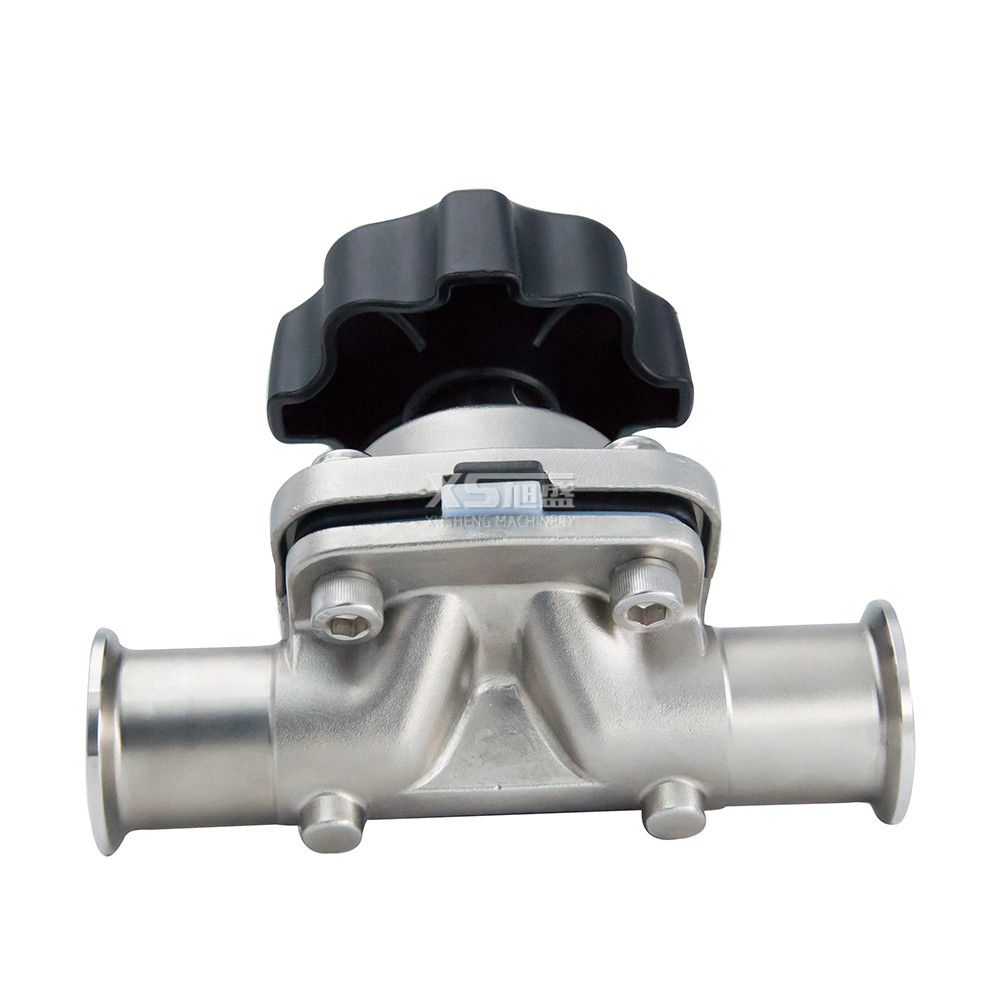

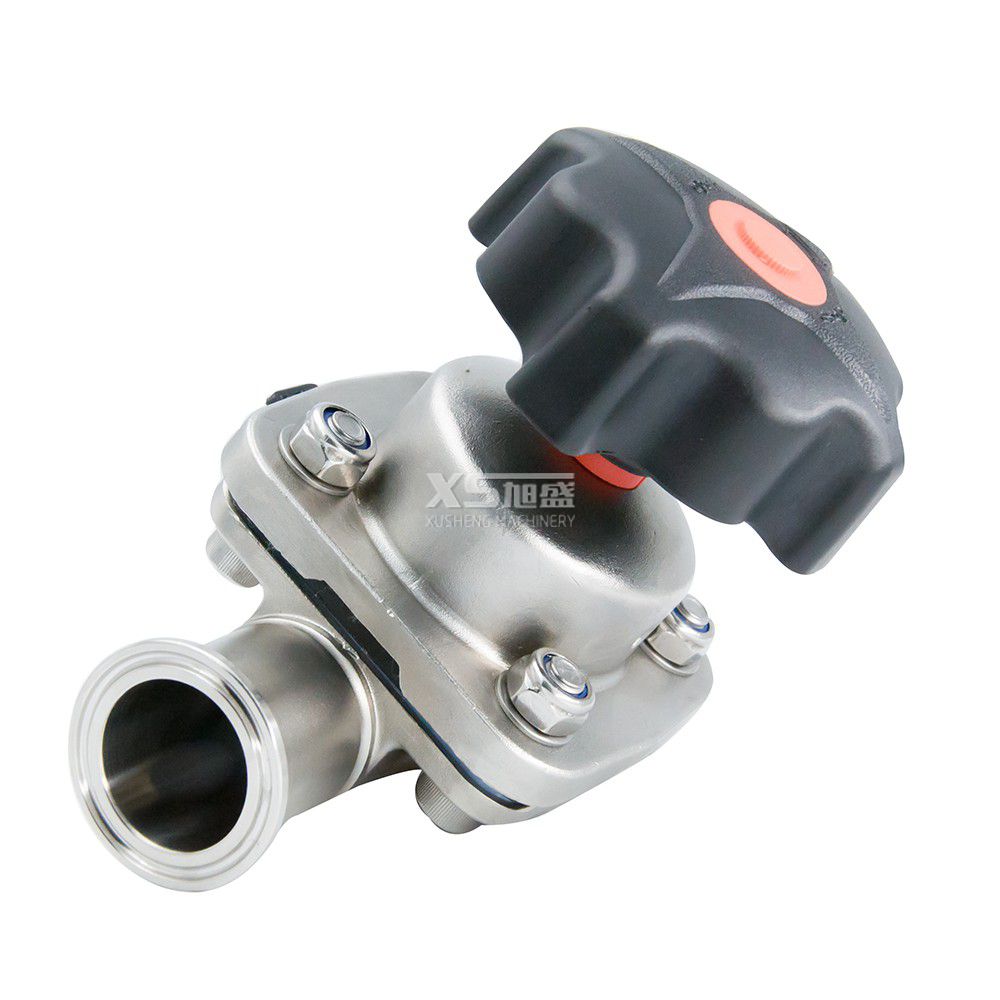

    Products Name: Stainless Steel Sanitary Manual Diaphragm Membrane Valve

    Diaphragm Membrane Valve
    Manual Diaphragm Valve


    Technical Parameter

    Valve Body Material SS316L
    Availably standard 3A/BPE/DIN/ISO/IDF/SMS
    Availably  size 1"-3",DN20-DN65
    Seal Material PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
    Availably connection Clamp/weld/thread/special connection
    Operated Manual,Pneumatic
    Max. Working Pressure 10Bar
    Availably structure Straight, tee, U-type, tank bottom
    Max. Working Temperature 120 degree C
    Application scope Dairy,food, beverage, pharmacy, cosmetic, etc

    Product application


    It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.


    Diaphragm seals the valve body and seat.The is no way to contact the environment.So this valve is suitable for asepsis process.When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.
