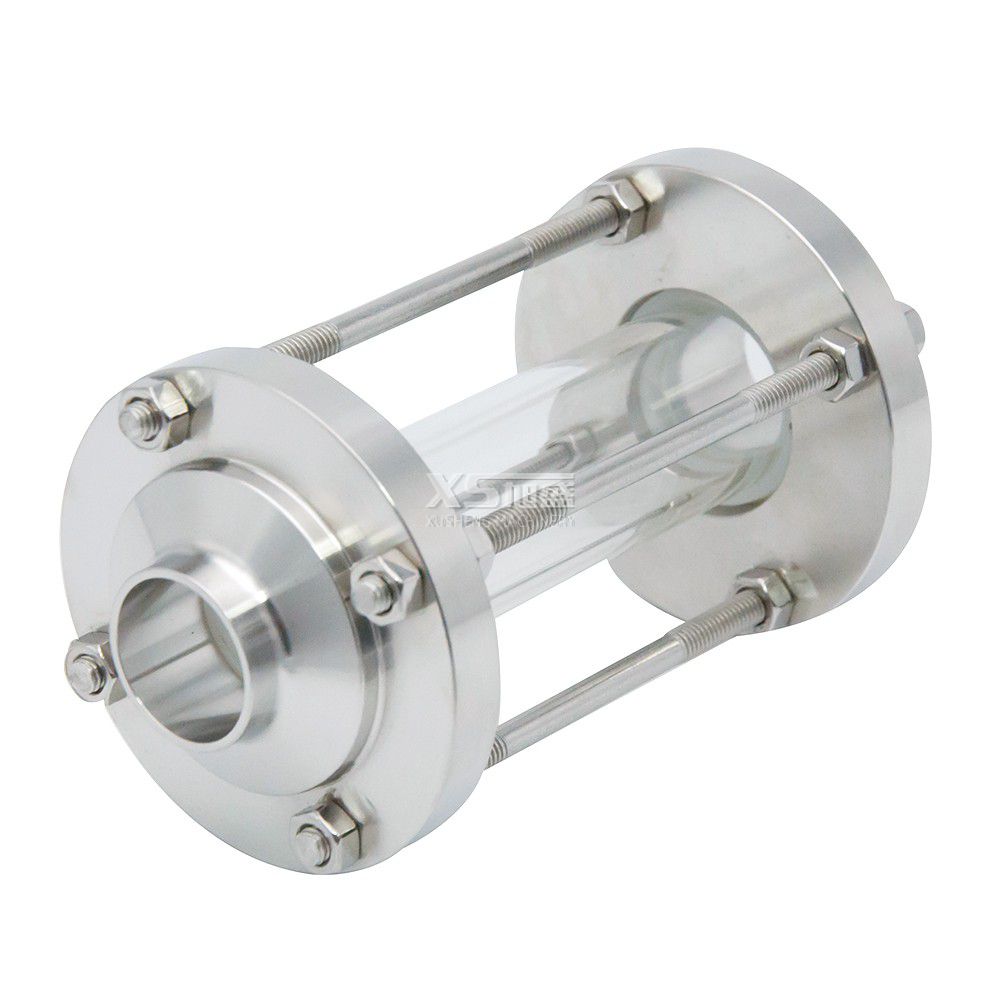

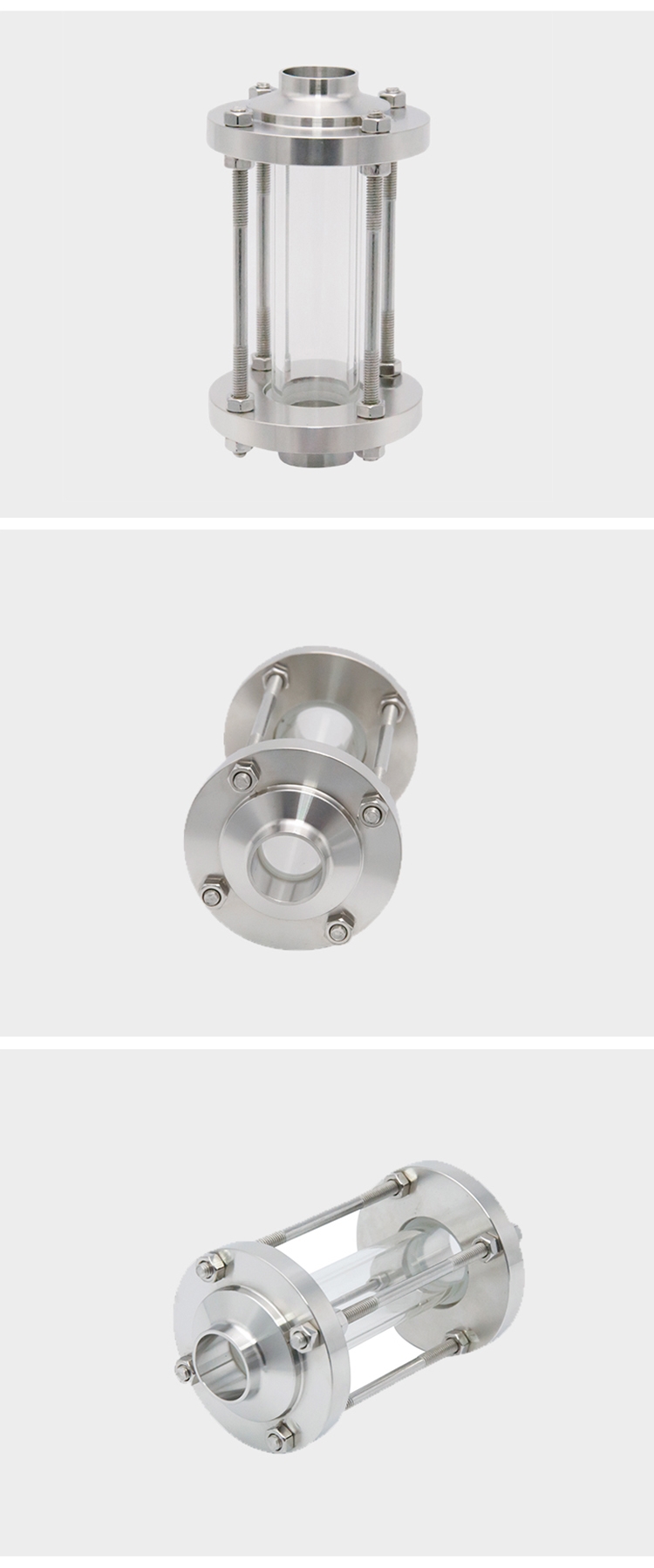

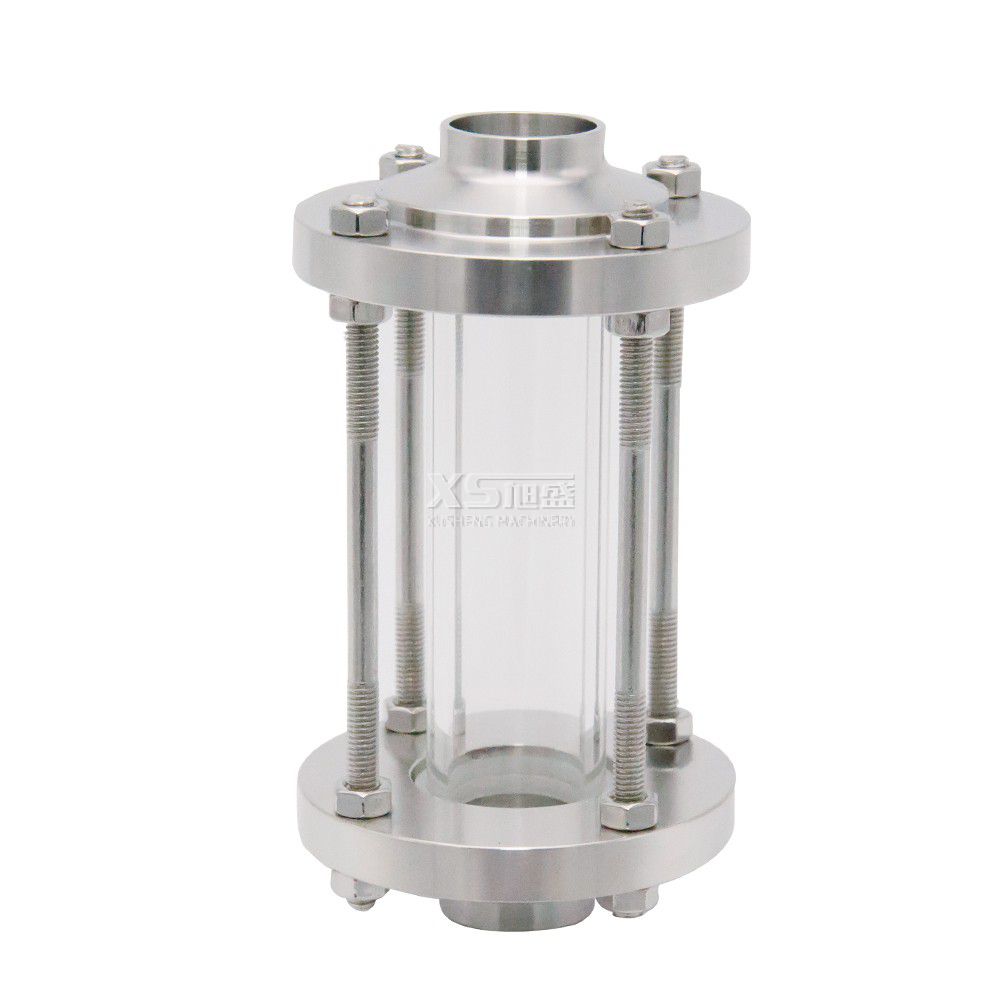

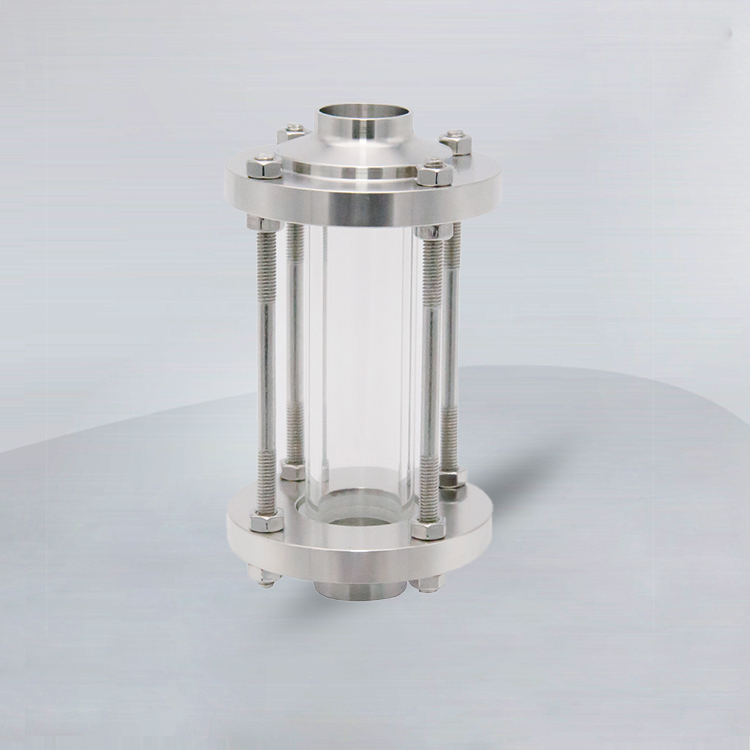

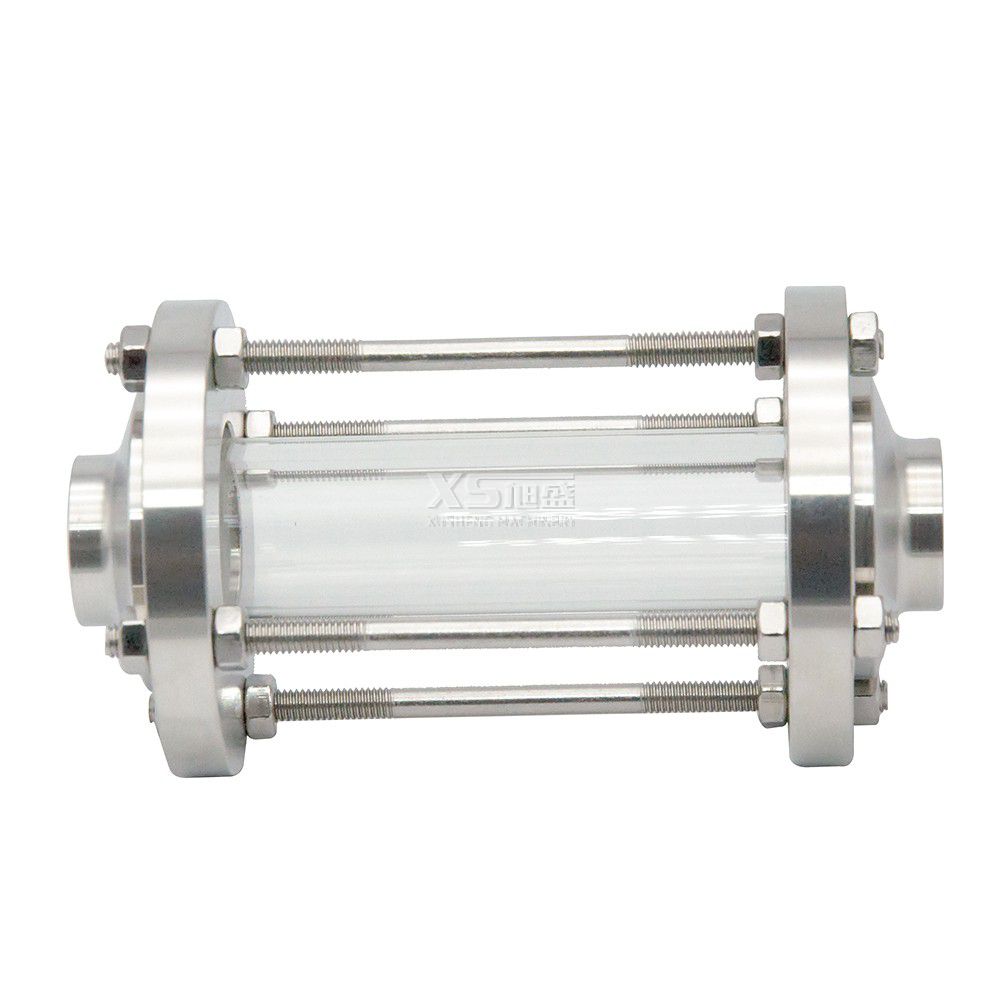

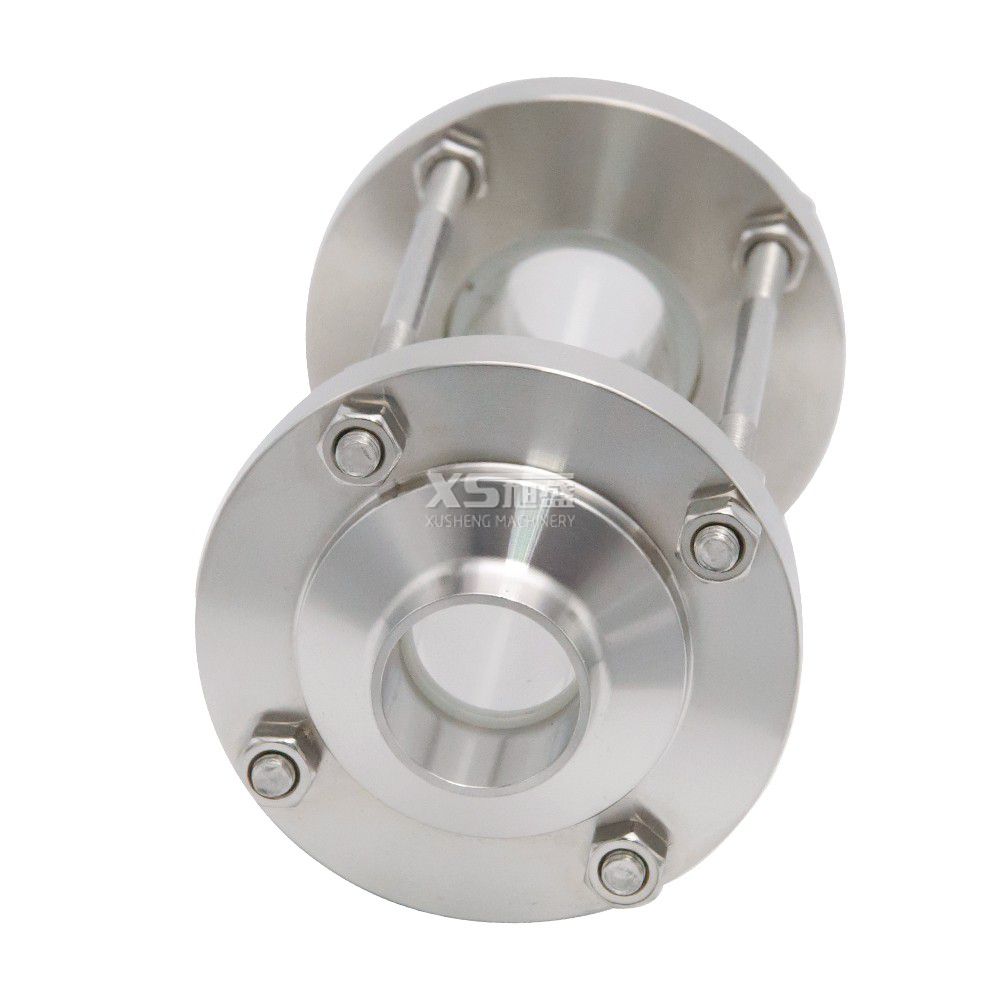

Stainless Steel 304/316L Sanitary Weld Tank Sight Glass

Model NO.:D006001001D

Min. Order:1 Piece

Port:Ningbo, China

Production Capacity:5000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material Quality:SS304, SS304L ,SS316, SS316L

Availabe Standard:SMS,DIN,AAA,Idf,ISO,Rj

Temperature Range:-20degree Celsius~135degree Celsius

Seal Material:Silicone, EPDM, Viton, NBR

Glass material:Heavy Wall Borosilicate Tubing Polycarbonate Tub

Pressure Range:1.5~3bar

HS Code:8481804090

Trademark:XUSHENG

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D006001001D

    StructureStraight Way,Cross

    Availabe ConnectionWelding Ends,Triclamp Ends,Union Ends,Male Ends

    ApplicationMilk,Juice,Beer,Beverage,Pharmacy,Ect

    HS Code8481804090

    TrademarkXUSHENG

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

    Product name:Tank Component Sanitary Stainless Steel Sight Glass

    Stainless Steel 304/316L Sanitary Weld Tank Sight Glass
    Weld Tank Sight Glass

    It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.Sanitary Straight Sight Glass allows observation of fluids in transit through a three-dimensional pipeline

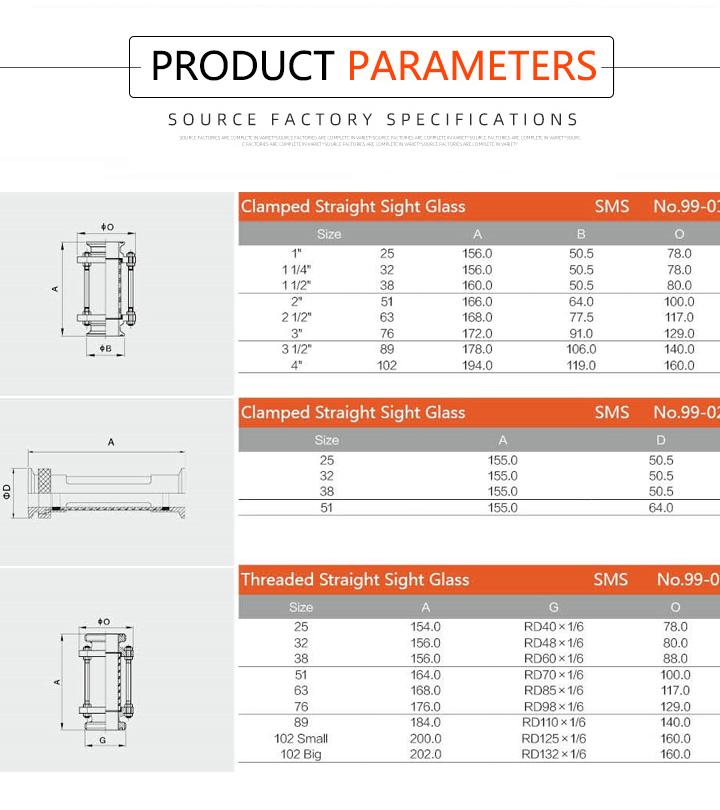

    Technical Parameter

    Availably standard SMS,DIN,3A,IDF,RJT, BS, ISO
    Material Quality SS304,SS304L,SS316,SS316L
    Specification DN150
    Availabe Connection Welding ends,triclamp ends,union ends,male ends
    Seal Material Silicone, EPDM, Viton, NBR
    Glass Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan)
    Tubing; Acrylic Tubing; etc
    Protection Lens Cover  Polycarbonate  Tubing,Acrylic Tubing or Slotted Stainless Steel
    Screw Blot Full Stainless Steel
    Structure Straight way,cross
    Pressure range 0bar~10bar
    Machine Processing The most advanced CNC machine from Japan for processing
    Continuous working temperature 20°C ~ +135°C (EPDM,Silicone)
    Special Design we can produce according to your drawings


    Advantage of products

    1. Each kind of products has strong corrosion resistance and over-long service liftime
    2. Xusheng accessories are easy to be installed
    3. Problem-free welding and assembly and highest possible strenghth





    Applications

    Sanitary Straight Sight Glass is designed for sanitary applications required in the food, dairy, and pharmaceutical industries.

    Available Size DN65,DN80,DN100,DN125,DN150
    Available Material Ss304, Ss304L ,Ss316, Ss316L
    Available Standard SMS,DIN



    Performance of Tank Lamp Sight Glass

    Operating voltage 12V / 24V / 36V / 220V
    Power 20W / 50W / 100W



    Features of Tank Lamp Sight Glass

    Luminous flux 220 lumens, lamp life: 50,000 hours, do not worry about frequently changing a light bulb, and the 5th battery 14500 lithium battery-powered GM, do not have to worry about power, luminous tail.
    Lamp 1W using a bright LED lamp, Taiwan chip, domestic assembly.
    Power Using a 5 batteries, power lasting more powerful, it is recommended to use high mAh rechargeable battery, more power, LED lights brighter, while the economic benefits.



    Parts Name of Tank Lamp Sight Glass

    NO NAME
    1 Body
    2 High Pressure Glass
    3 Male
    4 Lock Nut
    5 Seal





    Product application

    Comyany information

    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
