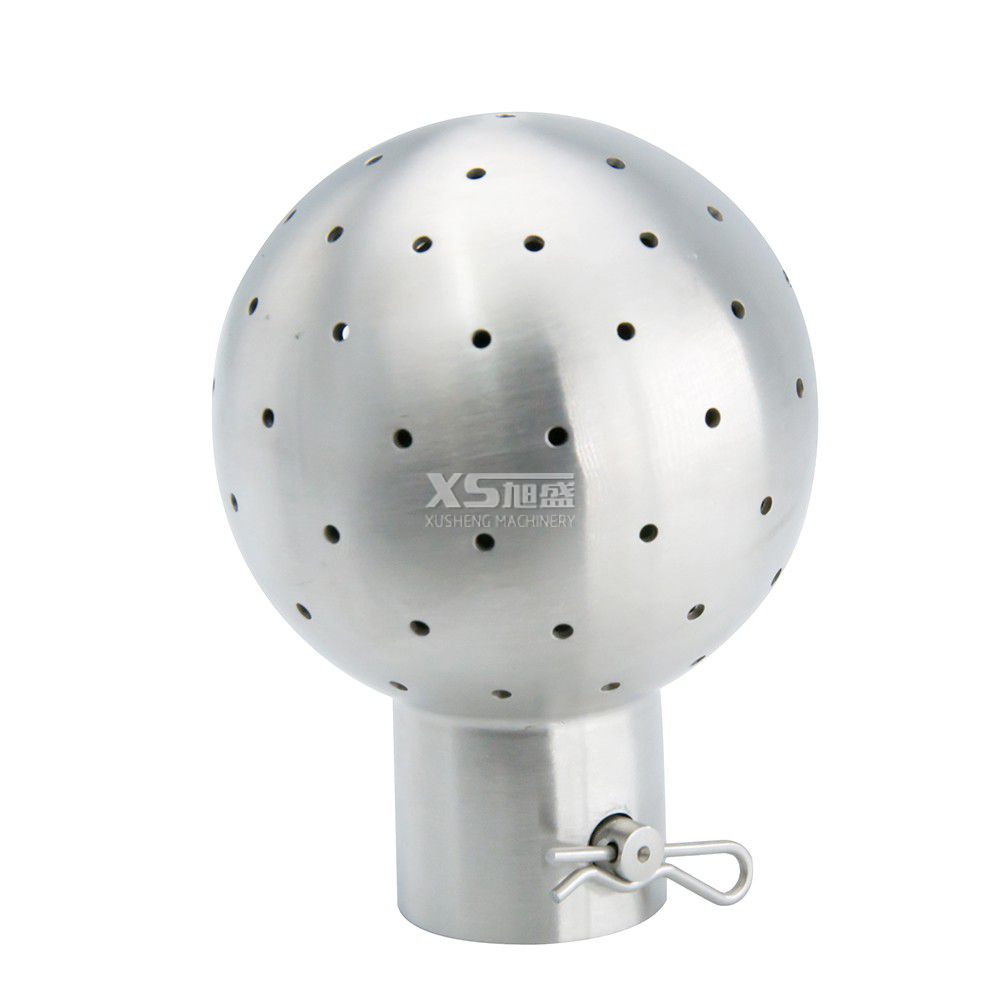

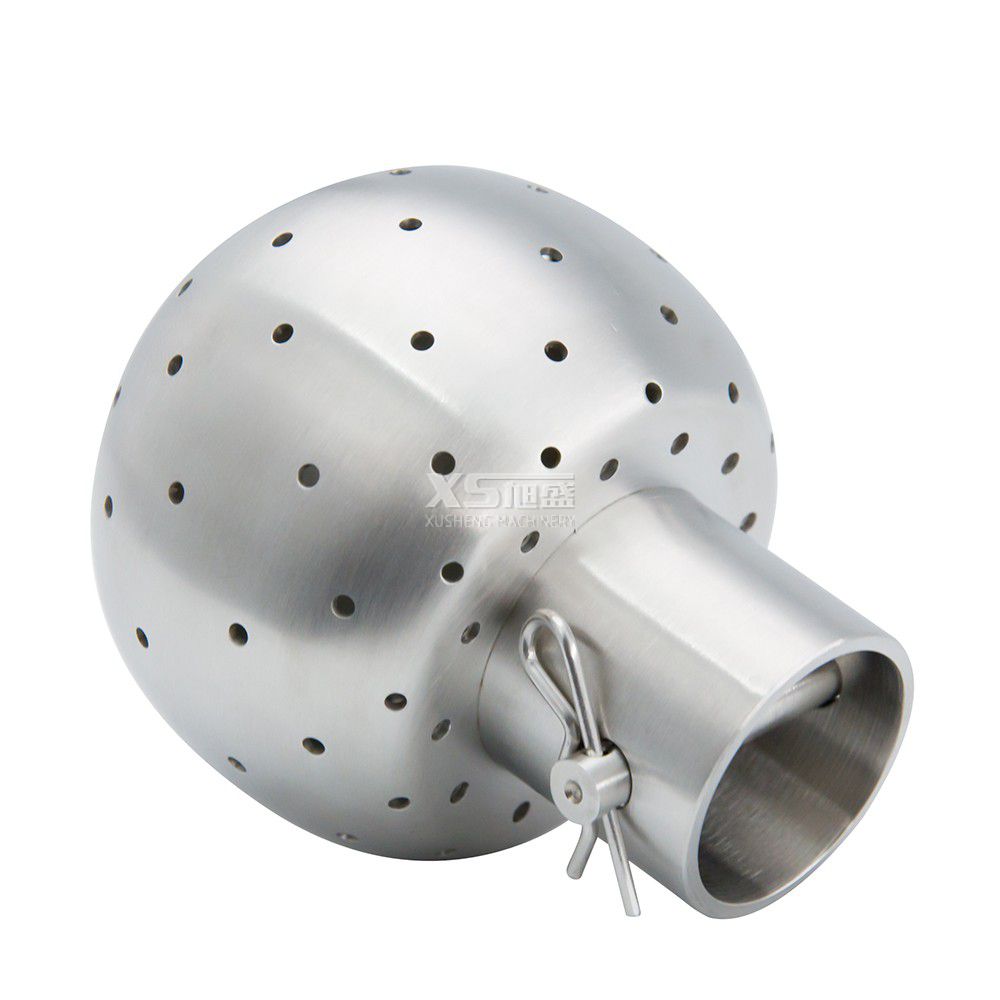

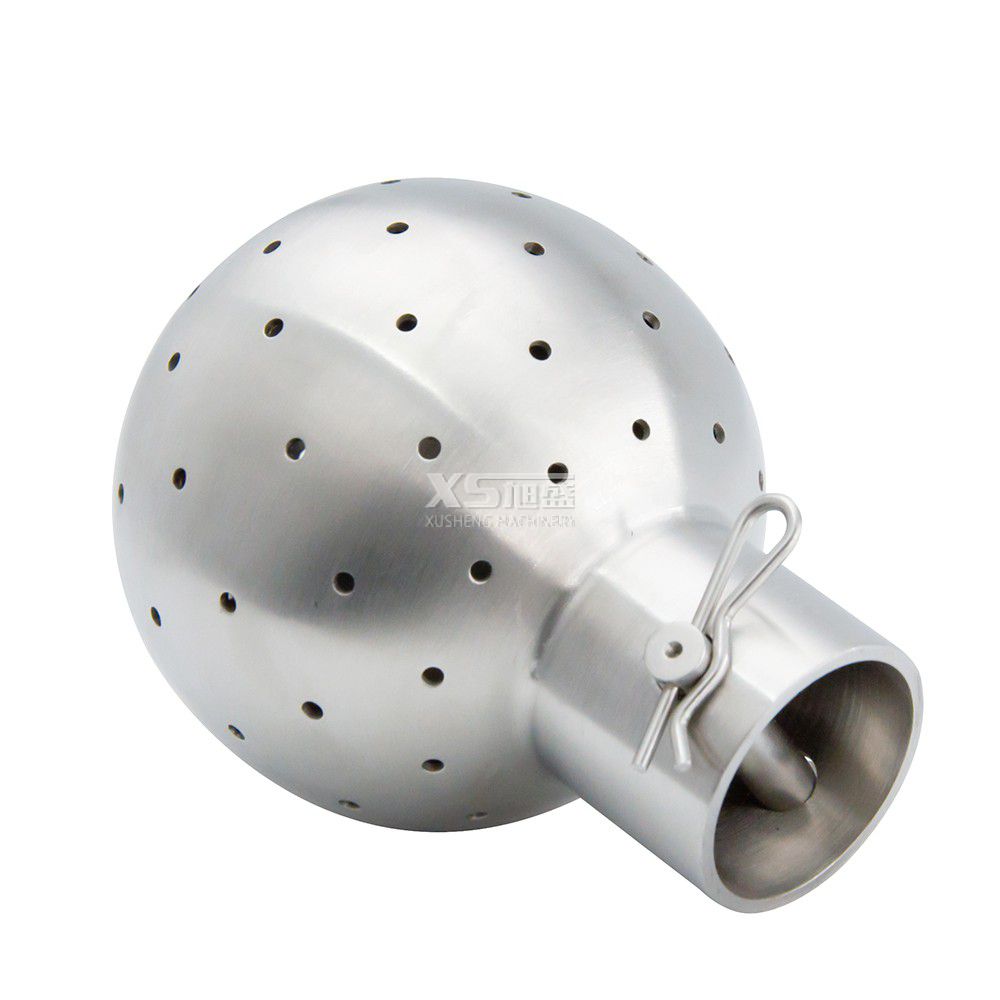

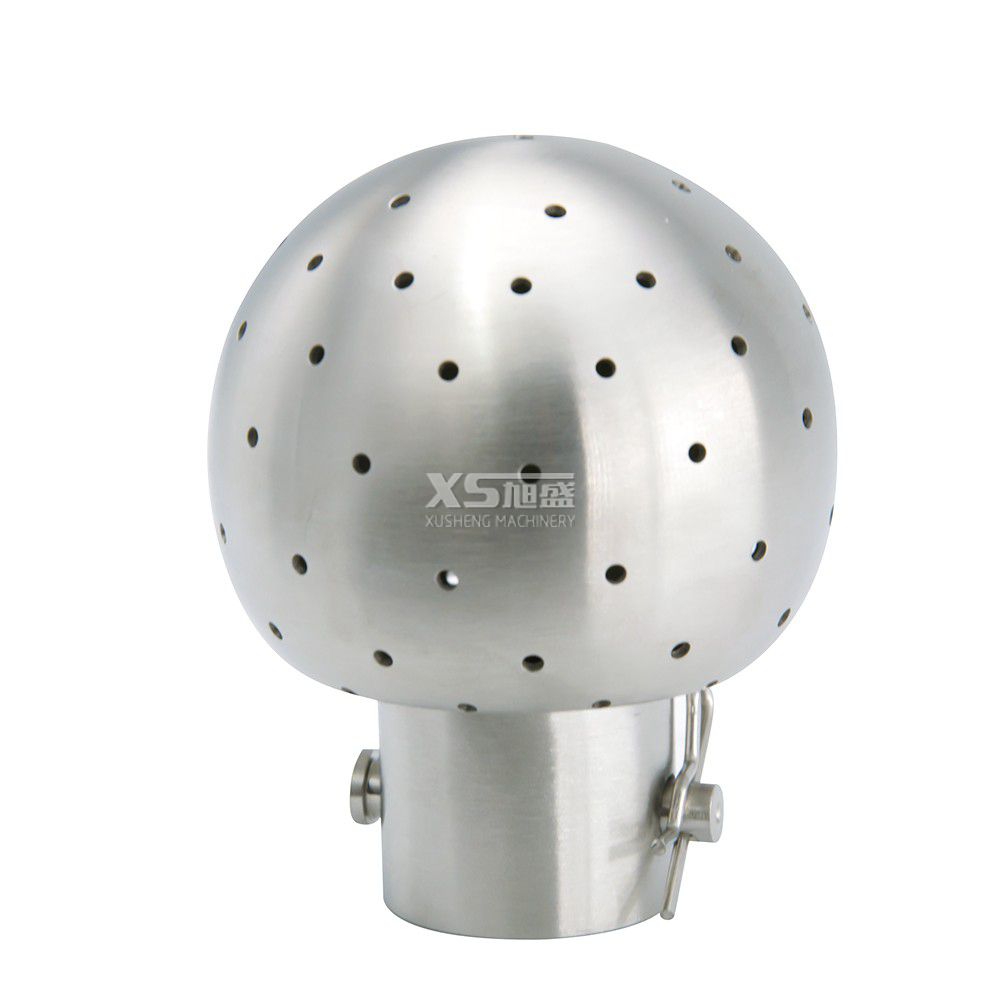

Stainless Steel Ss304 Double Tri Clamp Rotary Tank Washing Ball
All
- allAll
- titleTitle
- tsnNumber
- summaryContent
Subscribe free newsletter to get latest information.
Model NO.:D007002001D
Min. Order:1 Piece
Port:Ningbo, China
Production Capacity:5000sets/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type:Nozzle
Feature:Rust / Corrosion Proof
Certification:UR, UL, RoHS, ETL, CSA, CB, CE
Condition:New
Customized:Customized
Material Quality:AISI304(1.4301)/316L(1.4404)
HS Code:7307290000
Trademark:XUSHENG
Specification:ISO, 3A, SGS
Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case
Origin:Wenzhou City, China
Model NO.D007002001D
Availabe ConnectionButt-Weld,Threaded,Tri Clamped,Bolt
Temperature Range-20degree Celsius~135degree Celsius
Surface TreatmentMirror Polished and Dull Polished
Availably StandardDIN, SMS, 3A, Rjt, ISO/Idf
ConstructionRotary, Fixed,Double Rotary
Spray Angle360-Degree Pattern,180-Degree
Pressure (Bar)1.5~3bar
Fluxation (M3/H)12~38m3/H
HS Code7307290000
TrademarkXUSHENG
SpecificationISO, 3A, SGS
Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case
OriginWenzhou City, China
Products Name:Products Name:Stainless Steel Ss316L Self-Cleaning Tank Washing Nozzle
Sanitary Female Thread Washing Nozzle
Ss304 Sanitary Female Thread Washing Nozzle
Technical Parameter
| Availably standard | DIN, SMS, 3A, RJT, ISO/IDF |
| Material Quality | AISI304(1.4301)/316L(1.4404) |
| Specification | 1"~2.5",19-63MM |
| Availabe Connection | Butt-weld,threaded,tri clamped,bolt |
| Construction | Rotary, Fixed,Double Rotary |
| Surface Treatment | Mirror Polished and Dull Polished |
| Pressure | 1.5~3bar |
| Cleaning Radius | 1.25mm~2mm |
| Fluxation | 12~38m3/h |
| Spray angle | 360-degree pattern,180-degree |
Design feature
1.Double bearing design with excellent rotation effects,and better stability and long life bearing
2.Self-cleaning self-luvricating design
3.Cleaning without dead angle
4.Low consumption of liquid,operating under low pressure
5.Compliance with industry standard
Applications
Spray balls are mainly used to spray strongly and clean inside of tank,generally, in field of food-processing, beverage, beer, pharmaceutical industries.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
Advantages
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 0086-0577-85829985,Working Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
