DIN11850 Stainless Steel SUS304 Sanitation Grade Complete Union

Model NO.:D009001001D

Purchase Qty. / Reference FOB Price

1 SetUS $4-5 / Set

Min. Order:10 Sets

Port:Ningbo, China

Production Capacity:5000sets/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Material:Stainless Steel

Connection:Welding

Material Quality:SS304,SS316L

Available Standard:ISO, DIN11850,DIN11851, SMS,Idf

Size:Dn20-150 & 3/4"-6",19mm-152.4mm

Connection Standard:Welded

HS Code:8481804090

Trademark:XUSHENG

Specification:ISO, 3A, SGS

Transport Package:Shrink Wrap-Carton Case-Exporting Plywood Case

Origin:Wenzhou City, China

Basic Info

    Model NO.D009001001D

    Seat MaterialEPDM,Silione,Viton,PTFE,NBR

    Working Pressure8bar,0.08MPa

    Temperature Range-20degree Celsius~135degree Celsius

    Shape of NutHexagonal Shape,Round Shape

    Parts of Complete UnionLiner,Nut,Male and Gaskets

    Processing MachineForge Processing,Advance CNC Machine

    HS Code8481804090

    TrademarkXUSHENG

    SpecificationISO, 3A, SGS

    Transport PackageShrink Wrap-Carton Case-Exporting Plywood Case

    OriginWenzhou City, China

Product Description

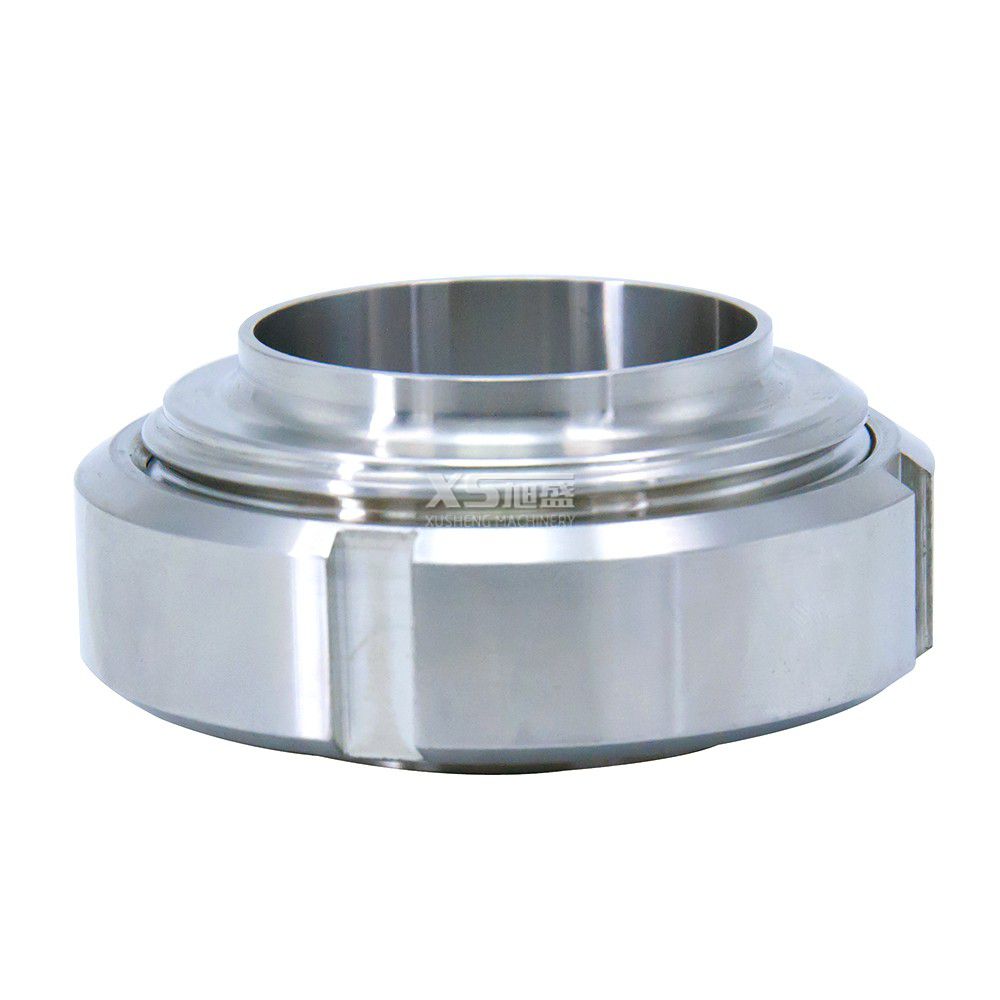

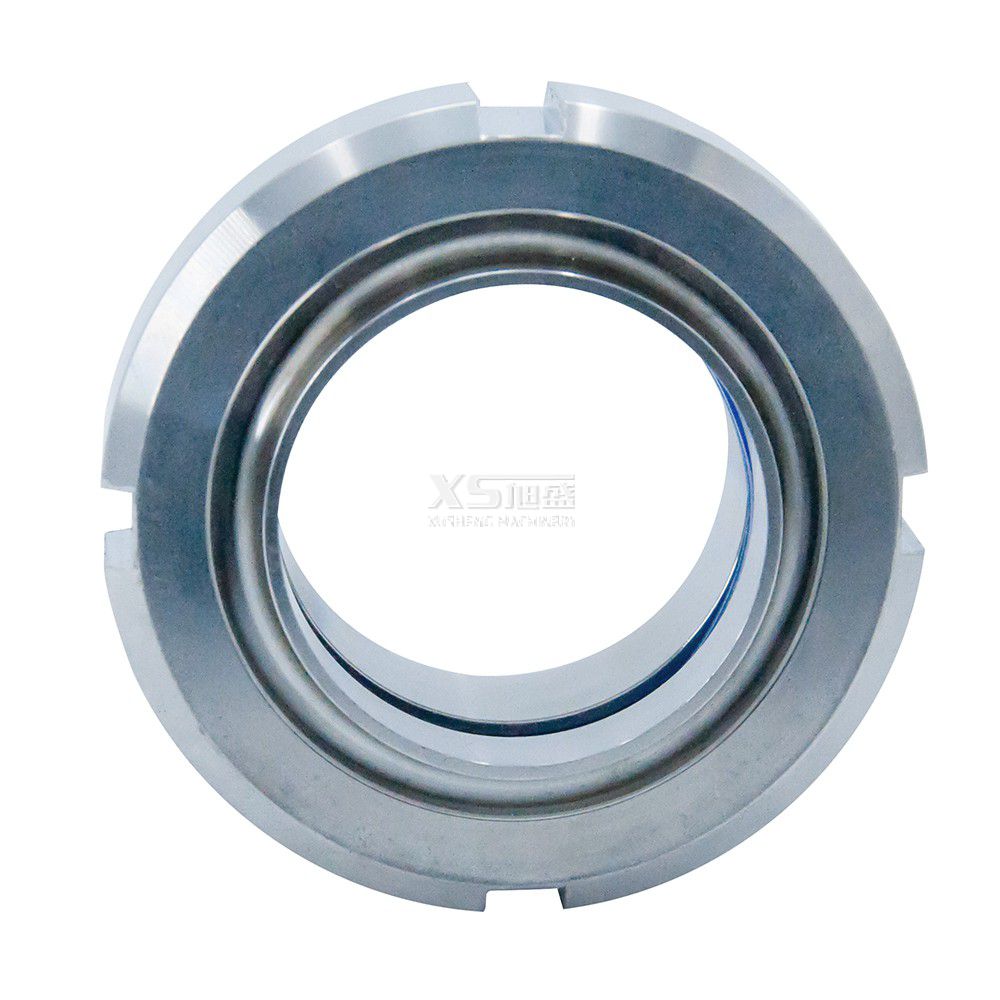

    Products Name:DIN11850 Stainless Steel SUS304 Sanitation Grade Complete Union

    stainless steel sus304 sanitation grade complete union
    sus304 sanitation grade complete union



    Technical Parameter

    Material Ss304,Ss316L
    Specification Dn20-150 & 3/4"-6",19MM-152.4MM
    Standard ISO, DIN11850,DIN11851, SMS,IDF
    Connection Welded,

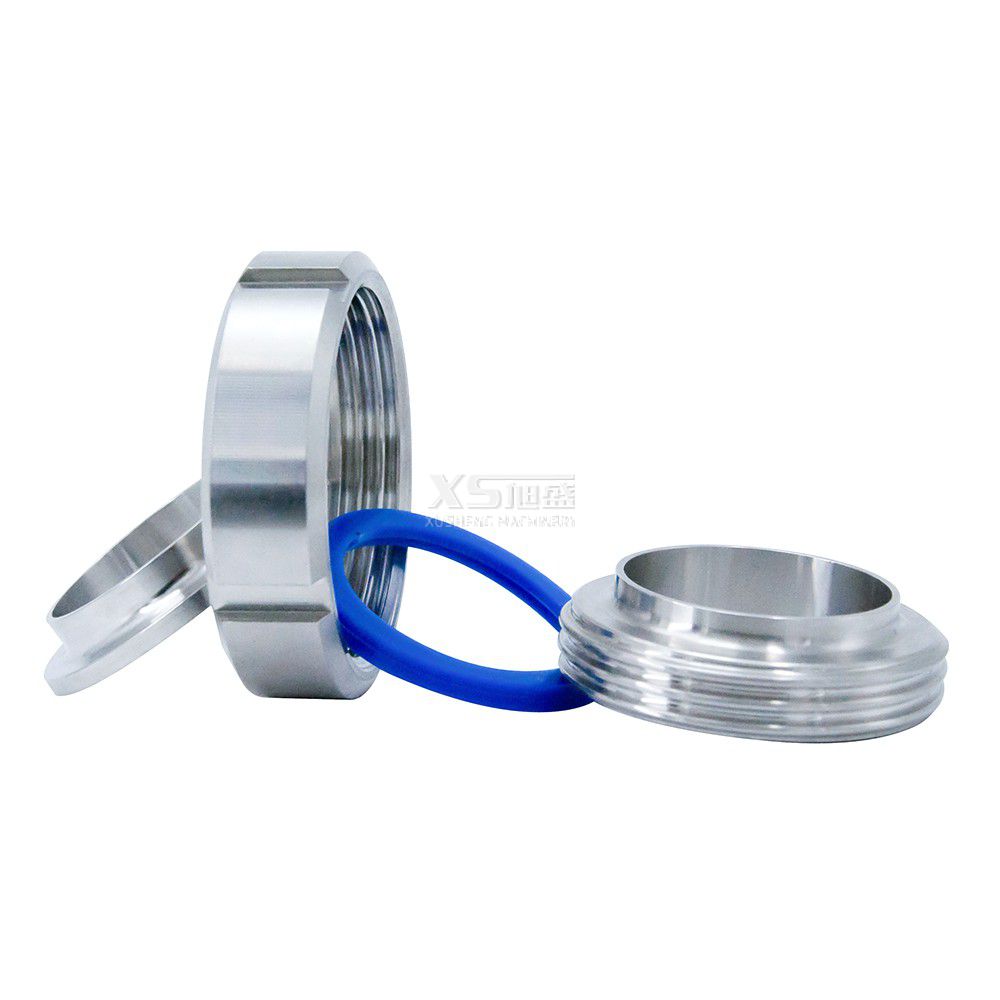

    Parts of complete union Liner,nut,male and gaskets
    Shape of nut Hexagonal shape,Round shape
    Seat material EPDM,Silione,Viton,PTFE,NBR
    Working Pressure 8bar,0.08MPa
    Body construction Forge Processing,Advance CNC Machine
    Temperature -20degree celsius~135degree celsius



    Applications

    It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



    Advantage of Union

    (1)It is suitable for flexible and easy maintenance.
    (2)It is especially suited for processes where the load on seals is extra high, where easy control and replacement of seals is necessary and where optimal cleaning is required.In order to sustain high quality, it is importance that the products are uniform. Therefore tolerance and thickness are carefully controlled.



    Product application

    Comyany information

    Packaging Shipping

    Our Service

    On Samples Buyer bear the air fee, but this fee will be reduced from order directly
    On After Sales Free replacement if there is any quality problem
    On Delivery Never delay delivery time
    On Materials Ensure material pure
    Ensure material pure Welcome  to order our products



    FAQ

    Q: May I have free samples before ordering?
    Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

    Q: What’s the MOQ?
    The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

    Q: Does your company have the export license?
    Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

    Q: What’s the payment term?
    For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
    For mass orders, we accept T/T and L/C.

    Q: How would you minimize damages during delivery?
    Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
    Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

    Q: How would you choose the shipment way?
    Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
