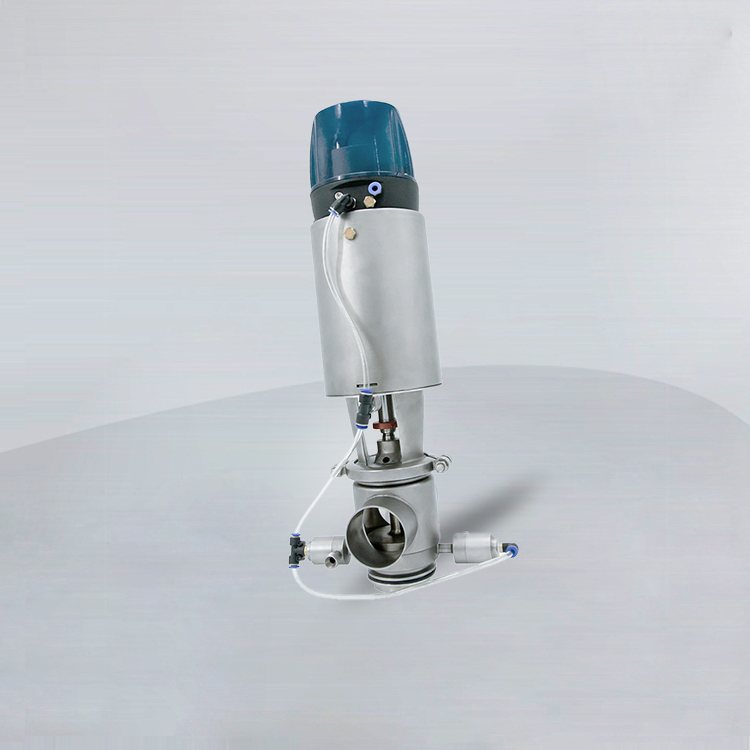

Stainless Steel Hygienic Mixproof Valves with CIP Recover
Model NO. D001015001D
FOB Price US $1000 / Piece
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 1000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Size 1/2"~4",Dn10~Dn100
Flow Medium Parts 304,304L,316L (1.4301,1.4307,1.4404)
Connection Ends Butt-Welded,Tri Clamp,Male and Female Threa
Actuator Pneumatic Ss Actuatorelectric Actuator,Manual
Continuous Working Temperature -20 ~ 135degree Celsius(EPDM)
Working Pressure 0~10bar (Standard)
TAG Sanitary Pneumatic Shut off Valves Stainless Steel Pneumatic Mix-Proof Valves Sanitary Inlelligent Pneumatic Mix-Proof Valves
Inquiry
Basic Info

    Model NO. : D001015001D

    Position Sensor : 24V DC,NPN/PNP Position Sensor (2)

    Flow Type : L,L/L,T/L,T,L/T,T/T

    Connection Standard : DIN, 3A, SMS, Rjt, Idf

    HS Code : 8481804090

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

Product Name:Stainless Steel Hygienic Mixproof Valves with CIP Recover

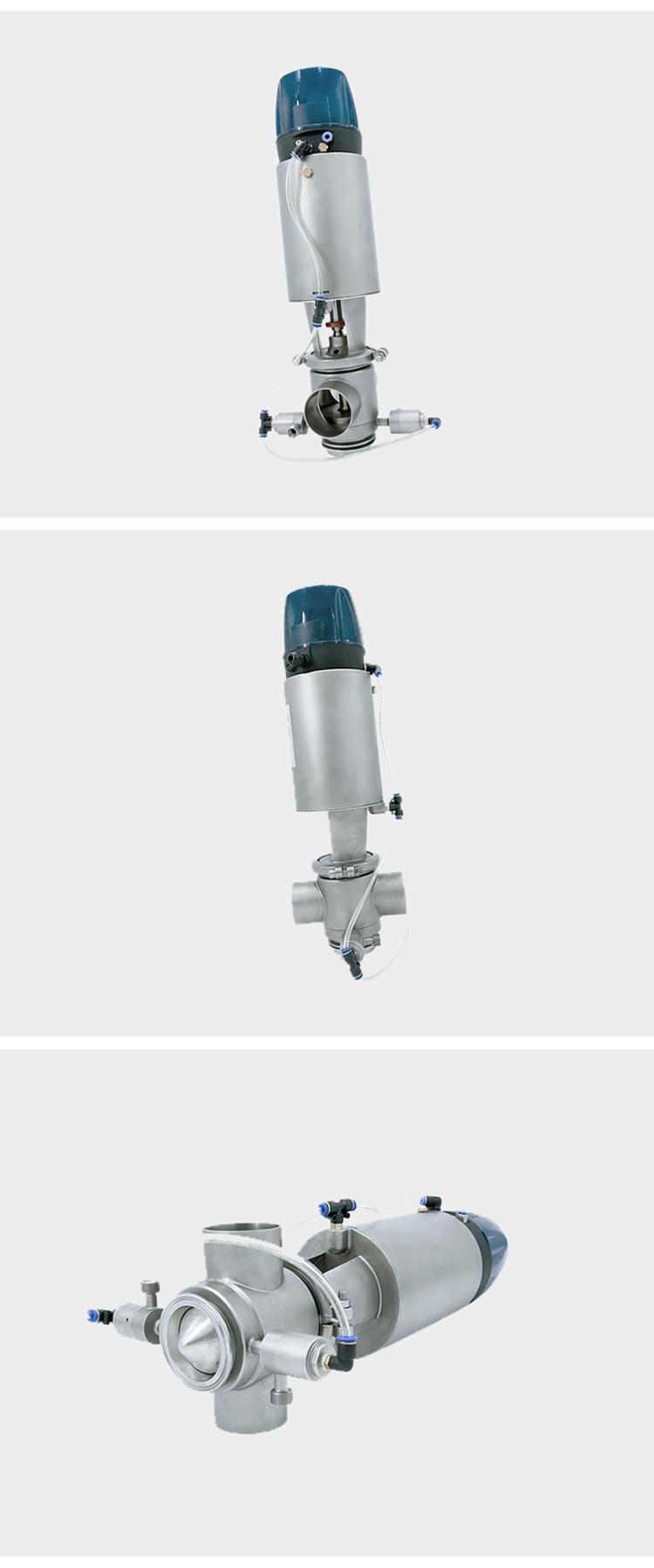

Hygienic Mixproof Valves
Mixproof Valves with CIP Recover
SMP-BC Mixproof Valve

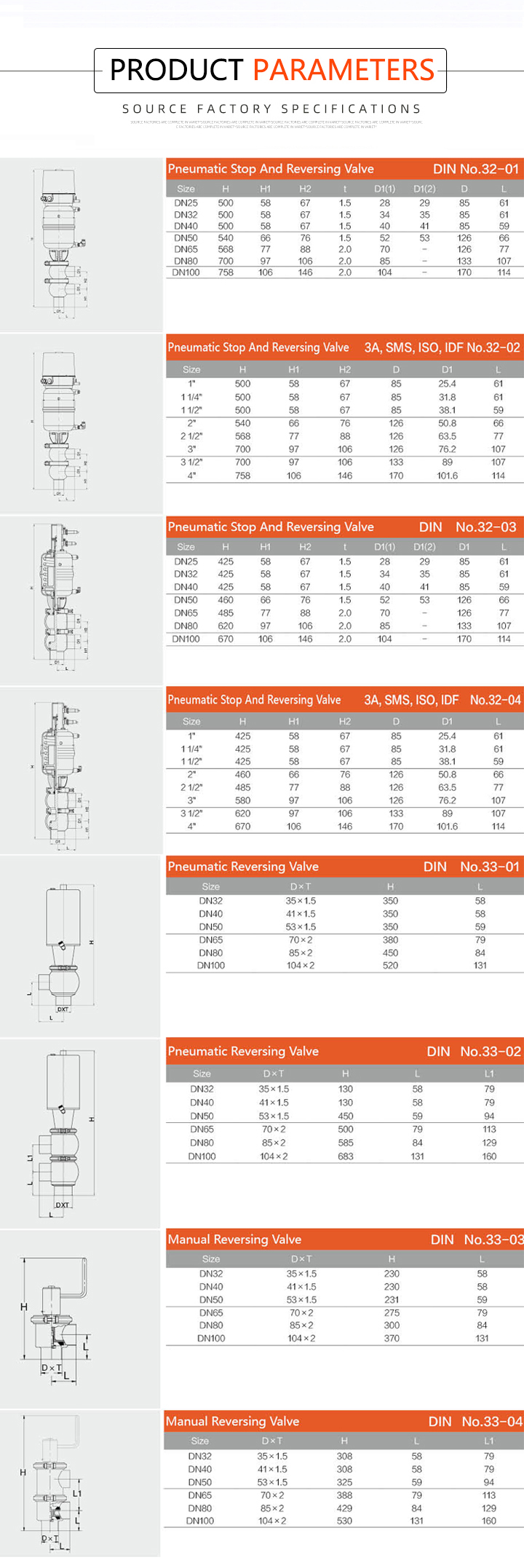

Technical Parameter

Size available 1/2"~4",DN10~DN100
Max. working pressure 147psi (10bar)
Control air pressure 70 ~ 116psi (5 ~ 8bar)
Working temperature range EPDM:-20 ~ 135°C
Sterilization temperature 150°C, Max. 20 min
Pneumatic connection R1/8" (BSP)
Finish Surface <32Ra (<0.8um); Other finishes available upon request.
End connections butt welded,tri clamp,male and female
Standard DIN, 3A, SMS, RJT, IDF or others upon request
Flow Medium Parts 304,304L,316L (1.4301,1.4307,1.4404)





Applications

Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.



Operating Principle

Sanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative
position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.
Sanitary reversing valve can
be installed with smart controller.



Comyany information

Packaging Shipping

Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  to order our products



FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.

FAQ



Related Video
Related Files
NO. Name File Detail Size Down
Related products

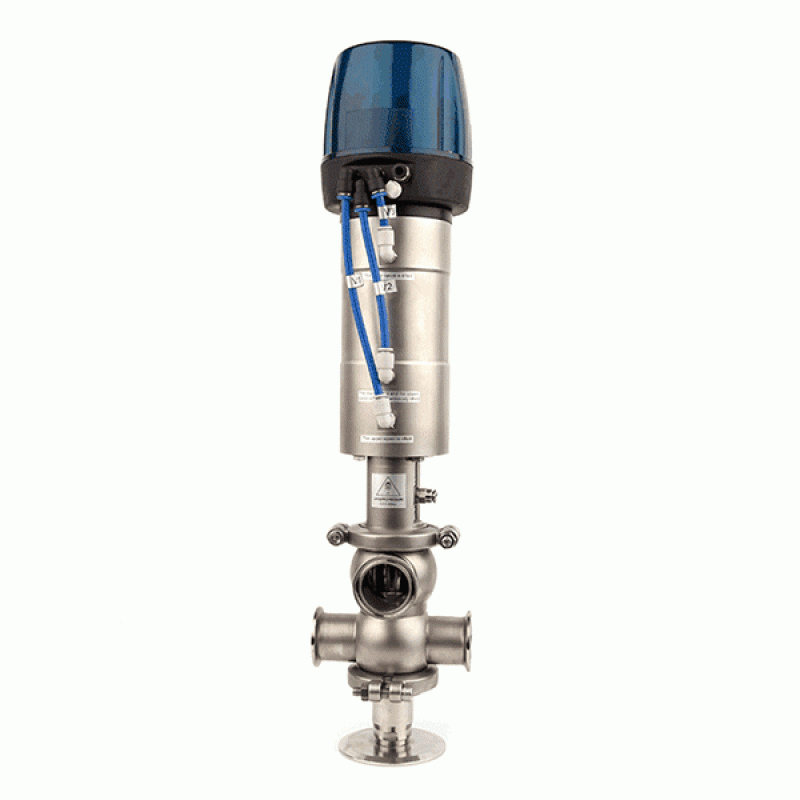

Gif

upfile/goods/D001-Sanitary_Valves/D001015-Mixproof_Valves/PIC_Single_Seat_Mixproof_Valve_With_External_Cleaning_01.gif

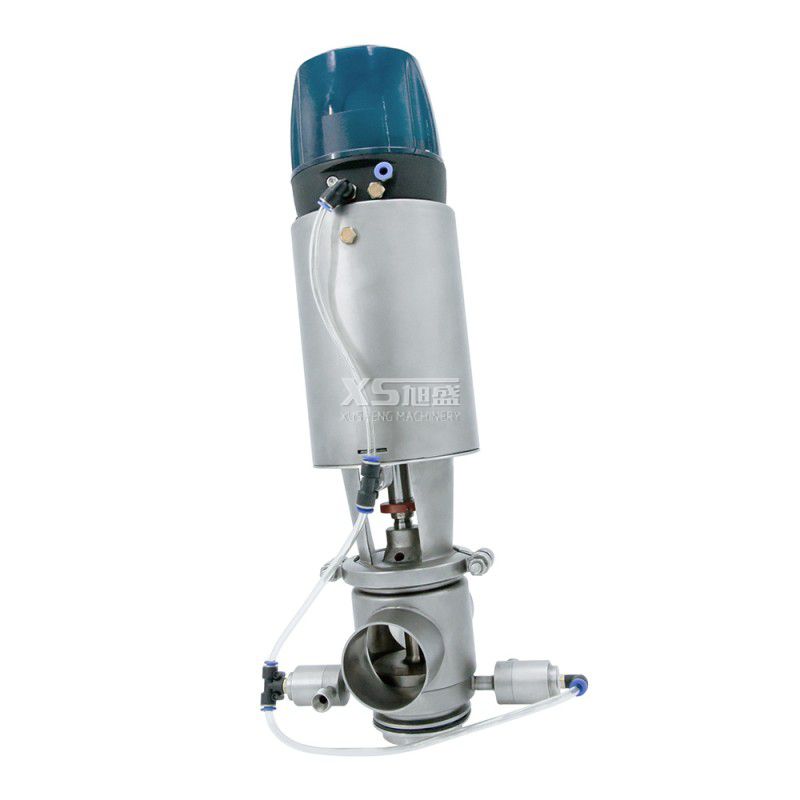

Stainless Steel Hygienic Mixproof Valves with CIP Recover

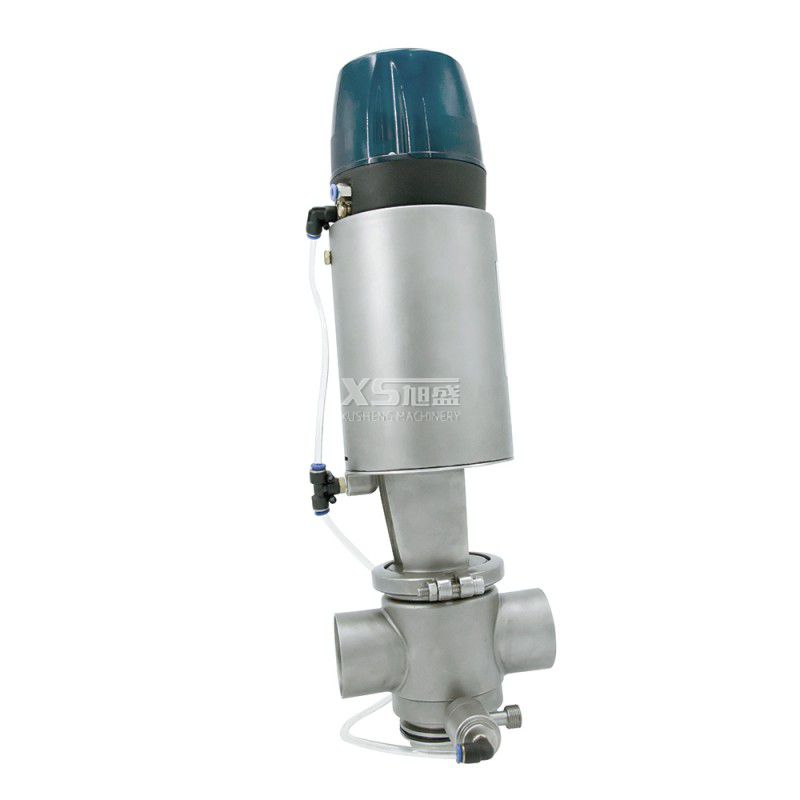

Stainless Steel Hygienic Mixproof Valves with CIP Recover
