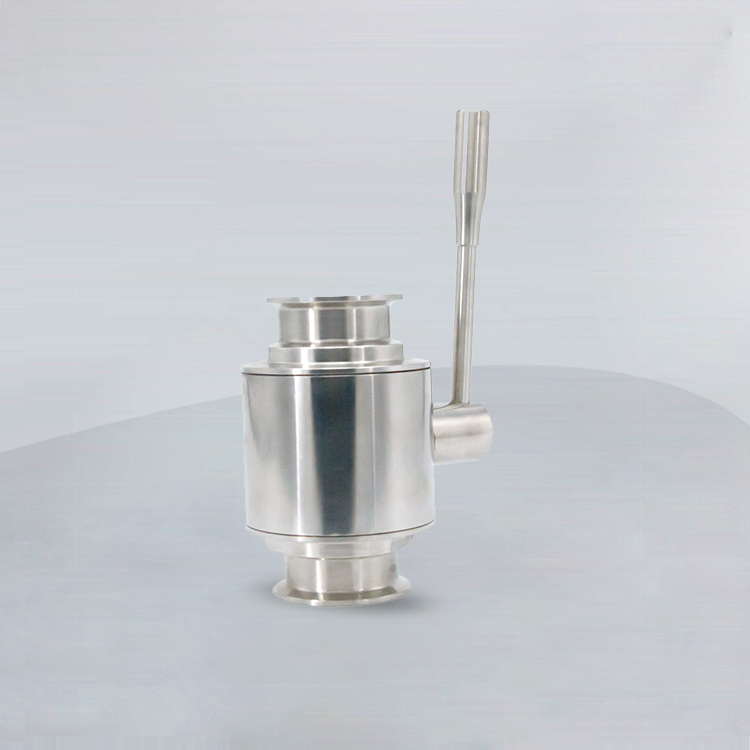

Stainless Steel Sanitary Tc Tri Clamp Straight Ball Valve
Model NO. D001006001005D
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 5000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material Stainless Steel
Connection Form Tri Clamp Ends
Driving Mode Manual
Nominal Pressure 0~10bar ,0~0.1MPa
Channel Straight Through Type
Structure Flexible Ball Valve
TAG Straight Ball Valve Sanitary Ball Valve Stainless Steel Sanitary Tc Tri Clamp Straight Ball Valve
Inquiry
Basic Info

    Model NO. : D001006001005D

    Type : Flexible Ball Valve

    Function : Bypass-Valve

    Temperature : Normal Temperature

    Application : Milk,Juice

    Material Quality : SS304,SS316L

    Available Standard : ISO, DIN, 3A,SMS etc

    Size : Dn25-100 & 1"-4"

    Connection : Welded, Clamped, Threaded, Flanged

    Working Principal : Manual Operation or Driving Device Operation

    Body Construction : 3-Piece Precision Cast Body

    Flow Pattern : Straight

    Seat Material : PTFE, PCTFE, Peek or Upon Your Request

    Working Pressure : 8bar,0.08MPa

    Temperature Range : -20degree Celsius~135degree Celsius

    HS Code : 8481804090

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

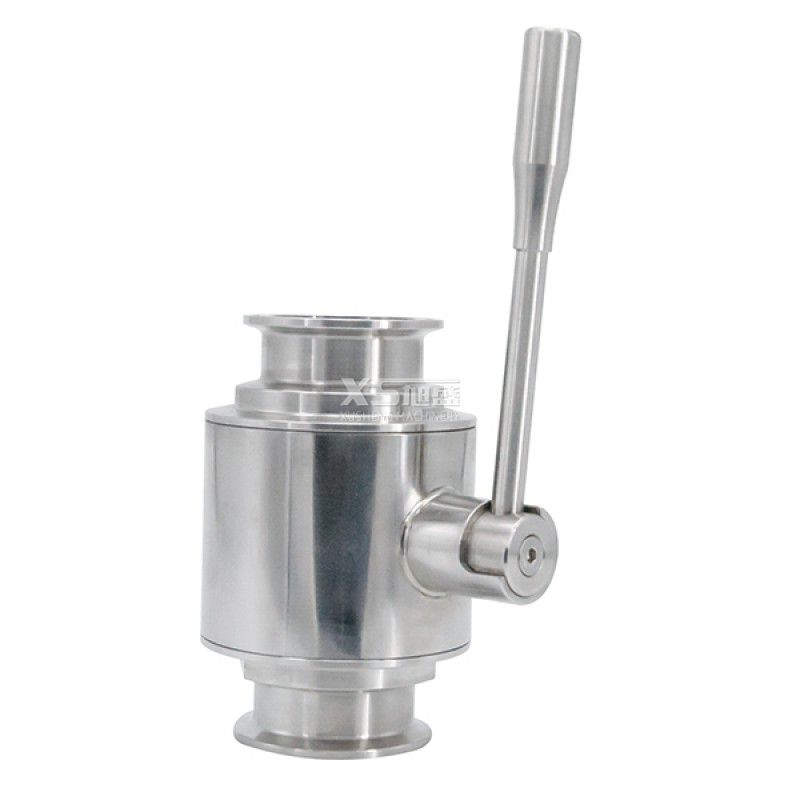

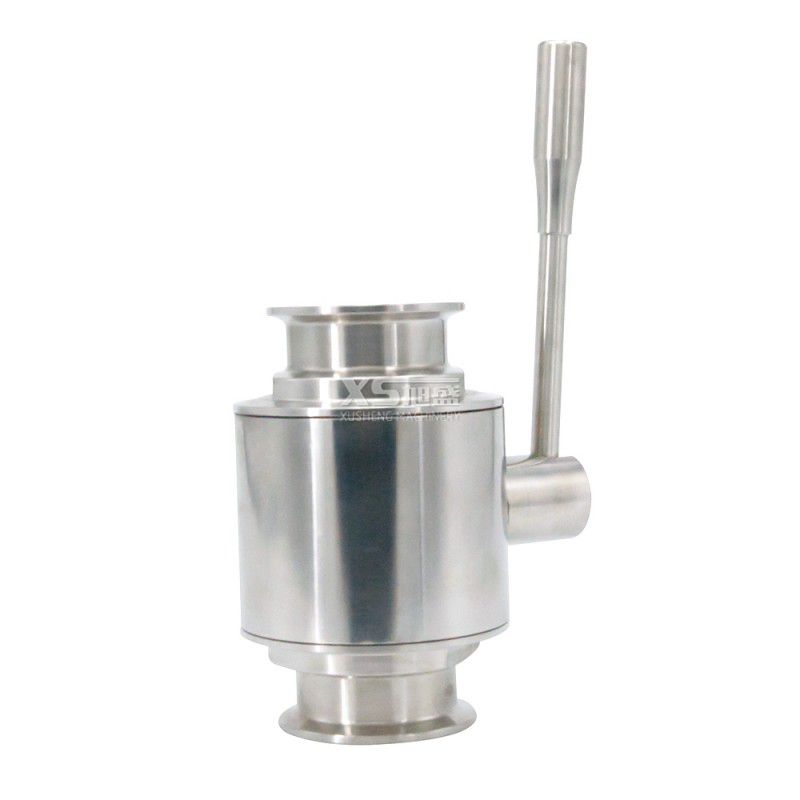

Products Name:Stainless Steel Sanitary TC Tri Clamp Straight Ball Valve

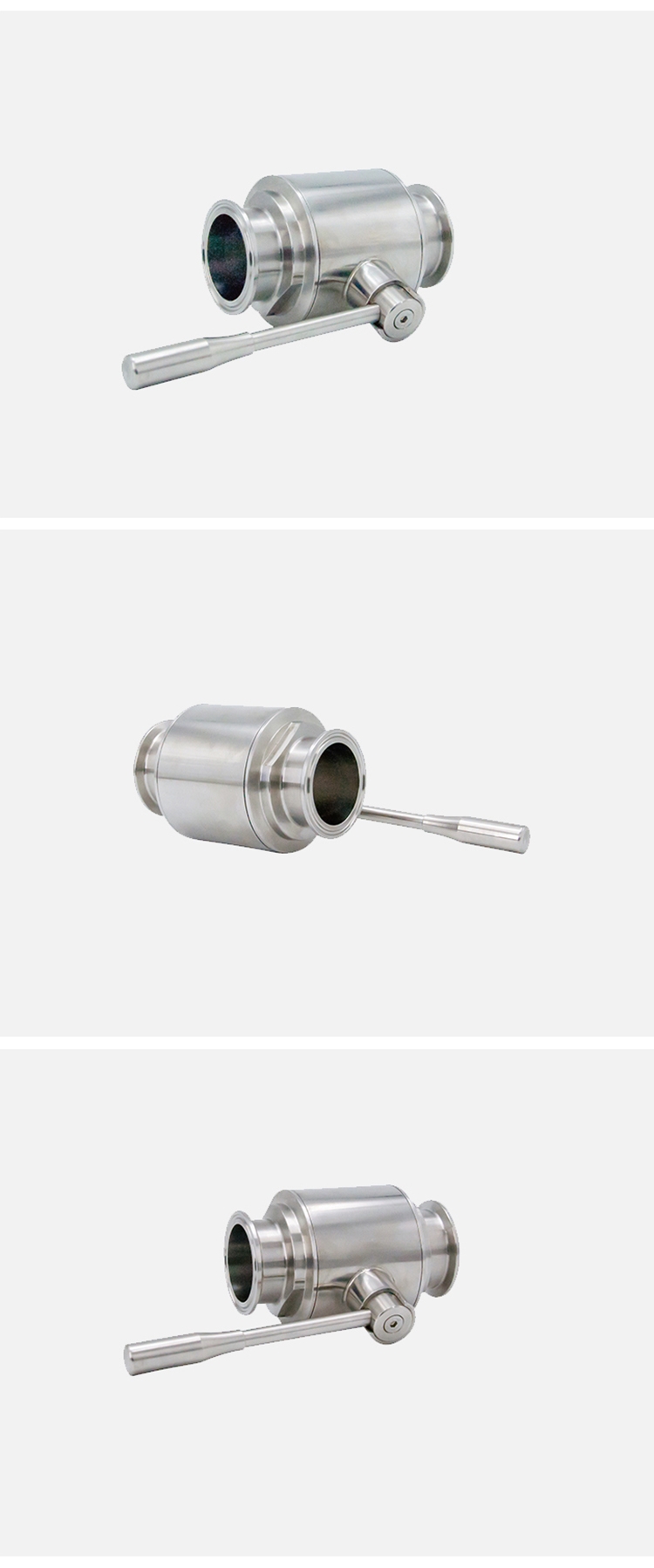

Tri Clamp Straight Ball Valve
Tri Clamp Ball Valve



Technical Parameter

Standard SMS,DIN,3A,IDF,ISO
SMS,DIN,3A,IDF,ISO SS304,SS304L,SS316,SS316L
Size 3/4"~6",DN19~DN150
Seal ring of stem EPDM. VITON OR SILICON is required
Connection ends Butt-welded,clamped,male ends,union ends
External surface  Bright gloss,dull gloss
Bright gloss,dull gloss Manual
Working temperature -20Celsius degree~+135Celsius degree
 Max. working pressure 10Bar



Applications

Sanitary three piece ball valve is widely applied to pipeline and equipment control.It is widely used in brewing industry.



Packaging Shipping

Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  to order our products



FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
