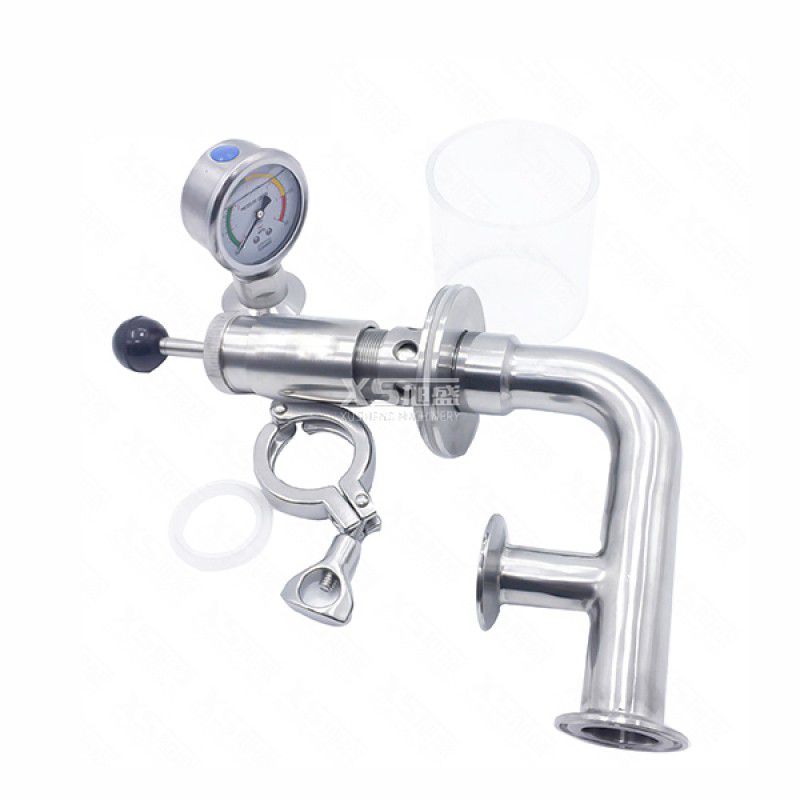

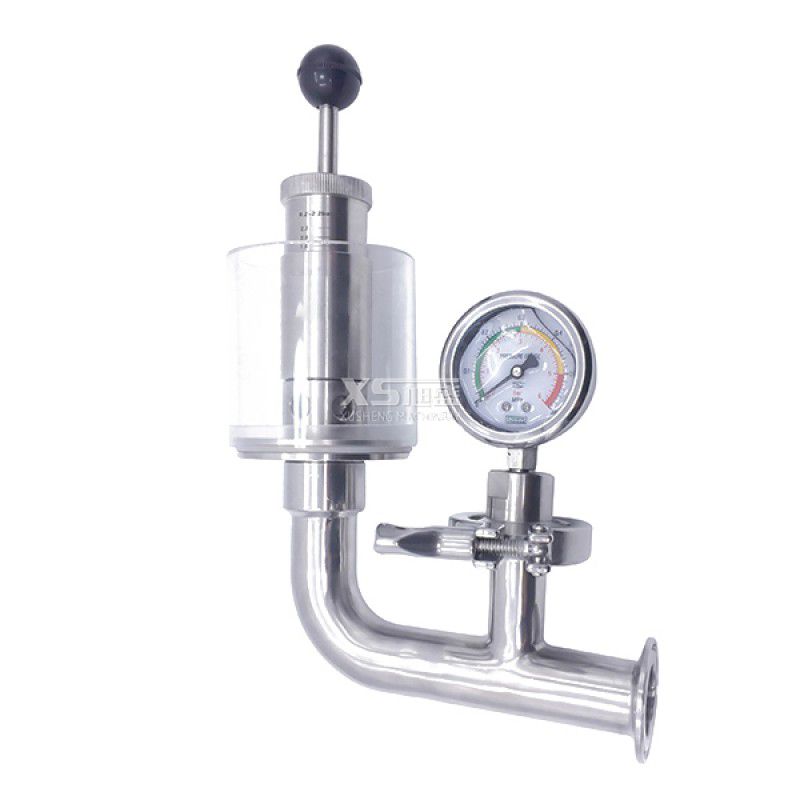

Hygienic Sanitary Stainsteel Steel Tri Clamp Air Exhaust Valve Release Valve with Pressure Gauge
Model NO. D001008001D
FOB Price US $4.35-20.29 / Piece
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 1000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Media Liquid Material, Gas
Standard ISO, 3A, SGS, Ce
Certification CCC, ISO, CE
Temperature Low Temperature
Connection Thread
Pressure Adjustable
TAG Air Relief Valve Safety Valve Pressure Relief Valve Food Grade Clamp Safety Valve Sanitary Pressure Expansion Safety Valve Hygienic Pressure Reduce Safety Valve Sanitary Clamp Pressure Relief Safety Valve Hygienic Reduce Expansion Safety Valve
Inquiry
Basic Info

    Model NO. : D001008001D

    Closed : Closed

    Structure : Spring

    Material : Stainless Steel

    Stainless Steel : SS304, SS316L

    Size : Dn15-Dn50, 3/4"-2 1/2", 19mm-63mm

    Connection Standard : Tri Clamp(50.5mm, 64mm)

    Working Pressure : 6bar

    Sealing : Food Rubber

    Pressure Control Range : 0.5-6 Bar

    External Surface : Shot Blasting

    Connection Ends : Male Ends, Tri Clamp Ends, Welded Ends

    Surface Treatment : Ra 0.8um

    HS Code : 8481804090

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

Products Name: Hygienic Sanitary Stainsteel Steel Tri Clamp Air Exhaust Valve Release Valve with Pressure Gauge

Stainless Steel SS304 Hygienic Tri Clamp Air Exhaust Valve Release Valve with Pressure Gauge
Release Valve with Pressure Gauge



Technical Parameter

Material  SS304
 Standard:  DIN,SMS,ISO,IDF,3A
 Size:  1"-3"/DN25-50
 Connection Way:  Weld, Clamp,Thread,Union
 Temperature of Media:  Normal Temperature
 Pressure:  1-6Bar
 Operated:  Pneumatic



Features

  • Available in dead weight or spring loaded design
  • Fast acting, quick opening
  • Gas tight design
  • Choice of materials as per the fluid medium.
  • From 1 ½" to 2" size
  • Economically priced



Stainless Steel Sanitary Tri Clamp Pressure Relief Valves work in the following ways-- From the Vacuum side, when the valve is normally closed and there is vacuum in the tank, the vacuum piston inside the valve opens automatically and draws air into the tank. In return, this keeps the pressure inside and outside the tank balanced. From the Pressure side, when the valve is normally closed and the tank pressure exceeds the rated pressure on the outside of the valve, the valve automatically opens and vents air to atmosphere.





Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
