25.4mm Stainless Steel Ss304 Sanitary Hygienic Safety Release Valve
Model NO. D001007007D
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 1000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Temperature Ordinary Temperature
Connection Form Thread
Pressure Adjustable
Closed Closed
Structure Spring
Material Stainless Steel
TAG Safety Valve Pressure Relief Valve Hygienic Pressure Reduce Safety Valve Sanitary Clamp Pressure Relief Safety Valve Food Grade Pressure Relief Valve Customized Size Pressure Relief Exhaust Valve Vacuum or Air or Pressure Release Valve
Inquiry
Basic Info

    Model NO. : D001007007D

    Material Quality : Ss304, Ss316L

    Connection of Standard : DIN, 3A, SMS, ISO

    Size : Dn25-Dn50,25.4mm-50.8mm

    Working Pressure : 6bar

    Connection Ends : Male Ends, Tri Clamp Ends, Welded Ends

    Pressure Control Range : 0.5-6 Bar

    Sealing : Food Rubber

    Medium Temperature : -10 Celsius Degree-+120 Celsius Degree

    Medium : Liquid Material, Gas

    Surface Treatment : Ra 0.8um

    HS Code : 8481804090

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

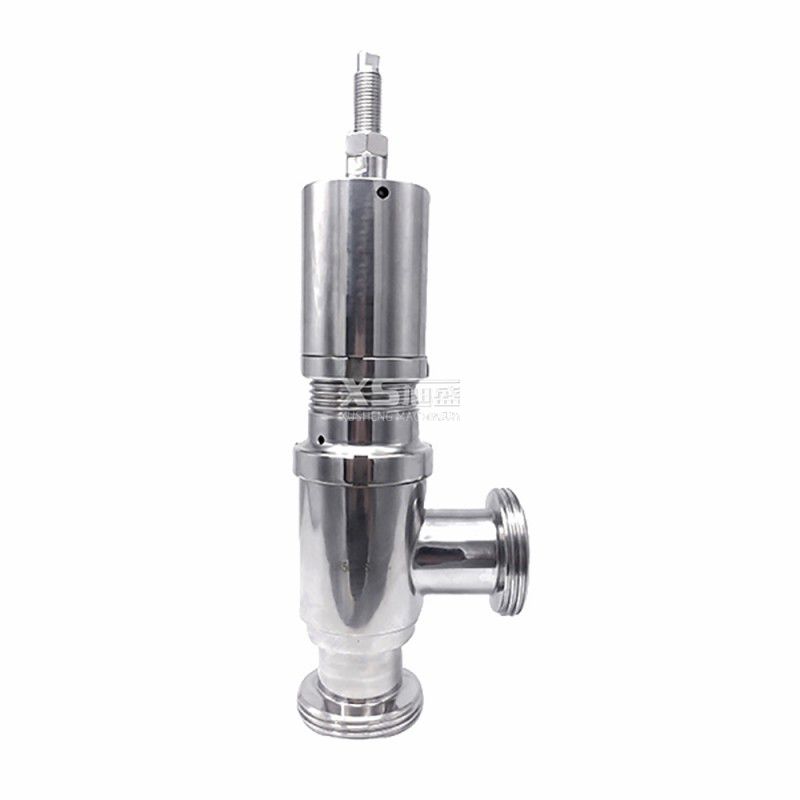

Products Name:25.4mm Stainless Steel Ss304 Sanitary Hygienic Safety Release Valve

Stainless Steel Sanitary Pressure Relief Valve
Stainless Steel Sanitary Pressure Relief Valve



Technical Parameter

Pressure 2.8 PSI to 43.5 PSI
Medium Temperature -10 celsius degree-+120 celsius degree
Medium liquid material,gas
Sealing Food Rubber
Material Quality SS304,SS316L
Connection of Standard DIN,3A,SMS,ISO
Connection ends Male ends,Tri clamp ends,Welded ends
Surface treatment Ra 0.8um



Features

  • Available in dead weight or spring loaded design
  • Fast acting, quick opening
  • Gas tight design
  • Choice of materials as per the fluid medium.
  • From 1 ½" to 2" size
  • Economically priced



Stainless Steel Sanitary Tri Clamp Pressure Relief Valves work in the following ways-- From the Vacuum side, when the valve is normally closed and there is vacuum in the tank, the vacuum piston inside the valve opens automatically and draws air into the tank. In return, this keeps the pressure inside and outside the tank balanced. From the Pressure side, when the valve is normally closed and the tank pressure exceeds the rated pressure on the outside of the valve, the valve automatically opens and vents air to atmosphere.





Product application

Applications

Stainless Steel Sanitary Tri Clamp Pressure Relief Valves are safety devices required for storage tanks/containers/gas or vapor pipe lines/ reactors etc. having chemicals or any other fluid to be handled carefully.Breather valves with desiccants are used during transportation of sensitive equipments/ goods to protect from pressure differentials due to change in climatic conditions.

COMBUSTION RESEARCH ASSOCIATES manufactures Pressure Vacuum Relief Valves (PVRV), Breather Valves, Safety Relief Valves and Vacuum Breaker Valves of wide range to meet the industry requirements. In case of combustible fluids storage the safety valves should be used along with flame arrestors.
