| Model NO. | D005002001D |
| Min. Order | 1 Piece |
| Port | Ningbo, China |
| Production Capacity | 5000sets/Month |
| Payment Terms | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
| Material Quality | SS304, SS304L ,SS316, SS316L |
| Availabe Standard | SMS,DIN,AAA,ISO,Idf |
| Temperature Range | -20degree Celsius~135degree Celsius |
| Seal Material | Silicone, EPDM, Viton, NBR |
| Mesh Size&Microns | 3-400mesh&6730-37microns |
| Pressure Range | 1.5~3bar |
| TAG | Sanitary Angular Strainer with Mesh Filter Cartridge、 |
Model NO. : D005002001D
Structure : Staringht Type,Angle Type,Y Type
Availabe Connection : Welding Ends,Triclamp Ends,Union Ends,Male Ends
Application : Milk,Juice,Beer,Beverage,Pharmacy,Ect
HS Code : 8481804090
Trademark : XUSHENG
Specification : ISO, 3A, SGS
Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case
Origin : Wenzhou City, China

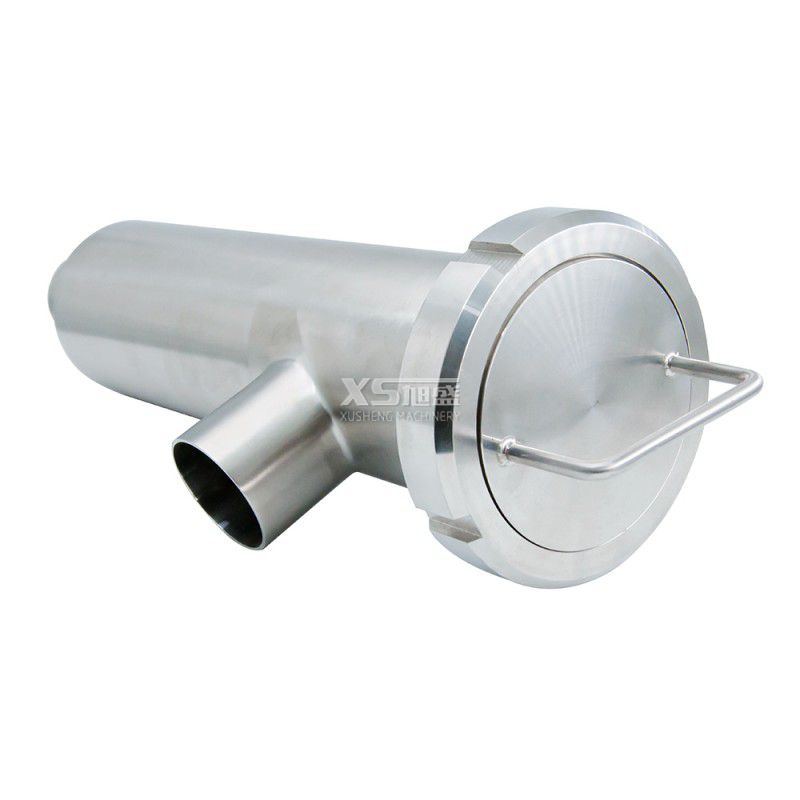

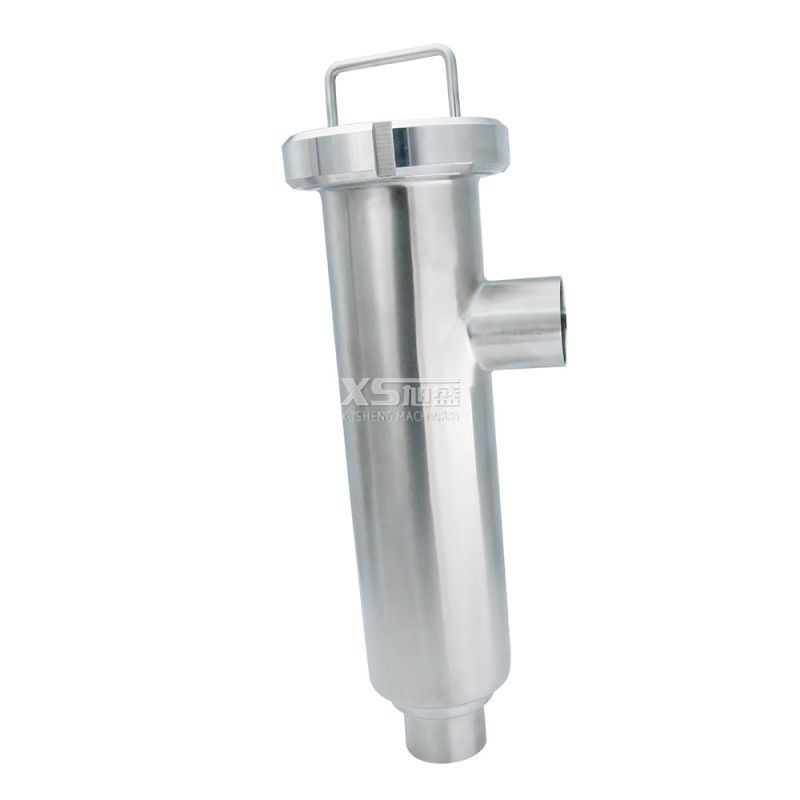

Product name:4" Stainless Steel 316L Hygienic Angle Filter Strainer with Perforated Plate Screen
Hygienic Butt-Weld Y Filter Stainer
Stainless Steel Sanitary Butt-Weld Y Filter Stainer
Technical Parameter
| Availably standard | SMS,DIN,AAA,ISO,IDF |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Specification | 1"-4",DN25-DN100,25.4mm-101.6mm |
| Availabe Connection | Welding ends,triclamp ends,union ends,male ends |
| Seal Material | Silicone, EPDM, Viton, NBR |
| Mesh Size&Microns | 3-400mesh&6730-37microns |
| Structure | Staringht type,Angle type,Y type |
| Pressure range | 0bar~10bar |
| Machine Processing | The most advanced CNC machine from Japan for processing |
| Continuous working temperature | 20°C ~ +135°C (EPDM,Silicone) |
| Special Design | we can produce according to your drawings |
MESH TO MICRON CONVERSION CHART
| U.S. MESH | INCHES | MICRONS | MILLIMETERS |
| 3 | 0.2650 | 6730 | 6.730 |
| 4 | 0.1870 | 4760 | 4.760 |
| 5 | 0.1570 | 4000 | 4.000 |
| 6 | 0.1320 | 3360 | 3.360 |
| 7 | 0.1110 | 2830 | 2.830 |
| 8 | 0.0937 | 2380 | 2.380 |
| 10 | 0.0787 | 2000 | 2.000 |
| 12 | 0.0661 | 1680 | 1.680 |
| 14 | 0.0555 | 1410 | 1.410 |
| 16 | 0.0469 | 1190 | 1.190 |
| 18 | 0.0394 | 1000 | 1.000 |
| 20 | 0.0331 | 841 | 0.841 |
| 25 | 0.0280 | 707 | 0.707 |
| 30 | 0.0232 | 595 | 0.595 |
| 35 | 0.0197 | 500 | 0.500 |
| 40 | 0.0165 | 400 | 0.400 |
| 45 | 0.0138 | 354 | 0.354 |
| 50 | 0.0117 | 297 | 0.297 |
| 60 | 0.0098 | 250 | 0.250 |
| 70 | 0.0083 | 210 | 0.210 |
| 80 | 0.0070 | 177 | 0.177 |
| 100 | 0.0059 | 149 | 0.149 |
| 120 | 0.0049 | 125 | 0.125 |
| 140 | 0.0041 | 105 | 0.105 |
| 170 | 0.0035 | 88 | 0.088 |
| 200 | 0.0029 | 74 | 0.074 |
| 230 | 0.0024 | 63 | 0.063 |
| 270 | 0.0021 | 53 | 0.053 |
| 325 | 0.0017 | 44 | 0.044 |
| 400 | 0.0015 | 37 | 0.037 |
Parts Name of Sanitary Filter
| 01 | Clamp,Union,Nut |
| 02 | Outlet Assembly |
| 03 | Gasket:Silicone, EPDM, Viton, NBR |
| 04 | Perforated Core |
| 05 | Distributor Core |
| 06 | Filter Body:Short One,Long One |
Advantage of products
| 1. | Each kind of products has strong corrosion resistance and over-long service liftime |
| 2. | Xusheng accessories are easy to be installed |
| 3. | Problem-free welding and assembly and highest possible strenghth |
Applications
Sanitary filter is mainly appled to protect pumps,instruments,and other device to work regularly.It features compact structure,strong filtering ability,less pressure loss,conveninent maintenance,and is widely used in beverage,pharmacy,dairy and other fields.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome to order our products |
FAQ
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
