Stainless Steel 304/316L Sanitary Weld Tank Sight Glass
Model NO. D006001001D
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 5000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material Quality SS304, SS304L ,SS316, SS316L
Availabe Standard SMS,DIN,AAA,Idf,ISO,Rj
Temperature Range -20degree Celsius~135degree Celsius
Seal Material Silicone, EPDM, Viton, NBR
Glass material Heavy Wall Borosilicate Tubing Polycarbonate Tub
Pressure Range 1.5~3bar
TAG Stainless Steel Sanitay Union Type View Sight Glass
Inquiry
Basic Info

    Model NO. : D006001001D

    Structure : Straight Way,Cross

    Availabe Connection : Welding Ends,Triclamp Ends,Union Ends,Male Ends

    Application : Milk,Juice,Beer,Beverage,Pharmacy,Ect

    HS Code : 8481804090

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

Product name:Tank Component Sanitary Stainless Steel Sight Glass

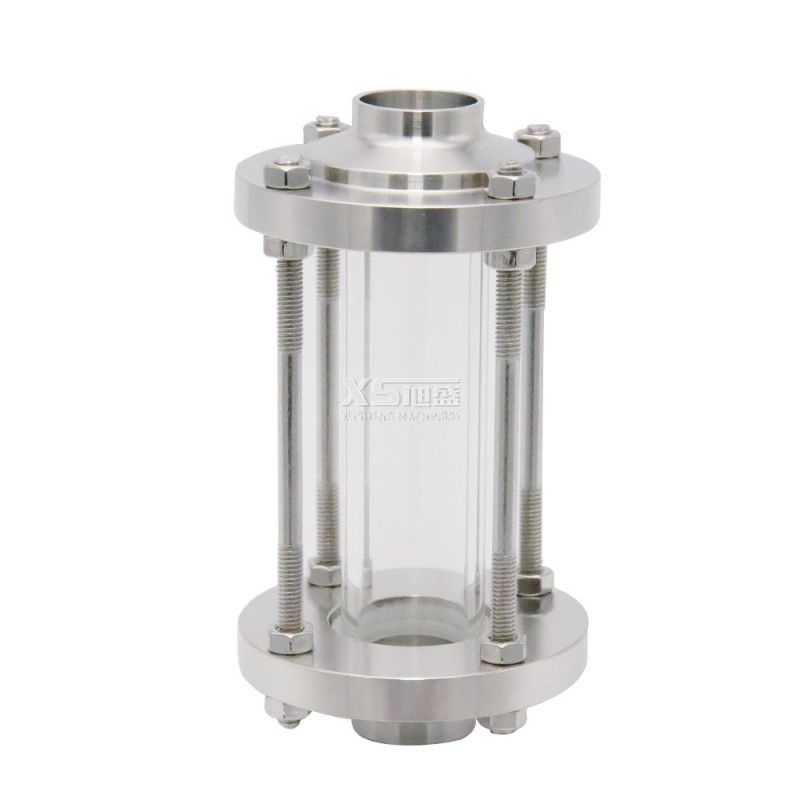

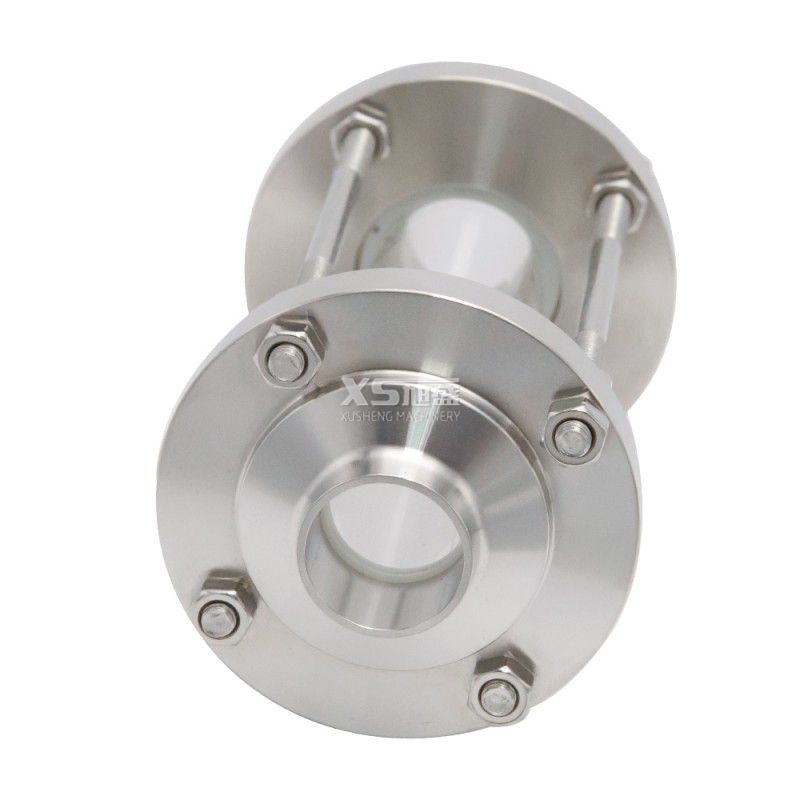

Stainless Steel 304/316L Sanitary Weld Tank Sight Glass
Weld Tank Sight Glass

It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.Sanitary Straight Sight Glass allows observation of fluids in transit through a three-dimensional pipeline





Technical Parameter

Availably standard SMS,DIN,3A,IDF,RJT, BS, ISO
Material Quality SS304,SS304L,SS316,SS316L
Specification DN150
Availabe Connection Welding ends,triclamp ends,union ends,male ends
Seal Material Silicone, EPDM, Viton, NBR
Glass Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan)
Tubing; Acrylic Tubing; etc
Protection Lens Cover  Polycarbonate  Tubing,Acrylic Tubing or Slotted Stainless Steel
Screw Blot Full Stainless Steel
Structure Straight way,cross
Pressure range 0bar~10bar
Machine Processing The most advanced CNC machine from Japan for processing
Continuous working temperature 20°C ~ +135°C (EPDM,Silicone)
Special Design we can produce according to your drawings


Advantage of products

1. Each kind of products has strong corrosion resistance and over-long service liftime
2. Xusheng accessories are easy to be installed
3. Problem-free welding and assembly and highest possible strenghth





Applications

Sanitary Straight Sight Glass is designed for sanitary applications required in the food, dairy, and pharmaceutical industries.

Available Size DN65,DN80,DN100,DN125,DN150
Available Material Ss304, Ss304L ,Ss316, Ss316L
Available Standard SMS,DIN



Performance of Tank Lamp Sight Glass

Operating voltage 12V / 24V / 36V / 220V
Power 20W / 50W / 100W



Features of Tank Lamp Sight Glass

Luminous flux 220 lumens, lamp life: 50,000 hours, do not worry about frequently changing a light bulb, and the 5th battery 14500 lithium battery-powered GM, do not have to worry about power, luminous tail.
Lamp 1W using a bright LED lamp, Taiwan chip, domestic assembly.
Power Using a 5 batteries, power lasting more powerful, it is recommended to use high mAh rechargeable battery, more power, LED lights brighter, while the economic benefits.



Parts Name of Tank Lamp Sight Glass

NO NAME
1 Body
2 High Pressure Glass
3 Male
4 Lock Nut
5 Seal





Product application

Comyany information

Packaging Shipping

Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  to order our products



FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
