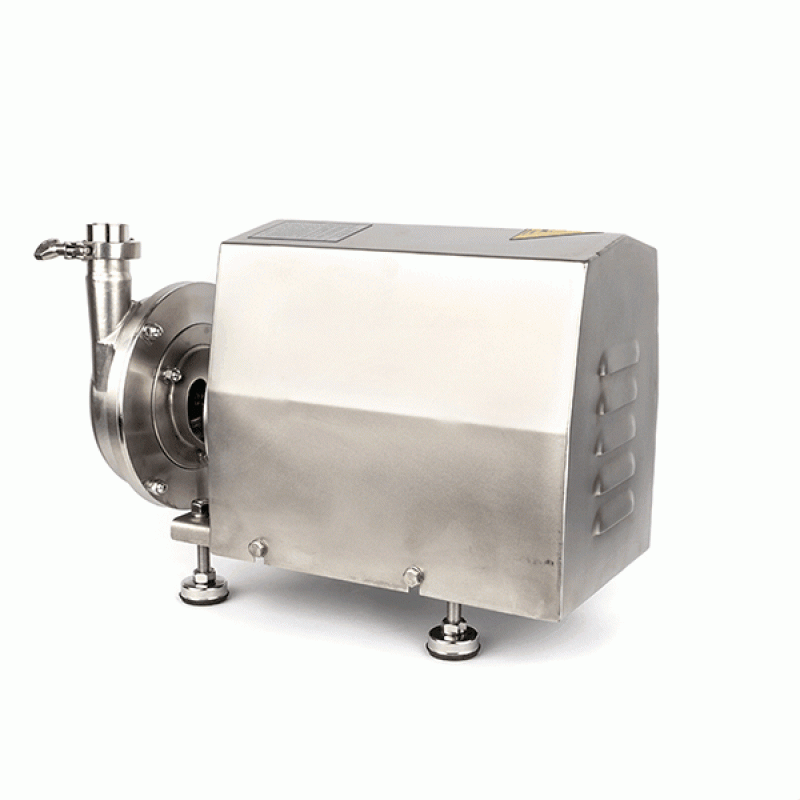

Stainless Steel Ss304 Sanitary Milk Centrifugal Pump with Open Impeller
Model NO. D002001001D
FOB Price US $294-300 / Piece
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 1000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Max.Head 80-110m
Max.Capacity >400 L/min
Driving Type Motor
Impeller Number Single-Stage Pump
Working Pressure Middle Pressure Pump
Influent Type of Impeller Single Suction Pump
TAG Sanitary Dairy Centrifugal Pumps Dairy Centrifugal Pumps Stainless Steel CIP Centrifugal Pump KSCP-80-50 CIP Centrifugal Pump 22KW Hygienic entrifugal Pump Sanitary Hygienic entrifugal Pump CIP Centrifugal Pump
Inquiry
Basic Info

    Model NO. : D002001001D

    Position of Pump Shaft : Vertical Pump

    Pump Casing Combined : Verticaljoint Surface Pump

    Mounting Height : Suction Centrifugal

    Impeller : Open

    Usage : Pump

    Machanical Seal(Standard) : Plumbago&Silicon Carbide

    Capacity : 1.5ton/Hour~200ton/Hour

    Max.Temperature : 120degree Celsius

    Surface Finishing : Inside&Outside Mirror Polished or Sand Blasting Ou

    Connection Ends : Triclover, Butt Weld, Threaded, Union and Flange

    Motor : ABB Motor and China Motor, Siemens

    Voltage : 220V, 380V, 440V, 480V, Ect

    Impeller Type : Closed Impeller, Open Impeller, Semi-Open Type Imp

    Lift : 16mts~40mts

    HS Code : 8413709990

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

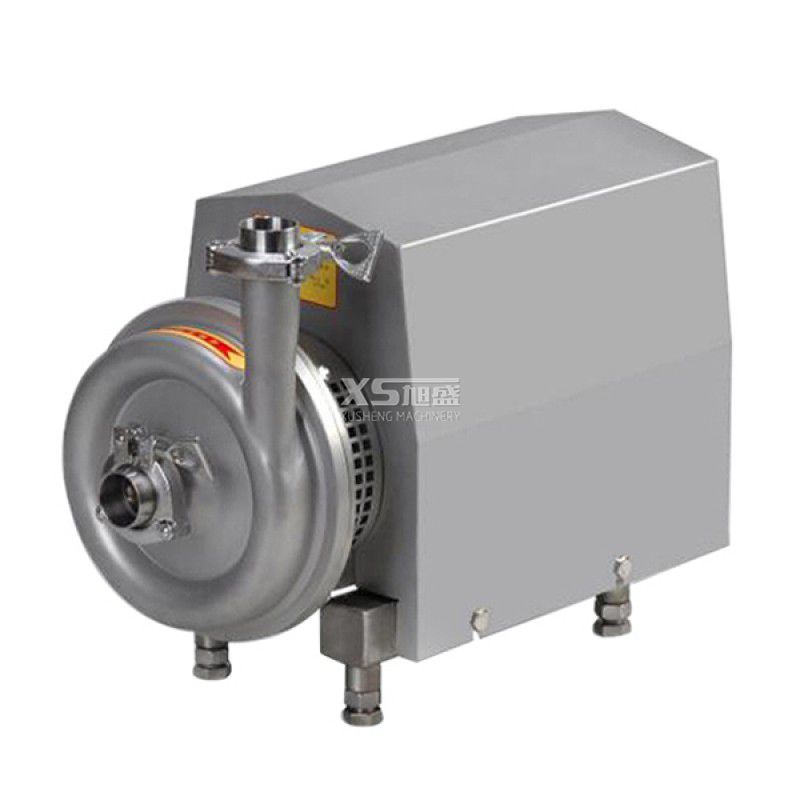

Products Name:Stainlss Steel Sanitary Milk Centrifugal Pump With Closed Impelle

Milk Centrifugal Pump With Closed Impelle
Stainlss Steel Sanitary Milk Centrifugal Pump impelle

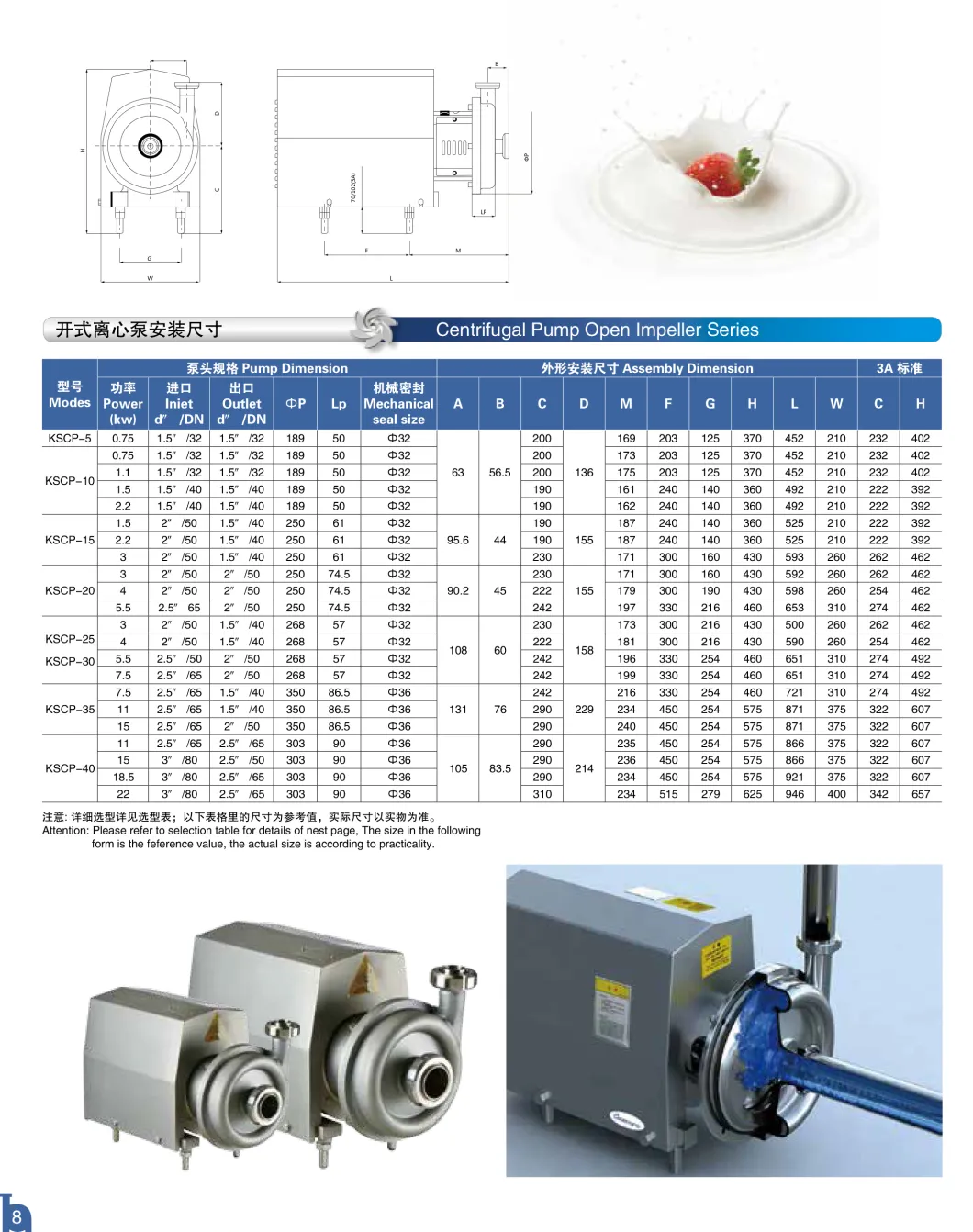

Technical Parameter

Flow Medium Parts AISI304/AISI316L(1.4301/1.4404)
Without Flow Medium Parts AISI304(1.4301)
Outside Surface Semi bright
Inside Surface Polished Ra0.4
Product Wetted Seals EPDM,Silicone,FPM.NBR
Max.Inlet  Pressure 0.5MPA
Temperature Range -10ºC~140ºC
Noise Level(At 1m) 60-80dB(A)
Capacity 1.5~200ton/hour
Motor ABB Motor and China motor,Siemens
Voltage 220V,380V,440V,480V,ect
Impeller Type Closed Impeller,Open Impeller,Semi-Open Type Impeller
Connection ends Triclover,butt weld,threaded,union and flange
Machanical seal(standard) plumbago&silicon carbide

Product application

Applications

Sanitary centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical,food industry, dairy industy.
Sanitary (hygienic )centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical, food industry,dairy industry, winery ,turnkey project .The pumps are made of Stainless steel 316L or SS 304 ,which with a surface polished , can be used to the above industry for sanitary purpose



Comyany information

Packaging Shipping

Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  to order our products
