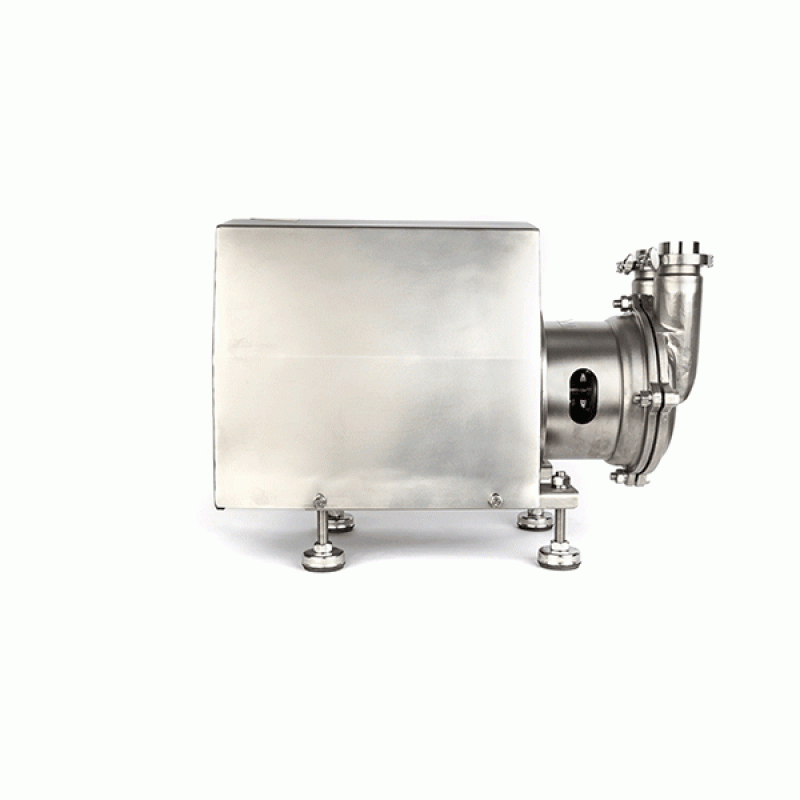

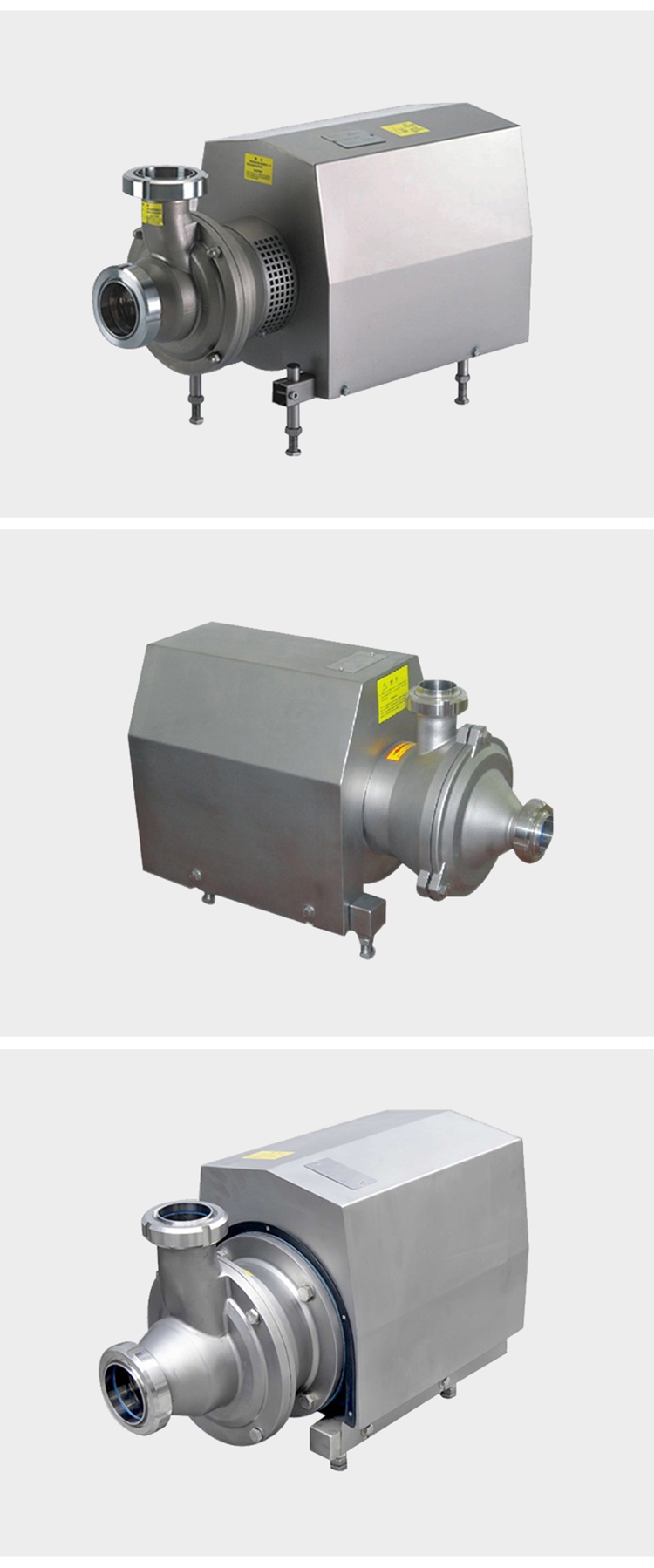

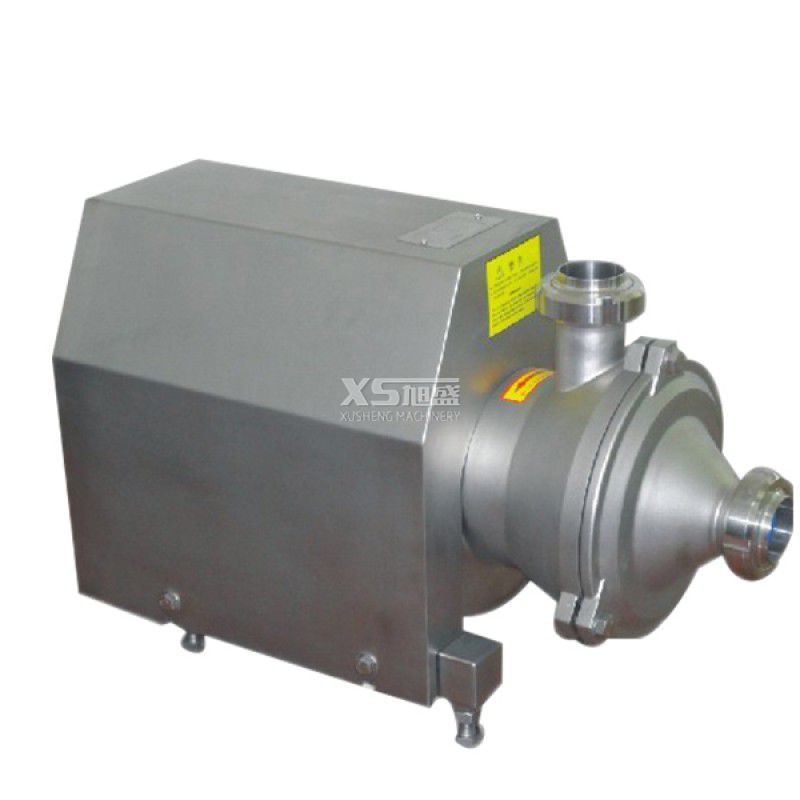

Stainless Steel Sanitary CIP Self-Priming Pump
Model NO. D002004001D
FOB Price US $196-200 / Piece
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 1000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type Self-priming Pump With Inner Recirculation
Air Engine Type Fitted Motor
Theory Gas-hydraulic Hybrid Type
Transmission Direct Connection Transmission
Structure The Slide
Material Stainless Steel AISI316L
TAG Hygienic Electric Liquid CIP Pump Hygienic 304 Stainless Steel Electric Liquid CIP Pump Sanitary Stainless Steel CIP Pump Food Grade Stainless Steel Water CIP Pump Sanitary Stainless Steel Self Suck CIP Pump Hygienic Stainless Steel CIP Pump Hygienic
Basic Info

    Model NO. : D002004001D

    Mechanical Seal(Standard) : Double Mechanical Sealing

    Capacity : 10ton/Hour~30ton/Hour

    Temperature Range : -10 Degree Celsius-140 Degree Celsius

    Surface Finishing : Inside&Outside Mirror Polished or Sand Blasting Ou

    Connection Ends : Triclover, Butt Weld, Threaded, Union and Flange

    Voltage : 220V, 380V, 440V, 480V, Ect

    Impeller Type : Open Impeller, Semi-Open Type Impel

    Power : 2.2kw-7.5kw

    HS Code : 8413709990

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

Products Name:Stainless Steel Sanitary CIP Self-Priming Pump

Milk Centrifugal Pump With Closed Impelle
Stainlss Steel Sanitary Milk Centrifugal Pump impelle

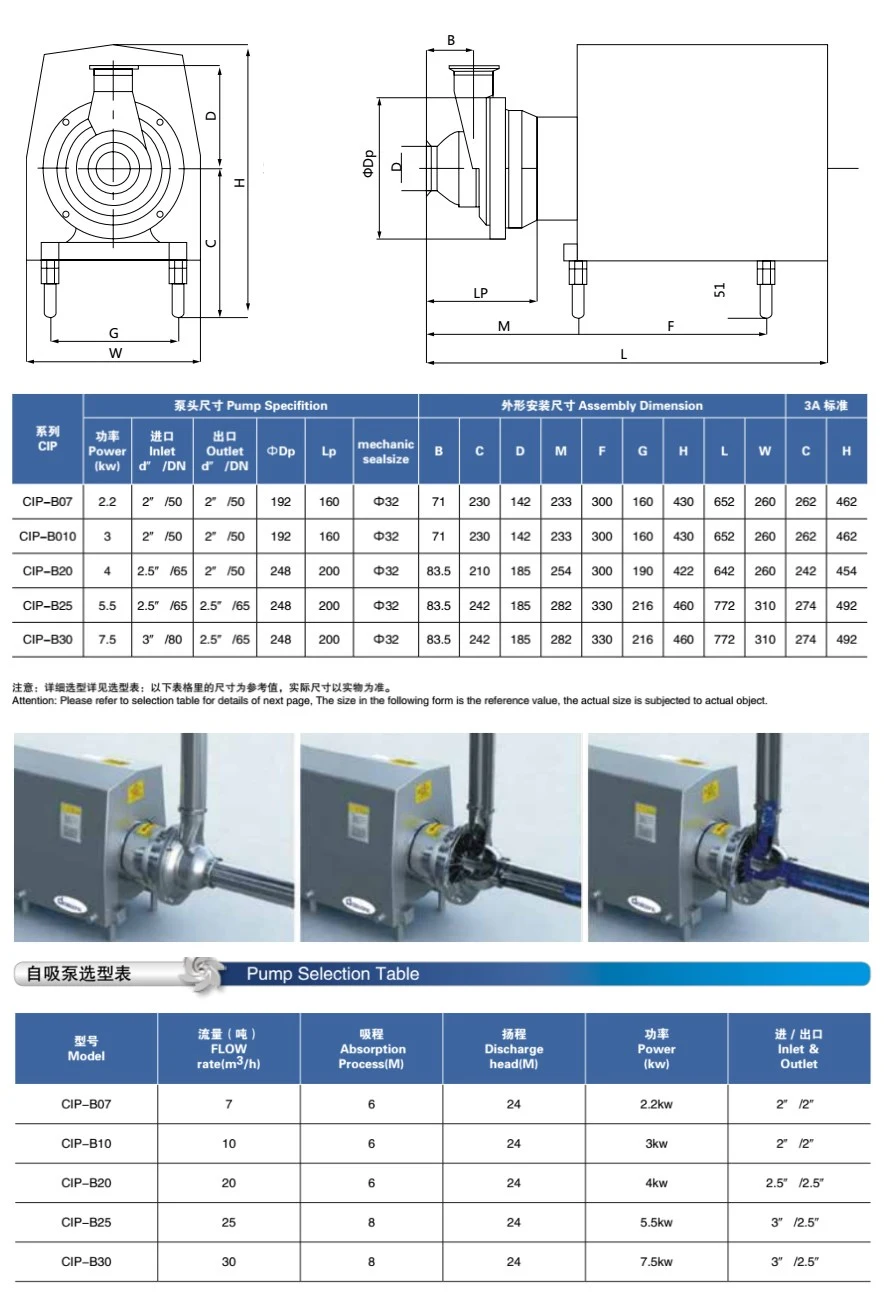

Technical Parameter

Capacity  10T-30T,2.2KW-7.5KW
Material SUS316L
Standard  DIN,SMS
Impeller  Open Impeller
Surface Treatment  Mirror Polished is touch with liquid,and other parts is made of dull polsihed.
Shaft Sealing Sanitary priming pump seal is mechanical seal,include the sanitionary ring ss316L steel embedded in grapgite structure,and the movable ring made of silicon carbide
Temperature Range  -10 degree celsius-140 degree celsius
Flushed Mechanical Seal Water Pressure:Max 0.1Pa
Flow Rate:0.25-0.5L/min
Working Pressure  ≤3KW,220-240V/380v-420V
>3kw,380V-420V/660-690V
Frequency 50HZ/60HZ
Working Method  Continuous(SI)
Rotate Speed The standard rotate speed is 1450r/min
Connection ends  Triclover, Butt Weld, Threaded, Union and Flange



Advantage of Stainless Steel Sanitary CIP Self-Priming Pump

1.Configuration of "ABB" brand three-phase AC motor is in accordance with the international electrotechnical comission IEC60072 standard design comply with European "CE" marking requirements
2.The explosion-proof motor also availabe,that can meet with the requirements of different applications.
3.It with excellent electric performance,and with low noise,low vibration,the protection grade is IP55,insulation grade is F

Product application

Applications

The pump is mainly used to deal with the convey of gas-bearing materials.So it is widely used in the occassions that the liquid level is instable,and the liquid level is lower than that of inlet to draw the material,and also used as reture in the CIP systerm.And it is the necessary convey equipment in the food,chemical,pharmacy fields.



Comyany information

Packaging Shipping

Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  High quality for stainless steel hygienic screw butterfly valves
