Sanitary Stainless Steel Aseptic Flange
Model NO. D012001001D
Min. Order 50 Pieces
Port Ningbo, China
Production Capacity 5000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Standard DIN
Type Welding Flange
Material Stainless Steel
Structure Flanges
Connection Flanged
anufacturing Way MForging
TAG Stainless Steel 304 Sanitary Aseptic Flange Stainless Steel Sanitary Aseptic Flange 304 316L Sanitary Aseptic Flange
Inquiry
Basic Info

    Model NO. : D012001001D

    Material Quality : SS304, SS304L ,SS316, SS316L

    Size : 1"-6",DIN 25-150

    Availabe Model : 13mhh,13mhhm,13mhp,13mhhs

    Temperature Range : -20degree Celsius~135degree Celsius

    Available Type : Single Pin,Double Pin,Three Pieces

    Available Polishing : 180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished

    Pressure Range : 1.5~3bar

    Weight of Clamp : Light One,Weight One

    Pressure Rating : 0-10bar

    HS Code : 7307290000

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

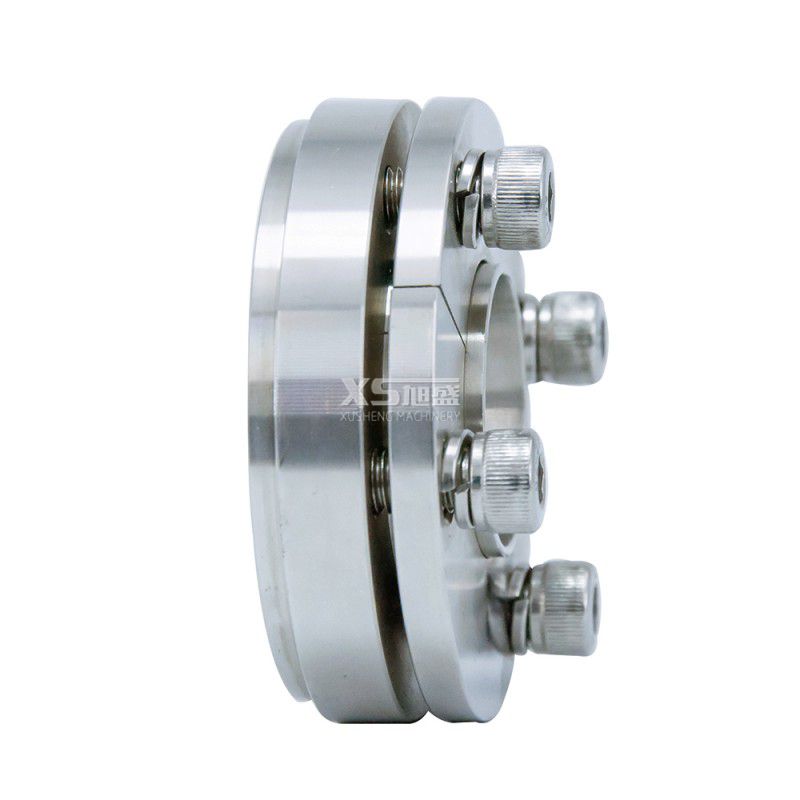

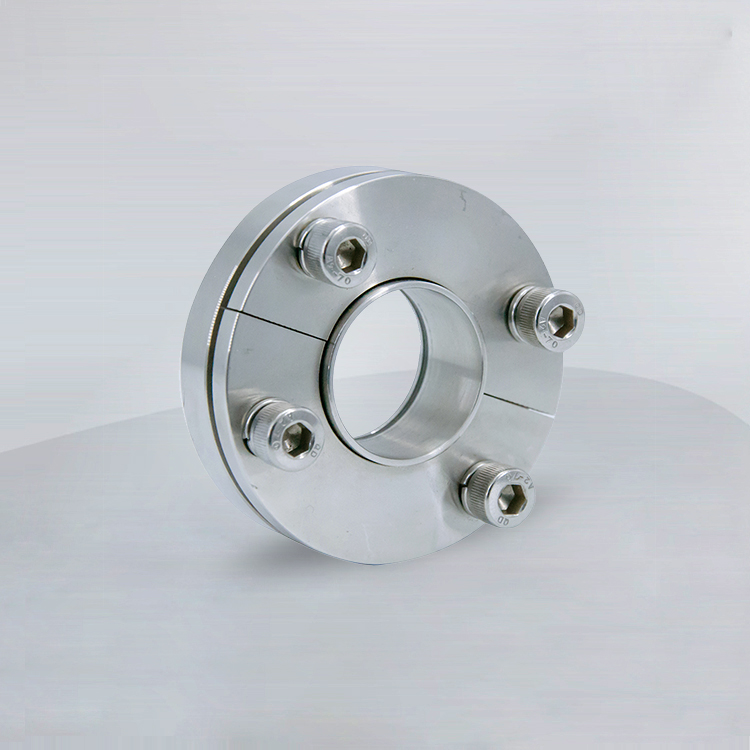

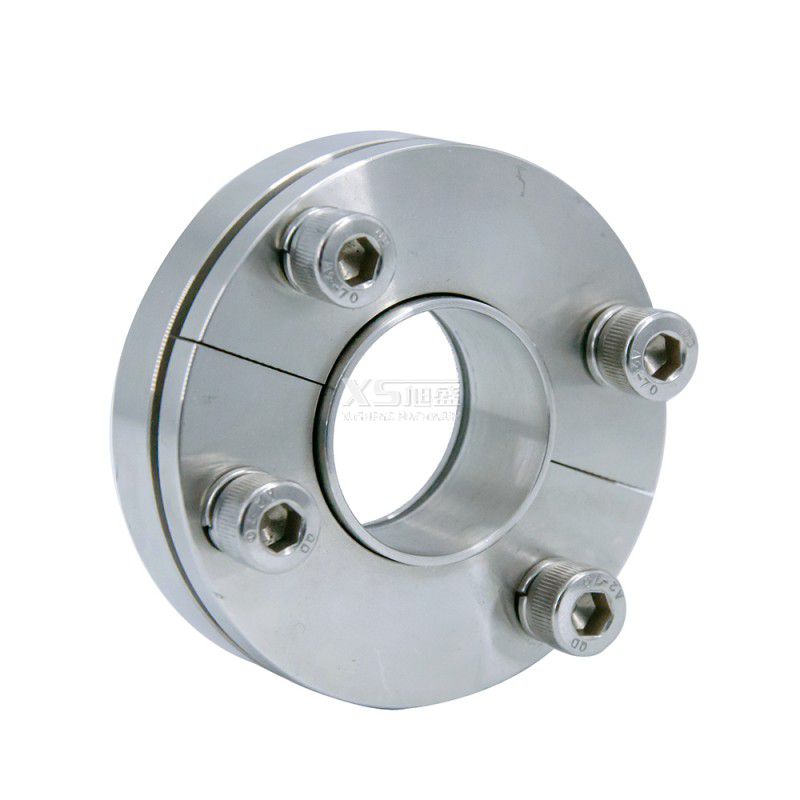

Products Name:Sanitary Stainless Steel Aseptic Flange

stainless steel Aseptic Flange
sus304 sanitation Flange

Technical Parameter

Availably standard SMS,DIN,3A,IDF,RJT, BS, ISO
Material Quality SS304,SS304L,SS316,SS316L
Availabe Connection Welding ends,triclamp ends,union ends,male ends
Available Polishing 180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished
Type of reducer Concentric,Eccentric
Available Thickness 1.5MM,1.65MM,2MM,2.5MM,3MM
Sorts of elbow With/Without straight ends
Temperature Range -20degree Celsius~135degree Celsius
Pressure range 0bar~10bar
Inside and outside(mirror finish) RA ≤ 0.8um
Inside(mirror finish) and outside(matt finish) RA ≤ 0.8um
Inside and outside Electrolytic polishing RA ≤ 0.8um
DIN Specifcation DN20>DN15
DN25>DN20
DN32>DN20
DN32>DN25
DN40>DN20
DN40>DN32
DN50>DN25
DN50>DN32
DN50>DN40
DN65>DN25
DN65>DN32
DN65>DN40
DN65>DN50
DN80>DN40
DN80>DN50
DN80>DN65
DN100>DN50
DN100>DN65
DN100>DN80
SMS Specificaion 1 1/2">1"
2">1"
2">1 1/2"
2 1/2">2"
3">2"
3">2 1/2"
4">2"
4">2 1/2"
4">3"



Product application

Advantage of Union

(1)It is suitable for flexible and easy maintenance.
(2)It is especially suited for processes where the load on seals is extra high, where easy control and replacement of seals is necessary and where optimal cleaning is required.In order to sustain high quality, it is importance that the products are uniform. Therefore tolerance and thickness are carefully controlled.



Applications

Quality and use of sanitary grade Stainless Steel Sanitary Aseptic Flange : The products are treated with high-grade polishing equipment inside and outside to meet the requirements of surface precision; this product is suitable for stainless steel pipe system in dairy, food, beer, beverage, pharmaceutical, cosmetics and other industries







Comyany information

Packaging Shipping



Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  High quality for stainless steel hygienic screw butterfly valves



Advantages

Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 0086-0577-85829985,Working Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
Process Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
                    a We will dispatch our Quality and Problems Appraisers to make a confirmation
                    b Have a negotiation of the compensation and sign agreements
                    c Our After-Sales Department will perform the duties as the agreements
