• Stainless Steel Sanitary Negative Pressure Pump
Stainless Steel Sanitary Negative Pressure Pump
Model NO. D002005001D
FOB Price US $6.52-7.25 / Piece
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 1000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material Stainless Steel AISI304, AISI316L
Machanical Seal(Standard) Double Machanical Sealing
Capacity 3ton/Hour~180ton/Hour
Temperature Range -10 Degree Celsius-140 Degree Celsius
Surface Finishing Inside&Outside Mirror Polished or Sand Blasting Ou
Connection Ends Triclover, Butt Weld, Threaded, Union and Flange
TAG Stainless Steel Sanitary Negative Pressure Pump
Basic Info

    Model NO. : D002005001D

    Motor : ABB Motor and China Motor, Siemens

    Voltage : 220V, 380V, 440V, 480V, Ect

    Impeller Type : Closed Impeller, Open Impeller, Semi-Open Type Impel

    Temperature Range : -10 Degree Celsius-140 Degree Celsius

    Power : 0.75kw-75kw

    HS Code : 8413709990

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

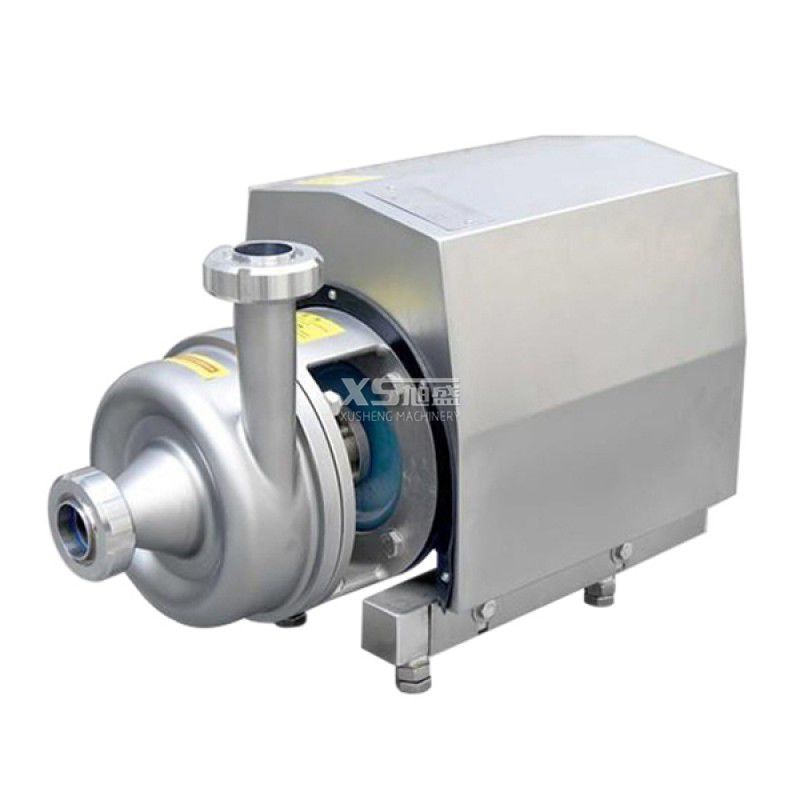

Products Name:Stainless Steel Sanitary Negative Pressure Pump

Negative Pressure Pump With Closed Impelle
Stainlss Steel Sanitary Negative Pressure Pump



Advantage of Pump Stainless Steel Sanitary Negative Pressure Pump

1.Configuration of "ABB“ brand three-phase AC motor is in accordance with the international electrotechnical comission IEC60072 standard design comply with European "CE" marking requirements
2.The explosion-proof motor also availabe,that can meet with the requirements of different applications.
3.It with excellent electric performance,and with low noise,low vibration,the protection grade is IP55,insulation grade is F

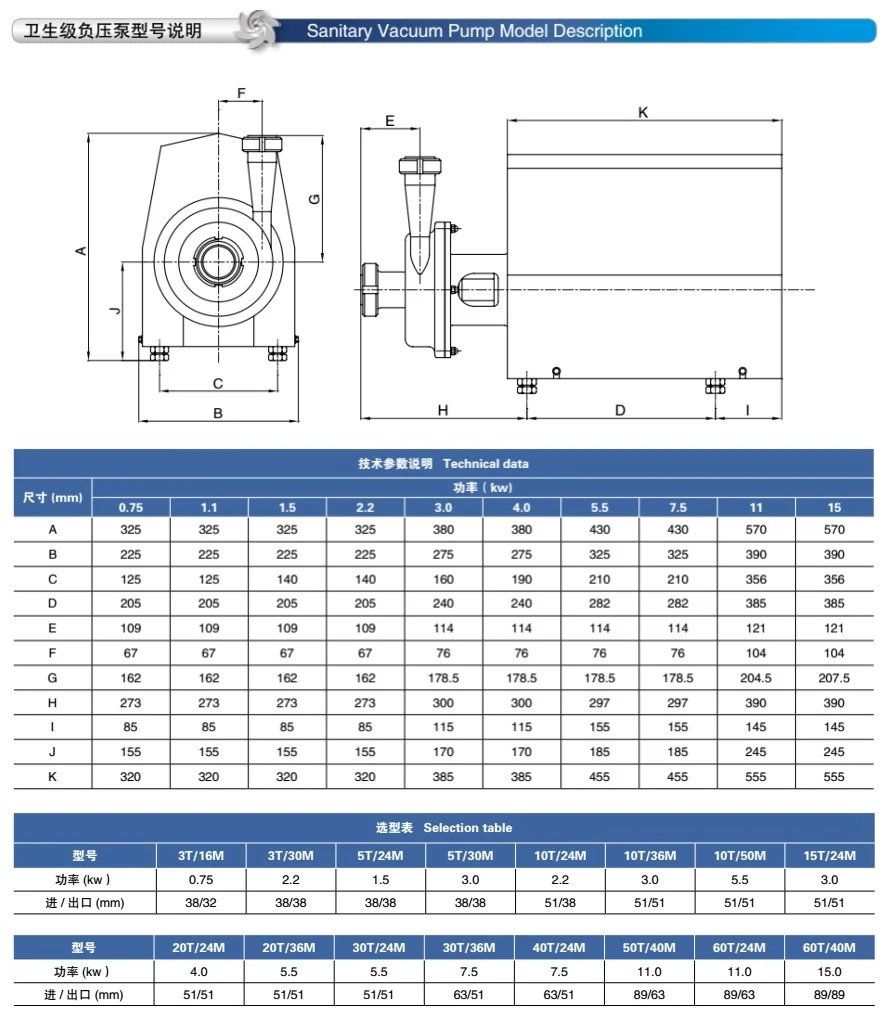

Technical Parameter

Capacity  3T-180T,0.75KW-75KW
Material SUS304,SUS316L
Standard  DIN,SMS
Impeller  Closed Impeller,Open Impeller,Semi-Open Type Impeller
Surface Treatment  The parts contacts with medium is polished
Working Condition  Sanitary centrifugal pumps is a high and low level transmission,as well as the level transmission,and has a amount of suction
Temperature Range  -10 degree celsius-140 degree celsius
Washable Mechanical Sealing  Water Pressure:Max 0.1Pa
Flow Rate:0.25-0.5L/min
Working Pressure  ≤3KW,220-240V/380v-420V
Frequency 50HZ/60HZ
Working Method  Continuous(SI)
Rotate Speed The standard rotate speed is 2900r/min-3500r/min
Connection ends  Triclover, Butt Weld, Threaded, Union and Flange





Belong to a turbine the diversion Negative Pressure Pump can extract the liquid of the vacuum tank under the pressure of negative pressure 0.09Mpa.


Packaging Shipping

Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  to order our products



Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
