Model NO. : D001012001D

Situation : Industrial

Service Life : >3 Years

Available Connection : Thread, Clamp, Flange, NPT, Bsp, etc.

Body Material : Ss304, Ss316L

Working Pressure : 0-8bar, 10bar (Optional)

Working Temperature : -20- 120centigrade, 180 Centigrade (Optional)

O-Ring : EPDM

Seal of Stem and Body : PTFE

Driving Mode : Pneumatic, Manual

Enviroment Temperature : -10 to 60 Degree Celsius

Applicable Medium : Water,Liquid ,Natural Gas ,Water Steam, etc.

HS Code : 8481804090

Trademark : XUSHENG

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

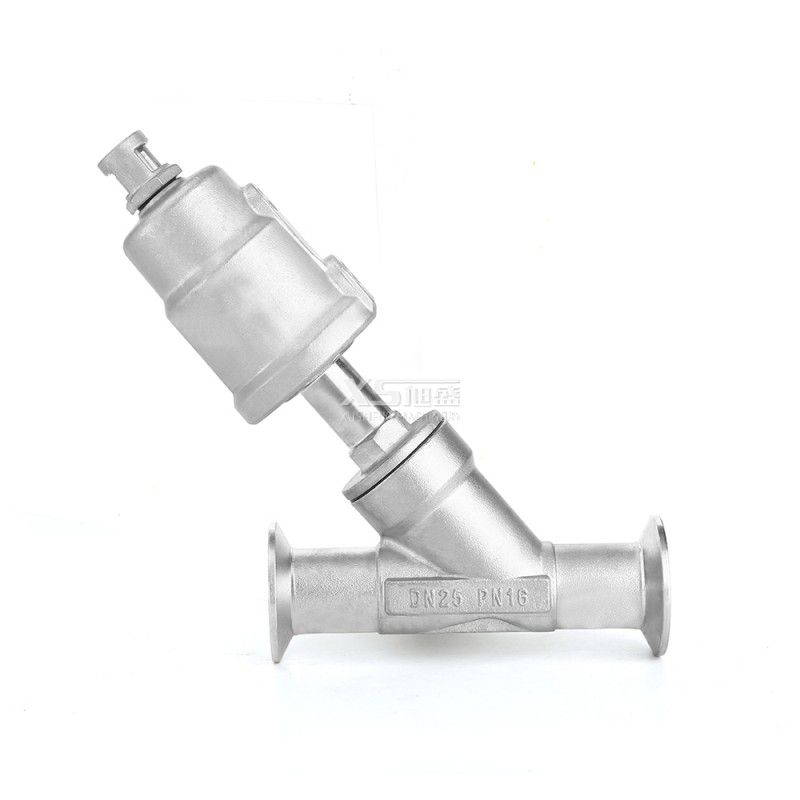

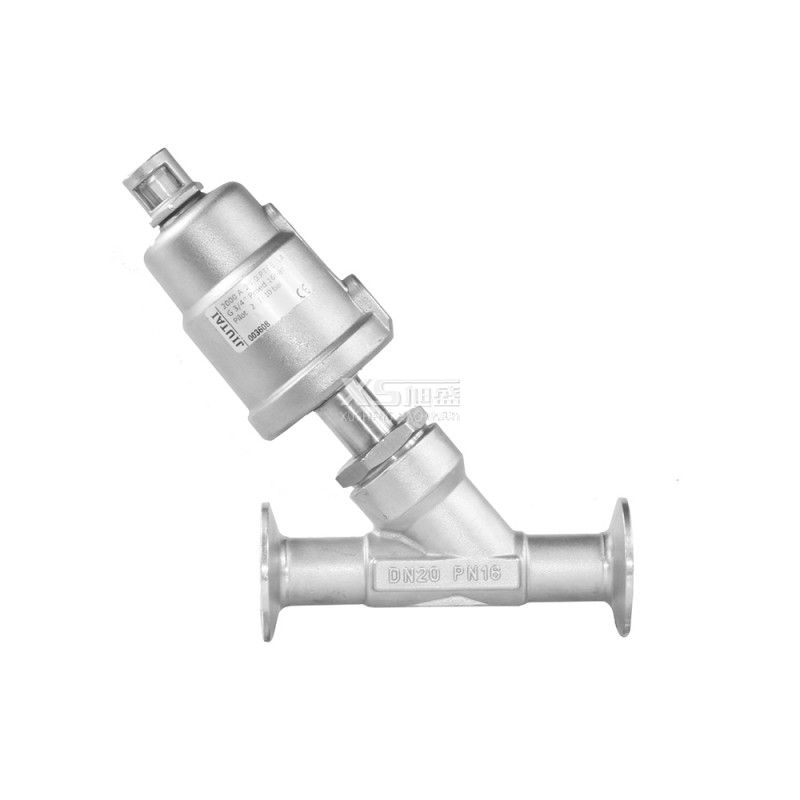

Product name:Pneumatical Clamp Angle Seat Valve With Stainless Steel Actuator

Stainless Steel Clamp Angle Seat Valve With Stainless Steel Actuator
Hygienic Angle Seat Valve With Stainless Steel Actuator

Technical Parameter

Function

Angle seat valve keep the flow speed and can save the space, it adopt oriented angle seat valve which have spring safety protective single function pneumatic actuator for operated.
When use, should choose normally open or close. The product is made of steel and PTFE, it can use to the majority gas, fluid, steam and causticity occasion. It have radiator to the actuator, ensure can use longer.

Feature

1. It have valve open or close position display.
2. Pneumatic guide outside, can prolong the service life, maintenance free.
3. IT have self-regulation sealing gland between overfall and slider, can improve sealing property.
4. The structure of angel seat valve body, can achievable mass flow(especially compare with normal stop valve), compact structure response is fast.

产品应用

控制气体：中性气体、空气控制液、自动化工业控制液、食品乳品工业、生活用水、常用管道流体介质等。角座阀广泛应用于短时间频繁启动，具有响应灵敏、动作准确等特点
