4"Sanitary Detect Tri Clamp Green VITON Sealing Ring
Model NO. D011001003002D
FOB Price US $0.01-0.01 / Piece
Min. Order 10 Pieces
Port Ningbo, China
Production Capacity 10000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material Silicone,EPDM,VITON,BUNA,PTFE
Application Tri Clamp Ferrule
Type Food Grade Seal
Performance Withstand High Acid and Alkali
Shape O-Ring
Standard Standard, Nonstandard
TAG Food Grade Triclamp EPDM Gasket Stainless Steel 100mesh Screen Sanitary EPDM Gasket for Triclamp Ferrule Food Grade Triclamp EPDM Gasket High Quality Food Grade for FKM Gasket with Detect Gray Color
Inquiry
Basic Info

    Model NO. : D011001003002D

    Size : 1/2"-12",Dn10-Dn300,12.7mm-304.8mm

    Temperature Range : -55celsius Degree~250 Celsius Degree

    Availabe Standard : SMS,DIN,3A,Idf,ISO

    EPDM Gasket : Withstand High Acid and Alkali

    Availabe Color : White,Black,Blue,Grey,Ect

    Application Range : Milk,Juice,Beer,Pharmacy,Dairy,Ect

    Pressure Range : 0-10bar,0MPa-1.0MPa

    Type of Sealing Ring : Tri Clamp Ferrule,Butterfly Valve,Union

    Type of Mesh Stainless Steel : 30mesh,40mesh,50mesh,60mesh,80mesh,100mesh,120mesh

    HS Code : 40169310

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

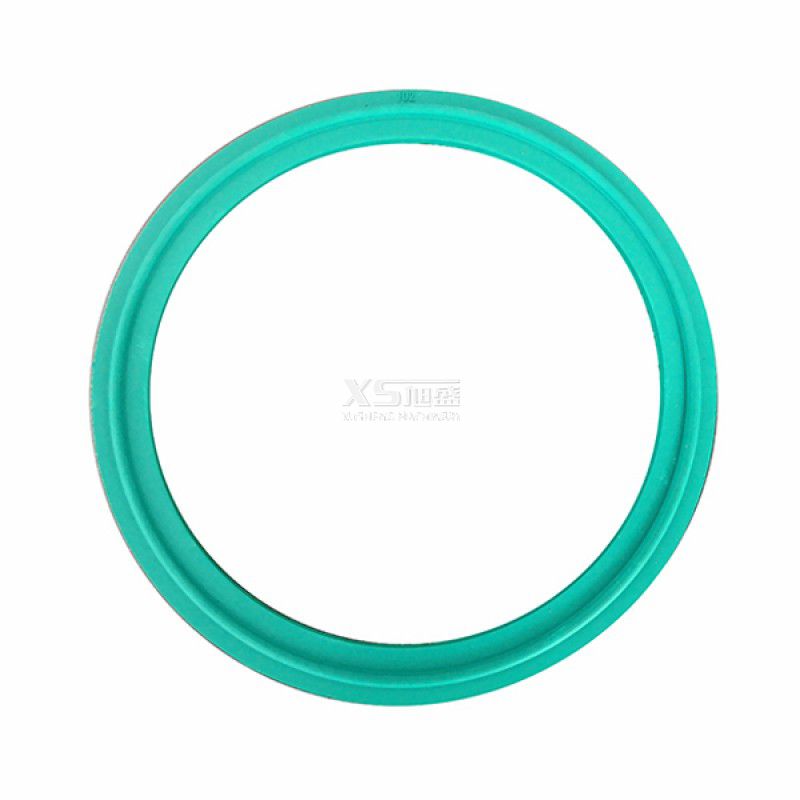

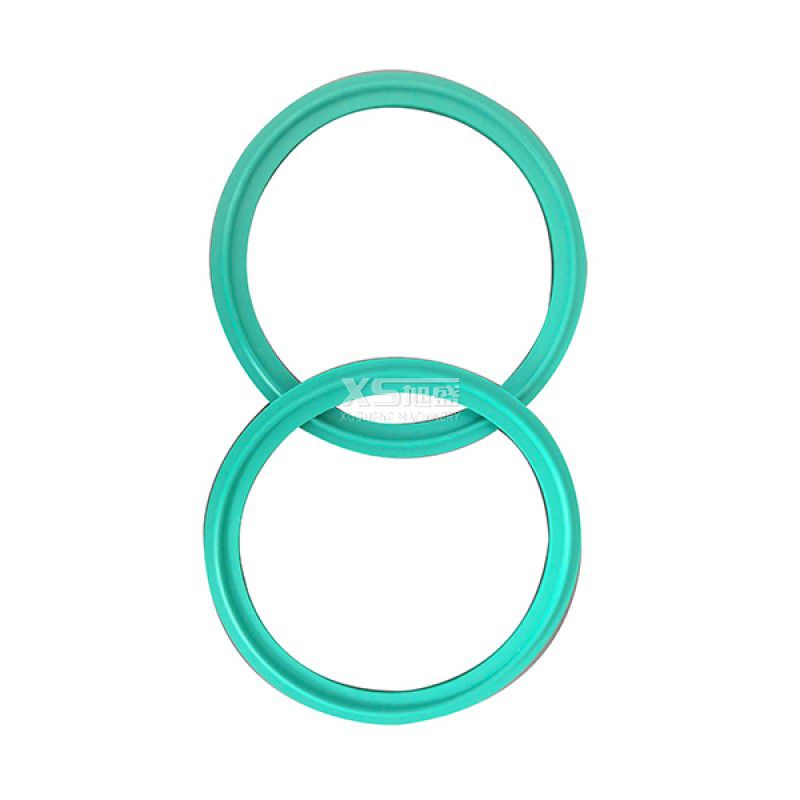

Product name:4"Sanitary Detect Tri Clamp Green VITON Sealing Ring

Stainless Steel Tri Clamp Green VITON Sealing Ring
Hygienic Tri Clamp Green VITON Sealing Ring



Technical Parameter

· Material   Viton
· Screen mesh:  10, 20, 40, 60, 80, 100, 120, 150, 200, 300, 400 mesh and so on
· Size:   1/2"-12" /DN15-DN300
· Gasket: SMS,DIN,3A,IDF,ISO,RJT
· MOQ:

50pcs each size


The Funtions for Sanitary Silicone Gasket

1. Has excellent heat resistance,cold resistance,ozone resistance,aging resistance
2. Has very good insulation performance
3. The tensile strength is poor and it is not resistant to oil.
4. -55Celsius Degree~250 Celsius Degree



The Function for Sanitary EPDM Gasket

1. Has good weather resistance, ozone resistance,water resistance and chemical resistance
2. Used for high temperature water vapor seal
3. -55Celsius Degree~150Celsius Degree



The Function for Sanitary VITON Gasket

1. High temperature resistance than silicone rubber, has excellent weather resistance, ozone resistance and chemical resistance
2. For most oil and solvent resistance
3. -20Celsius Degree~250Celsius Degree



The Function for Sanitary NBR Gasket

1. Suitable for oil system hydraulic oil, glycol system of hydraulic oil, two ester series lubricating oil, gasoline, water, silicone grease, silicone oil and other media use
2. The most widely used, the lowest cost of rubber seals
3. -40Celsius Degree~120Celsius Degree



Sealing ring also pays attention to the following conditions

1. Flexibility and elasticity
2. Appropriate mechanical strength, including tensile strength, elongation and tensile strength etc.
3. Stable performance, easy to swelling in the medium, heat shrinkage (Joule effect) small
4. Easy processing, and can keep the precision dimension
5. No corrosion no pollution to medium contact surface, etc.



Advantage of Sanitary Gasket

1. The sealing ring in the work pressure and temperature range, good sealing performance, and with the increase of pressure can improve the sealing performance
2. The friction between the sealing ring and the moving parts of the device must be small, stable friction coefficient
3. The corrosion resistance of the sealing ring is strong, not easy to aging, long service life, good resistance to abrasion, wear can automatically compensate to some extent
4. Has the advantages of simple structure, convenient use and maintenance, the sealing ring has a longer life





Applications

It is used for food,beverage,pharmacy,chemical,dairy,cosmetics etc industries.



Product application

Comyany information

Packaging Shipping

Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  to order our products



FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
