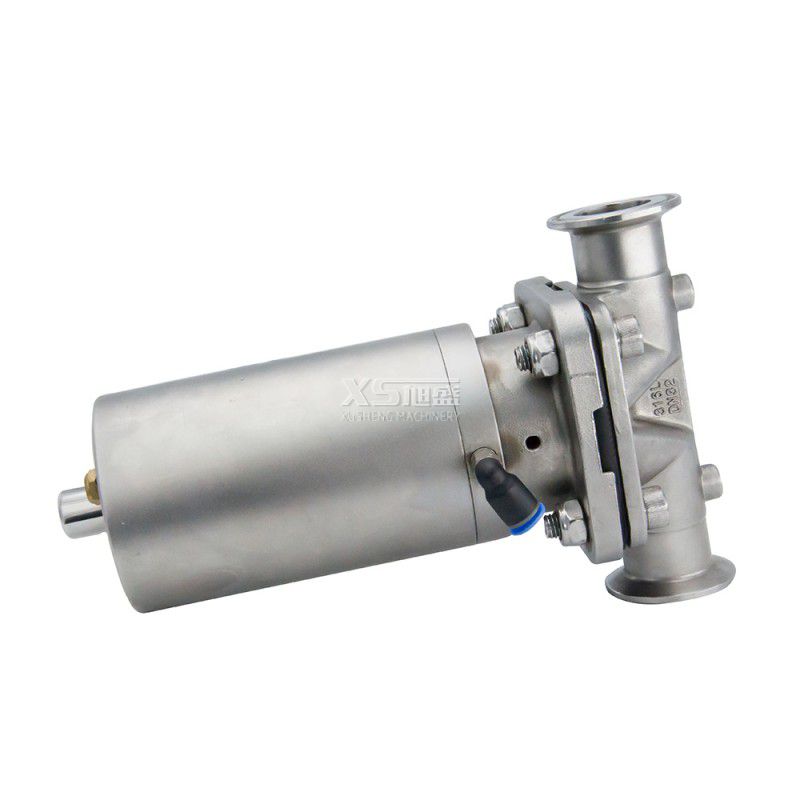

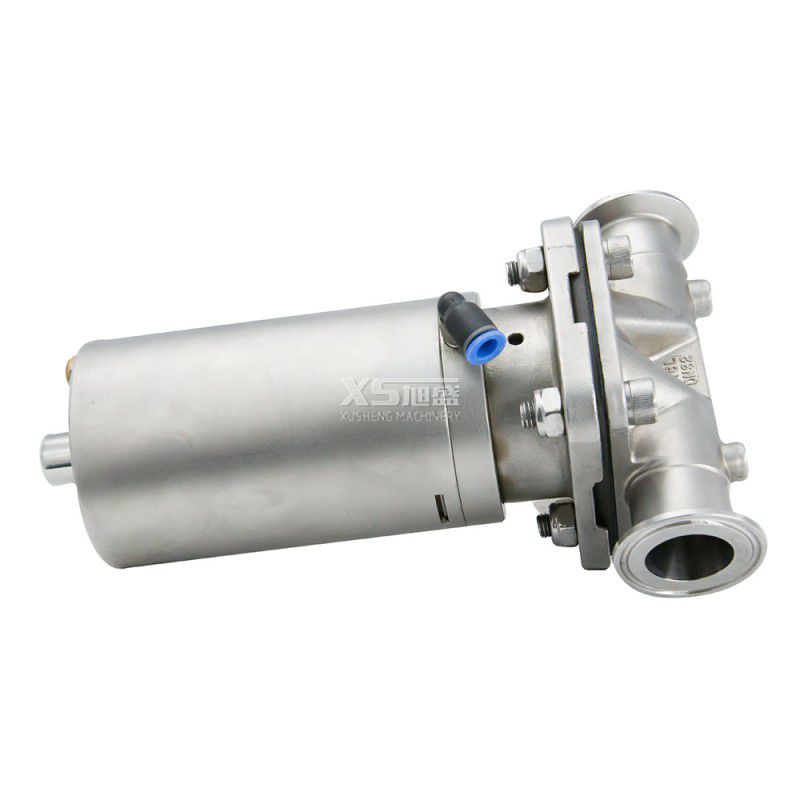

SS316L Clamping Diaphragm Valves with Stainless Steel Pneumatic Head
Model NO. D001004002001D
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 3000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Actuator Pneumatic
Connection Threaded Triclamp, Welded
Material Stainless Steel
Structure Through Way Diaphragm Valve
Pressure Ordinary Pressure
Flow Direction Unidirection
TAG Sanitary Pneumatic Actuator diaphragm Valve Hygienic Pneumatic Actuator Straight Diaphragm Valve Pneumatic Diaphragm Valve
Inquiry
Basic Info

    Model NO. : D001004002001D

    Function : Solenoid Valve, Electronic Type, Intelligent Type, Field Bus, Manual Type

    Usage : Flow Control

    Standard : DIN, GB, ANSI, BSW, JIS

    Valve Body Material : Ss316L

    Availably Standard : 3A/Bpe/DIN/ISO/Idf/SMS

    Seal Material : PTFE + EPDM (Double Layer) / EPDM / Silicon / FPM

    Availably Size : 1"-3", Dn20-Dn65

    Availably Connection : Clamp/Weld/Thread/Special Connection

    Operated : Manual, Pneumatic for Pulse Jet Diaphragm Valve

    Availably Structure : Straight, Tee, U-Type, Tank Bottom

    Max. Working Pressure : 10bar

    Max. Working Temperature : 120 Degree C

    Application Scope : Dairy, Food, Beverage, Pharmacy, Cosmetic, etc

    HS Code : 8481804090

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

Products Name: SS316L Clamping Diaphragm Valves with Stainless Steel Pneumatic Head

Diaphragm Membrane Valve
Pneumatic Diaphragm Valve



Technical Parameter

Valve Body Material SS316L
Availably standard 3A/BPE/DIN/ISO/IDF/SMS
Availably  size 1"-3",DN20-DN65
Seal Material PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Availably connection Clamp/weld/thread/special connection
Operated Manual,Pneumatic
Max. Working Pressure 10Bar
Availably structure Straight, tee, U-type, tank bottom
Max. Working Temperature 120 degree C
Application scope Dairy,food, beverage, pharmacy, cosmetic, etc



Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.



Diaphragm seals the valve body and seat.The is no way to contact the environment.So this valve is suitable for asepsis process.When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.



Packaging Shipping

Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  to order our products



FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
