Model NO. : D001004002002D

Function : Solenoid Valve, Electronic Type, Intelligent Type, Field Bus, Manual Type

Usage : Flow Control

Standard : DIN, GB, ANSI, BSW, JIS

Valve Body Material : Ss316L

Availably Standard : 3A/Bpe/DIN/ISO/Idf/SMS

Seal Material : PTFE + EPDM (Double Layer) / EPDM / Silicon / FPM

Availably Size : 1"-3", Dn20-Dn65

Availably Connection : Clamp/Weld/Thread/Special Connection

Operated : Manual, Pneumatic for Pulse Jet Diaphragm Valve

Availably Structure : Straight, Tee, U-Type, Tank Bottom

Max. Working Pressure : 10bar

Max. Working Temperature : 120 Degree C

Application Scope : Dairy, Food, Beverage, Pharmacy, Cosmetic, etc

HS Code : 8481804090

Trademark : XUSHENG

Specification : ISO, 3A, SGS

Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

Origin : Wenzhou City, China

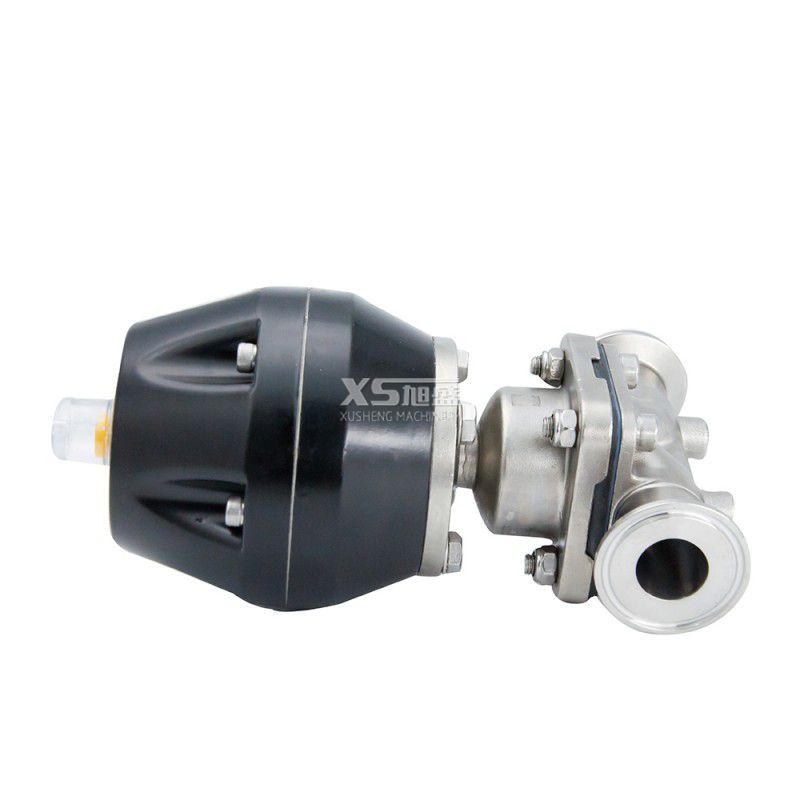

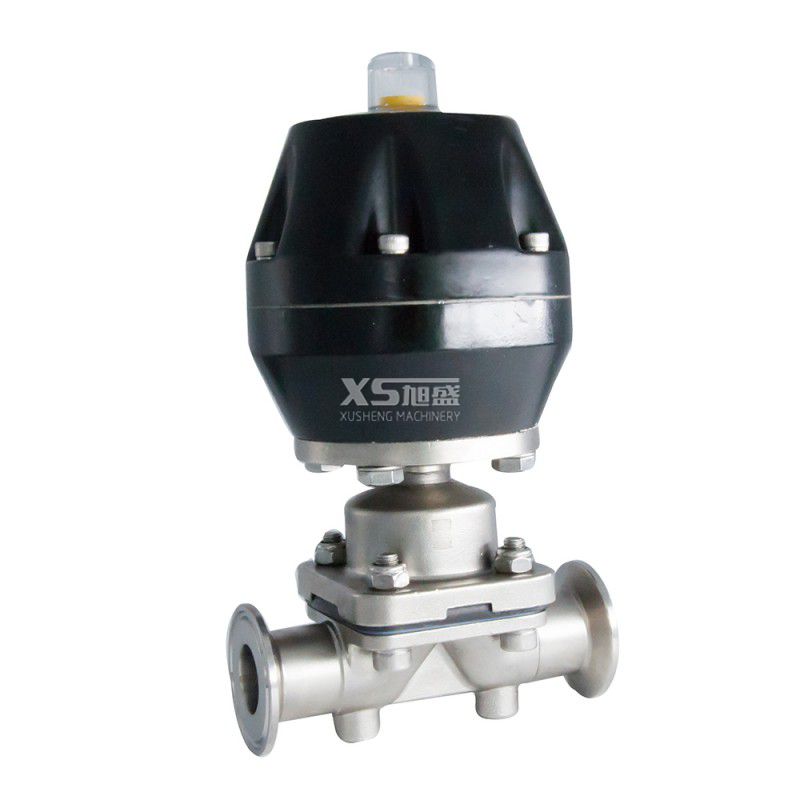

Products Name:Stainless Steel SS316L Pneumatic Diaphragm Valve with Plastic Actuator

Pneumatic Diaphragm Valve with Plastic Actuator
Stainless Steel SS316L Pneumatic Diaphragm Valve

Technical Parameter

Applications

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

Diaphragm seals the valve body and seat.The is no way to contact the environment.So this valve is suitable for asepsis process.When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.

Our Service

FAQ

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.

Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.

Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
