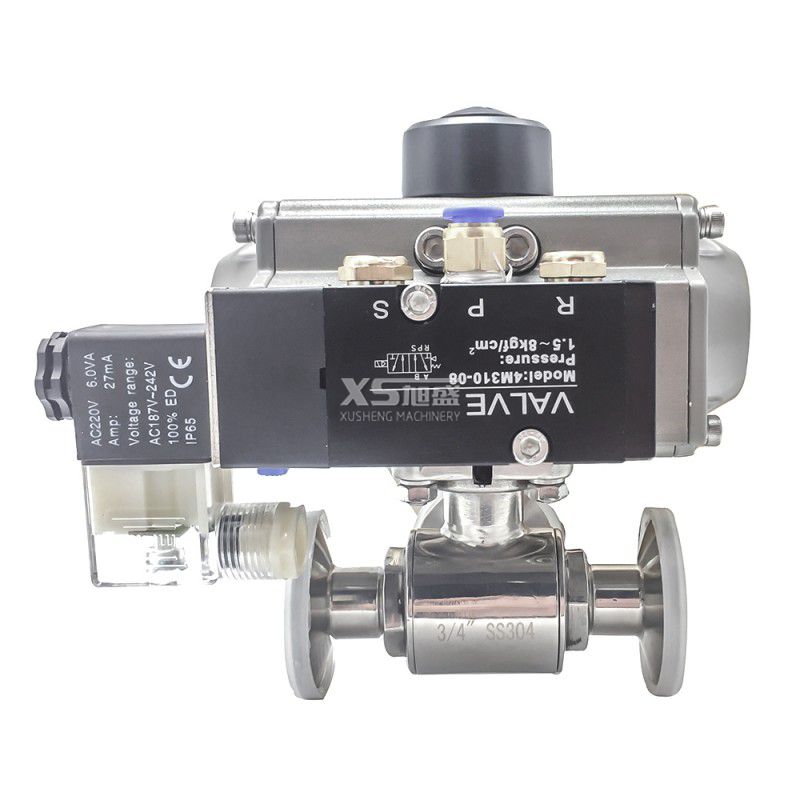

Sanitary Three Ways Tri Clamp Ball Valves with Pnumatic Actuator and Solenoid Valve
Model NO. D001006003001D
Min. Order 1 Piece
Port Ningbo, China
Production Capacity 5000sets/Month
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material Stainless Steel
Connection Form Weld Male Clamp Flange thread
Driving Mode Pnumatic
Nominal Pressure 0~10bar ,0~0.1MPa
Channel Straight Through Type
Structure Flexible Ball Valve
TAG SS304 SS316L Electial Ball Valve
Inquiry
Basic Info

    Model NO. : D001006003001D

    Type : Flexible Ball Valve

    Function : Bypass-Valve

    Temperature : Normal Temperature

    Application : Milk,Juice

    Material Quality : SS304,SS316L

    Available Standard : ISO, DIN, 3A,SMS etc

    Size : Dn25-100 & 1"-4"

    Connection : Welded, Clamped, Threaded, Flanged

    Working Principal : Manual Operation or Driving Device Operation

    Body Construction : 3-Piece Precision Cast Body

    Flow Pattern : Straight

    Seat Material : PTFE, PCTFE, Peek or Upon Your Request

    Working Pressure : 8bar,0.08MPa

    Temperature Range : -20degree Celsius~135degree Celsius

    HS Code : 8481804090

    Trademark : XUSHENG

    Specification : ISO, 3A, SGS

    Transport Package : Shrink Wrap-Carton Case-Exporting Plywood Case

    Origin : Wenzhou City, China

Product Description

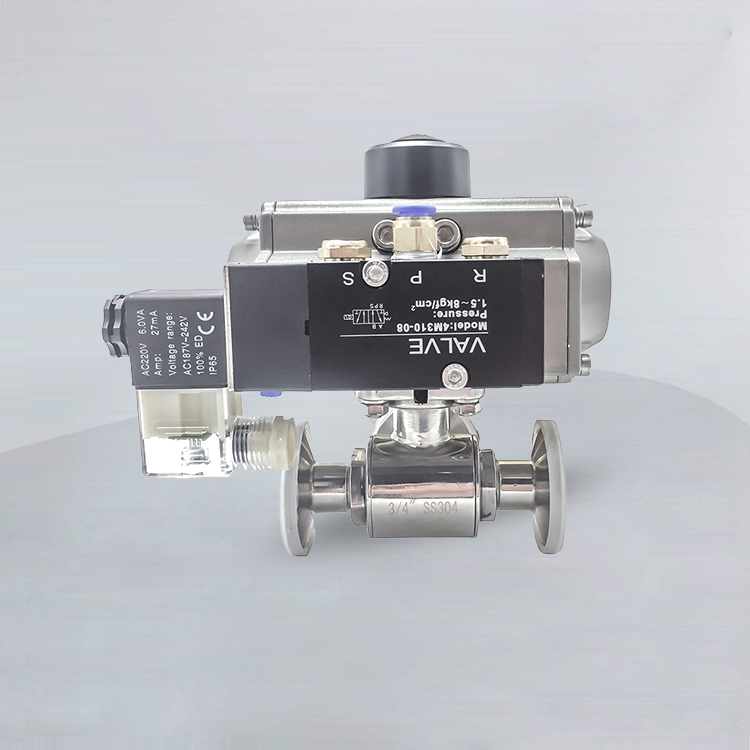

Sanitary Three Ways Tri Clamp Ball Valves with Pnumatic Actuator and Solenoid Valve

Ball Valves with Pnumatic Actuator and Solenoid Valve
Sanitary Three Ways Tri Clamp Ball Valves



Technical Parameter

Material AISI304 AISI316L
Specification DN25-100 & 1"-4"
Standard ISO, DIN, 3A,SMS etc
Connection Welded, Clamped, Threaded, Flanged
Working Principal manual operation or driving device operation
Flow pattern straight
Seat material PTFE, PCTFE, PEEK or upon your request
Orifice size 2mm to 4.8mm
Body construction 3-piece precision cast body
Temperature -20degree celsius~135degree celsius

Product application



Applications

Sanitary three piece ball valve is widely applied to pipeline and equipment control.It is widely used in brewing industry.

Comyany information

Packaging Shipping

Our Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome  to order our products
